1SDA100774R1
ABB
1

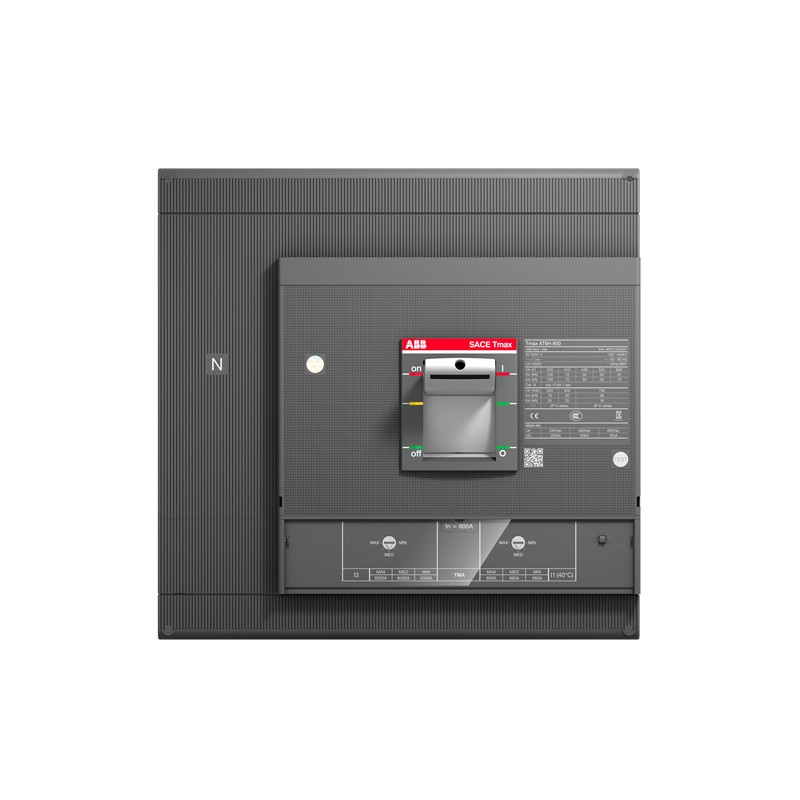

C.BREAKER TMAX XT6H 800 FIXED FOUR-POLE WITH FRONT TERMINALS AND THERMOMAGNETIC RELEASE TMA R 800 I3=4000...8000 A NEUTRAL = 50% PHASES
Molded case "Isomax-Tmax"
* Brand new product in its original packaging covered by the warranties and certifications provided by ABB
Thank you for your interest in our products; we hope the delivery time indicated is to your convenience.
While the order is being processed you can select the type of shipment that best suits your needs: 24-hour air express, standard 48-72 hour land, etc.
b'

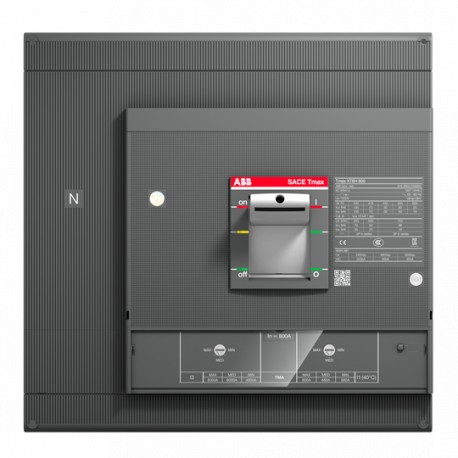

XT6H 800 TMA 800-8000 4p F F InN=50%In
1SDA100774R1
8056221008280
XT6H 800 TMA 800-8000 4p F F InN=50%In
C.BREAKER TMAX XT6H 800 FIXED FOUR-POLE WITH FRONT TERMINALS AND THERMOMAGNETIC RELEASE TMA R 800 I3=4000...8000 A NEUTRAL = 50% PHASES
8056221008280
1 piece
85362090
280 mm
268 mm
103.5 mm
12 kg
1 piece
305 mm
285 mm
370 mm
14 kg
8056221008280
Power Distribution
AC/DC
120 cycles per hour
5000 cycle
240 cycles per hour
20000 cycle
4
1 piece
54.2 W
SACE Tmax XT
Moulded Case Circuit Breaker
CB
800 A
8 kV
4000…8000 A
1000 V
690 V AC
750 V DC
(220 V AC) 100 kA
(230 V AC) 100 kA
(240 V AC) 100 kA
(380 V AC) 70 kA
(415 V AC) 70 kA
(440 V AC) 50 kA
(500 V AC) 50 kA
(525 V AC) 50 kA
(690 V AC) 25 kA
(250 V DC) 2 Poles in Series 35 kA
(500 V DC) 2 Poles in Series 25 kA
(750 V DC) 3 Poles in Series 18 kA
10 kA
(220 V AC) 100 kA
(230 V AC) 100 kA
(240 V AC) 100 kA
(380 V AC) 70 kA
(415 V AC) 70 kA
(440 V AC) 50 kA
(500 V AC) 50 kA
(525 V AC) 50 kA
(690 V AC) 25 kA
(250 V DC) 2 Poles in Series 70 kA
(500 V DC) 2 Poles in Series 50 kA
800 A
TMA
TM
560…800 A
H
IEC 60947
XT6
Fixed Circuit-Breakers
F
EC000228 - Power circuit-breaker for trafo/generator/installation protection
Q
5. Small Equipment (No External Dimension More Than 50 cm)
Title: | Size: | Type: |
---|---|---|
PDF CATALOG MOLDED CASE ISOMAX-TMAX EN.pdf | 25 Mbytes |
