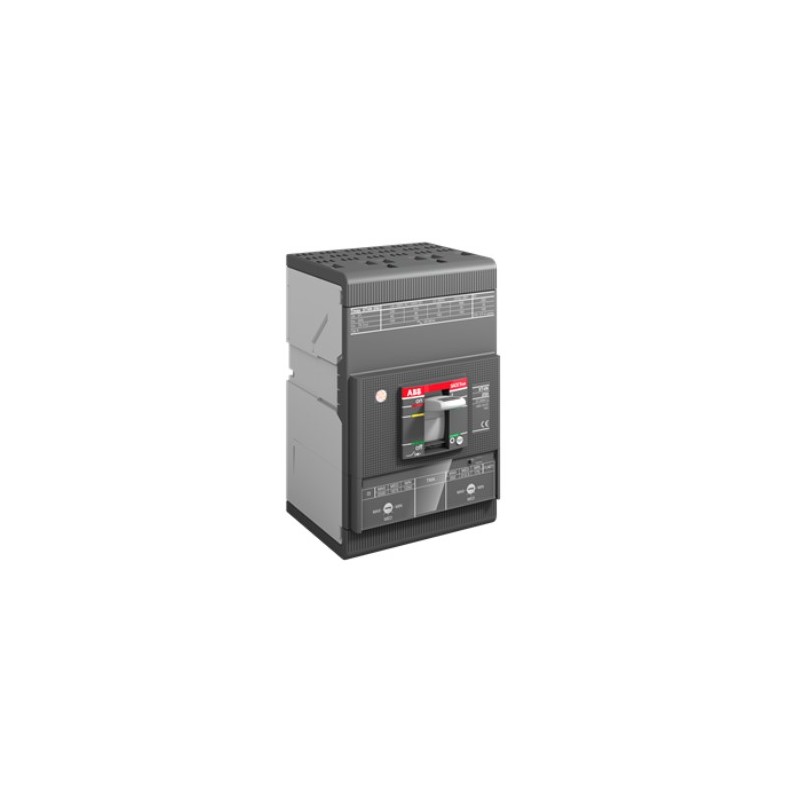

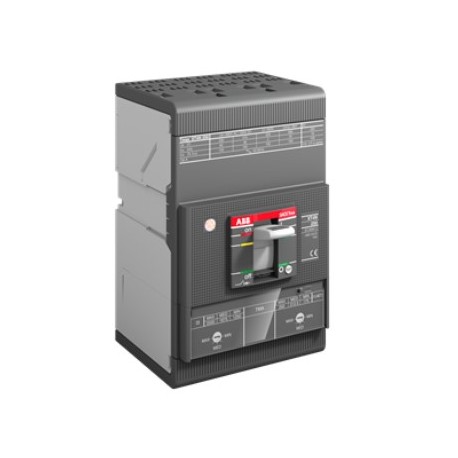

1SDA080116R1 ABB XT4N 250 TMF 250-2500 3p F F UL/CSA. TMAX XT4N 250 UL/CSA FIXED THREE-POLE AUTOMATIC SWITCH..
1SDA080116R1
ABB
XT4N 250 TMF 250-2500 3p F F UL/CSA. TMAX XT4N 250 UL/CSA FIXED THREE-POLE AUTOMATIC SWITCH WITH FRONT TERMINALS AND THERMOMAGNETIC TRIP TMF R 250-2500 A
Molded Case Circuit Breakers ≤ 250 A Xtmax
Brand new product in its original packaging covered by the warranties and certifications provided by ABB
Best sellers
▲More info
▲ABB EcoSolutions
ABB EcoSolutions:
Yes
Yes
ABB site meeting the waste-to-landfill target:
UL 2799 Zero Waste to Landfill Validation Available
UL 2799 Zero Waste to Landfill Validation Available
End-of-life disassembly instructions:
Environmental Product Declaration - EPD:
Extended Product Life:
Product modularity
Product modularity
Product recyclability rate according to EN45555:
Design to close resource loops - Standard EN45555 - 56.30%
Design to close resource loops - Standard EN45555 - 56.30%
Material Compliance
REACH Statement:
RoHS Information:
RoHS Status:
Following EU Directive 2011/65/EU and Amendment 2015/863 22 July 2019
Following EU Directive 2011/65/EU and Amendment 2015/863 22 July 2019
Conflict Minerals Notification Template (CMRT):
Toxic Substances Control Act - TSCA:
Environment
Environmental information:
Classification
US & Canada Order Code:
XT4NU3250AFF000XXX
XT4NU3250AFF000XXX
EAN:
8015644866457
8015644866457
Minimum Order Quantity:
1 piece
1 piece
Tariff Code:
85362090
85362090
Dimensions
Product Width:
105 mm
105 mm
Product Height:
160 mm
160 mm
Product Length:
82.5 mm
82.5 mm
Product Weight:
2.5 kg
2.5 kg
Packaging Information
Packaging Level 1 Units:
Box 1 piece
Box 1 piece
Packaging Level 1 Width:
145 mm
145 mm
Level 1 High Packaging:
210 mm
210 mm
Packing Level 1 Long:
168 mm
168 mm
Packaging Level 1 Weight:
2.5 kg
2.5 kg
EAN Level 1 Packaging:
8015644866457
8015644866457
Additional information
Type of circuit breaker to be associated:
Power Distribution
Power Distribution
Main Product Type:
SACE Tmax XT
SACE Tmax XT
Product Name:
Moulded Case Circuit Breaker
Moulded Case Circuit Breaker
Product Type:
Automatic Circuit Breaker
Automatic Circuit Breaker
Suitable for Product Class:
SACE Tmax XT
SACE Tmax XT
Version:
F
F
CAD dimensional drawing:
Technique
Main Circuit Connection Capacity:
Busbar 85..200 mm²
Busbar 85..200 mm²
Current rate:
AC/DC
AC/DC
Electrical Durability:
120 cycles per hour
8000 cycle
120 cycles per hour
8000 cycle
Mechanical durability:
240 cycles per hour
25000 cycle
240 cycles per hour
25000 cycle
Number of poles:
3P
3P
Opening hours:
CB with SOR 30 ms
CB with UVR 30 ms
CB with SOR 30 ms
CB with UVR 30 ms
Multiple Order:
1 piece
1 piece
Power loss:
under nominal operating conditions per pole 16.4 W
under nominal operating conditions per pole 16.4 W
Rated Current (In):
250 A
250 A
Nominal instantaneous short-circuit current adjustment (Ii):
2500 A
2500 A
Nominal Operating Voltage:
600 V AC
600 V DC
600 V AC
600 V DC
Uninterruptible current rating (Ior):
250 A
250 A
Nominal voltage (Ur):
600 V
600 V
Recommended screwdriver:
Main Circuit M8
Main Circuit M8
Release:
TMF
TMF
Unlock Type:
TM
TM
Adjustment Range:
250 A
250 A
Short Circuit Performance Level:
N
N
Standards:
UL489
UL489
Subtype:
XT4
XT4
Terminal connection type:
Forehead
Forehead
Terminal Type:
Bolt
Bolt
Torque:
8 N·m
8 N·m
UL/CSA Technique
Interrupting capacity according to UL489:
(240 V AC) 65 kA
(480 V AC) 25 kA
(600 V AC) 18 kA
(250 V DC) 2 Poles in Series 35 kA
(600 V DC) 3 Poles in Series 35 kA
(240 V AC) 65 kA
(480 V AC) 25 kA
(600 V AC) 18 kA
(250 V DC) 2 Poles in Series 35 kA
(600 V DC) 3 Poles in Series 35 kA
Certificates and Declarations (Document Number)
ATEX Certified:
CSA (intrinsically safe) certified:
Technical data, technical information:
Declaration of Conformity - CE:
UL Certificate:
VDE Certificate:
Dimension Diagram:
Mechanical drawings:
External Classifications and Standards
ETIM 9:
EC000228 - Power circuit-breaker for trafo/generator/installation protection
EC000228 - Power circuit-breaker for trafo/generator/installation protection
ETIM 10:
EC000228 - Power circuit-breaker for trafo/generator/installation protection
EC000228 - Power circuit-breaker for trafo/generator/installation protection
IDEA Granular Category Code (IGCC):
4927 >> Molded case circuit breakers
4927 >> Molded case circuit breakers
Object Classification Code:
Q
Q
UNSPSC:
39121616
39121616
WEEE Category:
5. Small equipment (no external dimension more than 50cm)
5. Small equipment (no external dimension more than 50cm)
E-Class:
V11.1 : 27370409
V11.1 : 27370409
