> ABB>Molded Case Circuit Breakers ≤ 250 A Xtmax>1SDA067495R1 ABB Ekip MA In125 Im625-1250 3P XT4 Relay
ANUNCIAR
Previous Product Next Product

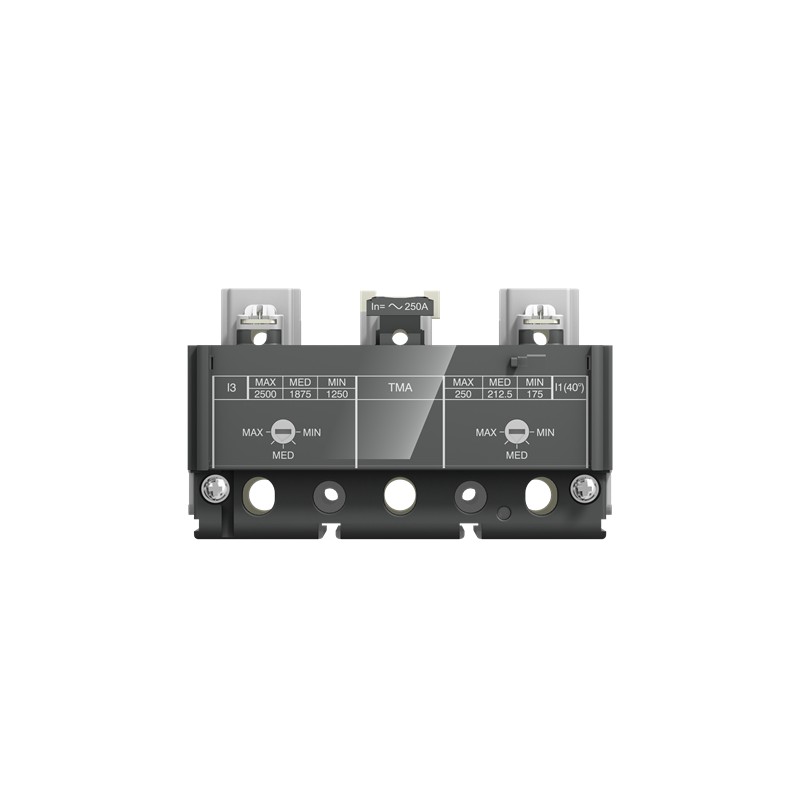

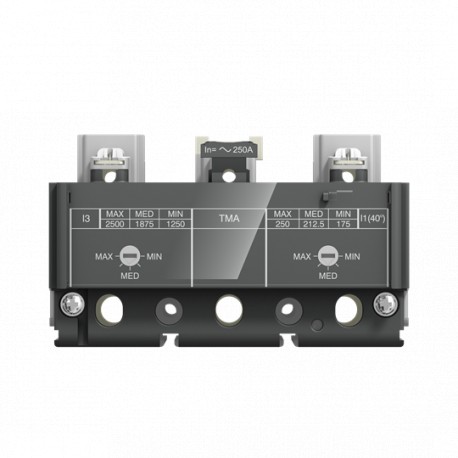

1SDA067495R1 ABB Ekip MA In125 Im625-1250 3P XT4 Relay View larger
Images are for illustrative purposes only. Please refer to data sheet for details.

1SDA067495R1 ABB Ekip MA In125 Im625-1250 3P XT4 Relay

1SDA067495R1

ABB

Ekip MA In125 Im625-1250 3P - XT4 Relay

MAGNETIC RELEASE THREE-POLE IN AC-DC MA Iu 125 I3=625...1250 A XT4

More details


Low-voltage industrial components > Shunt release (for power circuit breaker)

Molded Case Circuit Breakers ≤ 250 A Xtmax

Brand new product in its original packaging covered by the warranties and certifications provided by ABB

Total: $285.64
Unit price: $285.64
This price is per unit and is the net value (not including taxes if applicable).

If our price is not the best, please ask us for a quote. Ask for a quotation

Best sellers

▲

More info

▲


b'

General Information

Extended Product Type:
MA 125 Im=625...1250 XT4 3p
Product ID:
1SDA067495R1
EAN:
8015644695378
Catalog Description:
MA 125 Im=625...1250 XT4 3p
Long Description:
MAGNETIC RELEASE THREE-POLE IN AC-DC MA Iu 125 I3=625...1250 A XT4
\n

Ordering

EAN:
8015644695378
Minimum Order Quantity:
1 piece
Customs Tariff Number:
85389099

Dimensions

Product Net Width:
162 mm
Product Net Height:
92 mm
Product Net Depth / Length:
100 mm
Product Net Weight:
0.8 kg

Container Information

Package Level 1 Units:
1 piece
Package Level 1 Width:
162 mm
Package Level 1 Height:
92 mm
Package Level 1 Depth / Length:
100 mm
Package Level 1 Gross Weight:
0.9 kg
Package Level 1 EAN:
8015644695378

Additional Information

Circuit Breaker Type to be Associated:
Motor Protection
Configuration Type:
Loose or configurable
Current Type:
AC/DC
Number of Poles:
3
Order Multiple:
1 piece
Product Main Type:
Accessories for Tmax XT
Product Name:
Accessory
Product Type:
ACC
Rated Current (In):
125 A
Release:
MA
Release Type:
Magnetic
Standards:
IEC
Suitable For:
XT4
Suitable for Product Class:
SACE Tmax XT

Certificates and Declarations (Document Number)

Data Sheet, Technical Information:\n1SDC210100D0205
1SDC210099D0205
Instructions and Manuals:\n1SDH000721R0505

Classifications

ETIM 6:
EC001023 - Shunt release (for power circuit breaker)
ETIM 7:
EC001023 - Shunt release (for power circuit breaker)
Object Classification Code:
Q
UNSPSC:
39120000
WEEE Category:
5. Small Equipment (No External Dimension More Than 50 cm)
\n
'

Datasheet - PDF

▲
Title: Size: Type:
PDF CATALOG MOLDED CASE ISOMAX-TMAX 2024 EN.pdf 71 Mbytes
1SDA067495R1 1SDA067495R1 EN_1SDA067495R1.pdf 244 Kbytes 1SDA067495R1 1SDA067495R1 EN_1SDA067495R1.pdf
