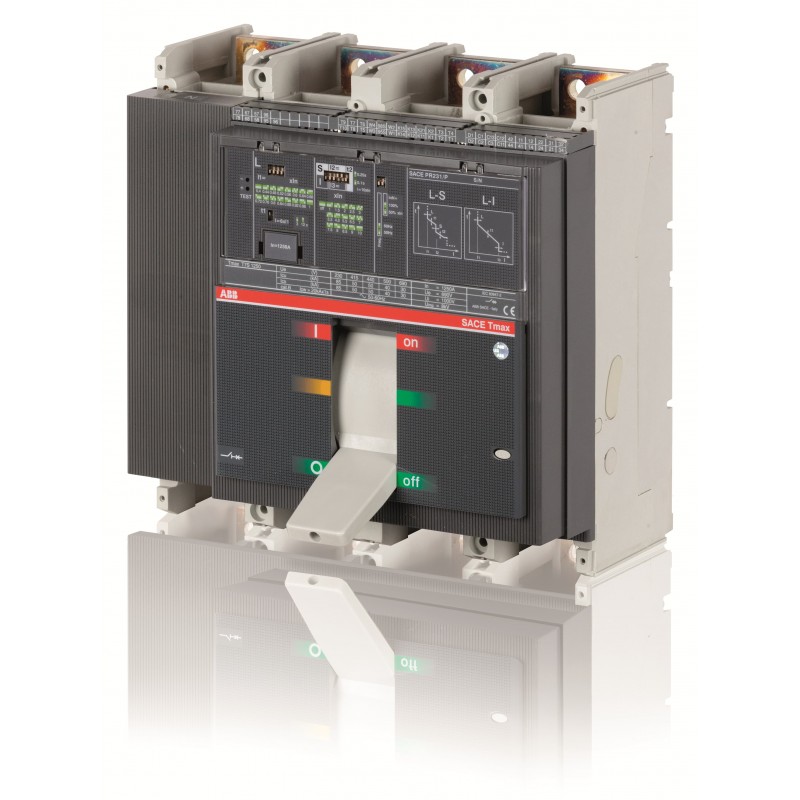

1SDA061973R1 ABB C.BREAKER TMAX T7S 800 FIXED FOUR-POLE WITH FRONT TERMINALS AND LEVER OPERATING MECHANISM A..
1SDA061973R1
ABB
C.BREAKER TMAX T7S 800 FIXED FOUR-POLE WITH FRONT TERMINALS AND LEVER OPERATING MECHANISM AND SOLID-STATE RELEASE IN AC PR231/P-LS/I R 800
T7S 800 PR231/P LS/I In=800A 4p F F
Molded case "Isomax-Tmax"
Brand new product in its original packaging covered by the warranties and certifications provided by ABB
Best sellers
▲More info
▲| ABB EcoSolutions | |
|---|---|
| Material Compliance | |
| REACH Declaration | 9AKK108466A1425 |
| RoHS Declaration | 9AKK108466A1424 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| Toxic Substances Control Act - TSCA | 9AKK108467A8326 |
| SCIP | 8e87e035-b250-45ef-9b36-5efbb1048780 Italy |
| Simplified SCIP | 2840b235-479d-441c-a17b-009831fba933 Czech Republic |
| b470e2bb-2c31-489b-91b7-fe1a3dcb5a07 Finland | |
| ba40a443-f9d0-43bb-8cf5-cda6411d68fd Poland | |
| 49dada8a-55ff-4953-9d86-6a23499228cf Germany | |
| 3f497750-4c13-42f1-a244-b846e92ff7f9 Norway | |
| a444bbe5-354e-42a8-a8cd-7f0c008df0db Belgium | |
| b5c680b8-48fa-445c-b38d-69ec3e0c5f2a Belgium | |
| c60c6f4a-485d-4b81-b189-3c3a9059bda0 Spain | |
| 5148d34f-0eb5-43dc-aff0-0e40fb0d5ee8 France | |
| 47a0dfdf-323d-4795-b95b-70dfcc620357 Hungary | |
| f5140f71-4a66-4bf7-b405-1fc757a4958b Germany | |
| 99ea8388-32ec-46f5-badd-cc42ac533330 Germany | |
| efef136c-5df4-4df1-9f0c-a38e7a6b7e64 Sweden | |
| 18651f34-25b9-418c-b7a2-8730d3f3fda9 Hungary | |
| 02846e64-7c2f-49b7-b292-9fa24cf7e0ba Poland | |
| b440d295-6208-4ccb-adf8-83483e639ea2 France | |
| 55c06a93-e03c-41d1-80db-0b51089d49e0 Netherlands | |
| 3d8ac0e9-9f87-4d80-bf9e-01d499a87ec6 Estonia | |
| 2533e4cd-cb8e-42e7-8358-8566e4c5e933 Germany | |
| 8d114f4f-2a8f-47d8-b6c6-1549371b173d Denmark | |
| 0fdc881f-ad4a-420c-abb0-802e53c360d0 Germany | |
| 4323f005-3f3b-4931-b2f9-0549dfe97d8d Croatia | |
| eba9ed0a-976d-4a03-8334-1e7ece1793fc Poland | |
| c4b062f3-509e-48d2-9b40-c23bfe1fdf65 Sweden | |
| 508b8c33-f82b-496b-82fe-d688d6248466 Portugal | |
| aac7be2d-0a8c-47eb-9576-b8595550033b Greece | |
| 525fe94f-b60a-435f-8153-739d85928166 Bulgaria | |
| Environmental | |
| Environmental Information | 9AKK10103A1059 |
| 9AKK108467A6707 | |
| Ordering | |
| EAN | 8015644645090 |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85362090 |
| Dimensions | |
| Product Net Width | 280 mm |
| Product Net Height | 268 mm |
| Product Net Depth / Length | 154 mm |
| Product Net Weight | 12.5 kg |
| Container Information | |
| Package Level 1 Units | 1 piece |
| Package Level 1 Width | 360 mm |
| Package Level 1 Height | 350 mm |
| Package Level 1 Depth / Length | 360 mm |
| Package Level 1 Gross Weight | 14 kg |
| Package Level 1 EAN | 8015644645090 |
| Additional Information | |
| Product Main Type | SACE Tmax T |
| Product Name | Moulded Case Circuit Breaker |
| Product Type | Automatic Circuit Breaker |
| Suitable For | T7 |
| Suitable for Product Class | Moulded Case Circuit Breakers |
| Version | F |
| Technical | |
| Electrical Durability | 2000 cycle |
| 60 cycles per hour | |
| Mechanical Durability | 10000 cycle |
| 60 cycles per hour | |
| Number of Poles | 4P |
| Power Loss | at Rated Operating Conditions per Pole 19.3 W |
| Rated Current (In) | 800 A |
| Rated Impulse Withstand Voltage (Uimp) | 8 kV |
| Rated Insulation Voltage (Ui) | 1000 V |
| Rated Operational Voltage | 690 V AC |
| Rated Service Short-Circuit Breaking Capacity (Ics) | (220 V AC) 85 kA |
| (230 V AC) 85 kA | |
| (380 V AC) 50 kA | |
| (400 V AC) 50 kA | |
| (415 V AC) 50 kA | |
| (440 V AC) 50 kA | |
| (500 V AC) 40 kA | |
| (690 V AC) 30 kA | |
| Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 20 kA |
| Rated Ultimate Short-Circuit Breaking Capacity (Icu) | (220 V AC) 85 kA |
| (230 V AC) 85 kA | |
| (380 V AC) 50 kA | |
| (400 V AC) 50 kA | |
| (415 V AC) 50 kA | |
| (440 V AC) 50 kA | |
| (500 V AC) 40 kA | |
| (690 V AC) 30 kA | |
| Rated Uninterrupted Current (Iu) | 800 A |
| Release | PR231/P-LS/I |
| Release Type | EL |
| Short-Circuit Performance Level | S |
| Standards | IEC |
| Sub-type | T7 |
| Terminal Connection Type | Fixed Circuit-Breakers |
| Front | |
| Certificates and Declarations | |
| Data Sheet, Technical Information | 1SDC210015D0201 |
| Declaration of Conformity - CE | 9AKK106713A5537 |
| EU Data Act Compliance Declaration | 1SDH002560A1001 |
| GL Certificate | 1SDL000163R0055 |
| Instructions and Manuals | 1SDC210015D0201 |
| External Classifications and Standards | |
| ETIM 9 | EC000228 - Power circuit-breaker for trafo/generator/installation protection |
| ETIM 10 | EC000228 - Power circuit-breaker for trafo/generator/installation protection |
| Object Classification Code | Q |
| UNSPSC | 39121100 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| eClass | V11.1 : 27370409 |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOG ABB TMAX XT EN.pdf | 70 Mbytes |
|
| 1SDA061973R1 EN_1SDA061973R1.pdf | 108 Kbytes |
|
