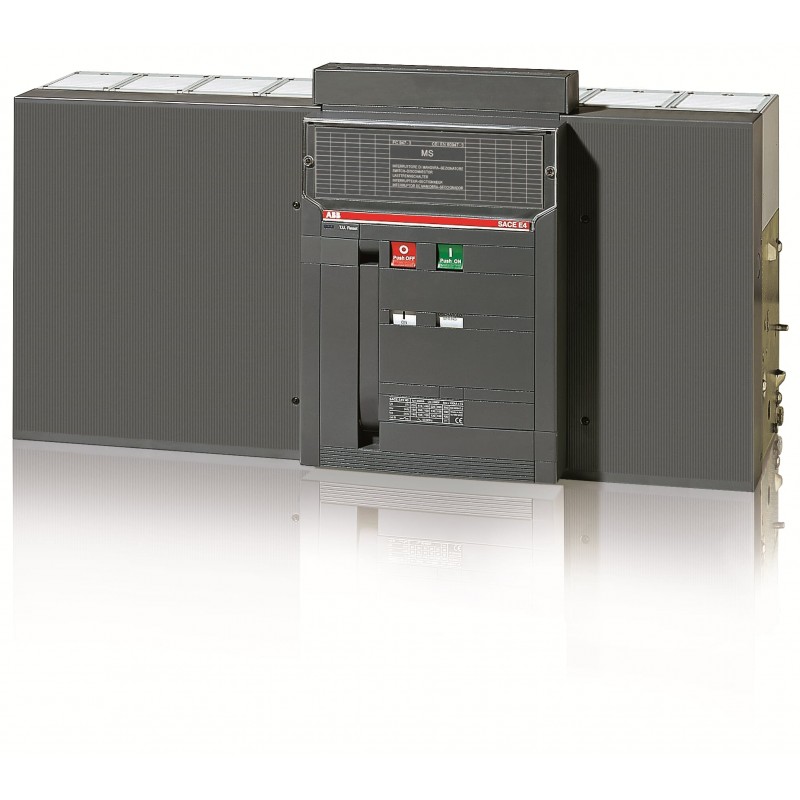

1SDA058913R1 ABB SACE EMAX C.BREAKER SWITCH-DISCONNECTOR E4H/E/f MS 4000A 1000V DC FULL SIZE NEUTRAL FOUR-PO..
1SDA058913R1
ABB
SACE EMAX C.BREAKER SWITCH-DISCONNECTOR E4H/E/f MS 4000A 1000V DC FULL SIZE NEUTRAL FOUR-POLE FIXED WITH TERMINALES REAR HORIZONTAL NEW
Service Breakers
* Brand new product in its original packaging covered by the warranties and certifications provided by ABB
Best sellers
▲More info
▲b'
General Information
Extended Product Type:
E4H/E/f/MS40004pFHR1000VDCnew
Product ID:
1SDA058913R1
EAN:
8015644612665
Catalog Description:
E4H/E/f/MS 4000 4p F HR 1000V DC new
Long Description:
SACE EMAX C.BREAKER SWITCH-DISCONNECTOR E4H/E/f MS 4000A 1000V DC FULL SIZE NEUTRAL FOUR-POLE FIXED WITH TERMINALES REAR HORIZONTAL NEW
Ordering
EAN:
8015644612665
Minimum Order Quantity:
1 piece
Customs Tariff Number:
85362090
Dimensions
Product Net Width:
746 mm
Product Net Height:
418 mm
Product Net Depth / Length:
302 mm
Product Net Weight:
109 kg
Container Information
Package Level 1 Units:
1 piece
Package Level 1 Width:
515 mm
Package Level 1 Height:
600 mm
Package Level 1 Depth / Length:
1000 mm
Package Level 1 Gross Weight:
128 kg
Package Level 1 EAN:
8015644609139
Additional Information
Current Type:
DC
Electrical Durability:
5000 cycle
10 cycles per hour
Mechanical Durability:
15000 cycle
60 cycles per hour
Number of Poles:
4 / f
Power Loss:
360 W
Product Main Type:
SACE Emax
Product Name:
Switch Disconnector
Product Type:
Switch-disconnector
Rated Current (In):
4000 A
Rated Voltage (Ur):
1000 V
Rated Impulse Withstand Voltage (Uimp):
12 kV
Rated Insulation Voltage (Ui):
1000 V
Rated Operational Current (Ie):
4000 A
Rated Operational Voltage:
1000 V DC
Rated Short-time Withstand Current (Icw):
for 1 s 65 kA
Rated Uninterrupted Current (Iu):
4000 A
Short-Circuit Performance Level:
H
Standards:
IEC
Sub-type:
E4
Terminal Connection Type:
Fixed Circuit-Breakers
Rear flat Horizontal
Version:
F
Certificates and Declarations (Document Number)
Data Sheet, Technical Information:\n1SDC200012D0202
Declaration of Conformity - CE:\n1SDL000165R0016
Environmental Information:\n1SDL000142R0
Instructions and Manuals:\n1SDH000635R0002
Classifications
ETIM 4:
EC000228 - Power circuit-breaker for trafo/generator/installation prot.
ETIM 5:
EC000228 - Power circuit-breaker for trafo/generator/installation prot.
ETIM 6:
EC000216 - Switch disconnector
ETIM 7:
EC000216 - Switch disconnector
Object Classification Code:
Q
WEEE Category:
4. Large Equipment (Any External Dimension More Than 50 cm)
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| 1SDA058913R1 1SDA058913R1 EN_1SDA058913R1.pdf | 88 Kbytes |
 |
