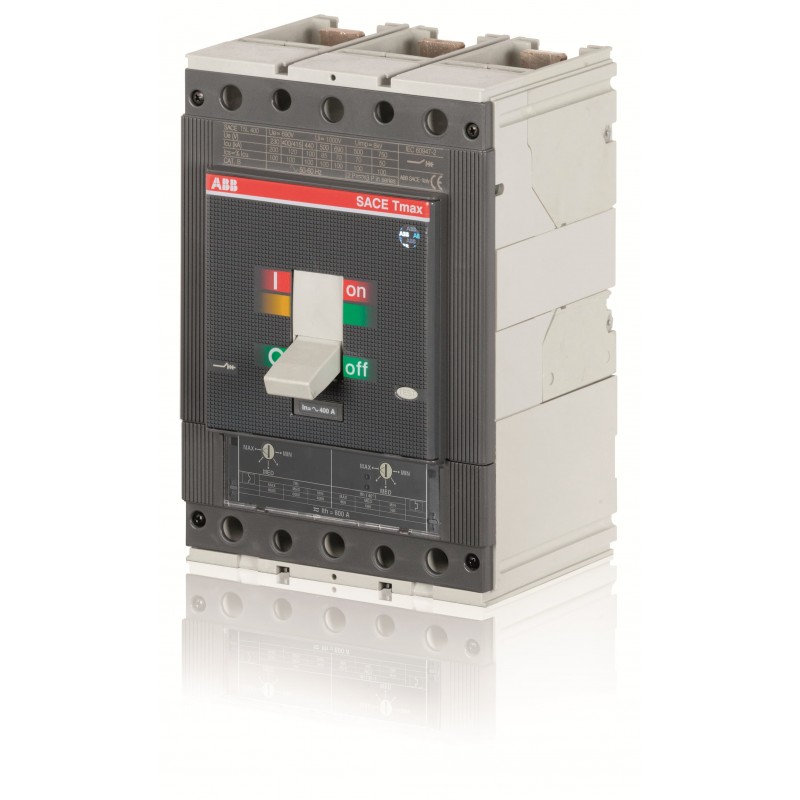

1SDA054456R1 ABB C.BREAKER TMAX T5N 630 FIXED THREE-POLE WITH FRONT TERMINALS AND THERMOMAGNETIC RELEASE TMA..
1SDA054456R1
ABB
C.BREAKER TMAX T5N 630 FIXED THREE-POLE WITH FRONT TERMINALS AND THERMOMAGNETIC RELEASE TMA R 500 I3=2500...5000 A
T5N 630 TMA 500-5000 3p F F
Molded case "Isomax-Tmax"
Brand new product in its original packaging covered by the warranties and certifications provided by ABB
Best sellers
▲More info
▲| ABB EcoSolutions | |
|---|---|
| Material Compliance | |
| REACH Declaration | 9AKK108466A1425 |
| RoHS Declaration | 9AKK108466A1424 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| Toxic Substances Control Act - TSCA | 9AKK108467A8326 |
| SCIP | b369b3e1-2514-4bd1-890f-1a7c3f0da4d0 Italy |
| Simplified SCIP | 344e4eea-00dc-4e2f-ba83-f28cd5ee6ff8 Germany |
| cc318231-4108-4216-8c99-d6c58e685348 Finland | |
| 2d4c053a-592d-4189-b4cf-66610a739e45 Poland | |
| 42e4bf8c-6386-4776-a505-7cdb94a94ea5 Denmark | |
| b6142632-af42-4f70-b5db-4a9205dfe30b Netherlands | |
| 7efc0da7-3da6-421a-ad0e-b9d18359f10a Germany | |
| 51d4e778-f746-4da5-9b2d-ae919cd00062 Germany | |
| 00728f53-23b1-4e7e-96e9-9c6806c1530e Croatia | |
| 63c29827-4ed0-425e-bfcc-7f14a98d04a6 Czech Republic | |
| 1871b1f7-5ab4-40dc-82b6-6ddd9142d05b Poland | |
| 559ceeed-04af-4edf-b12d-767879fa299b Netherlands | |
| 5ff62d41-e8fa-4606-8ad4-f26ef613d69d Netherlands | |
| d23ec4c7-f3ec-45f3-a148-1aa47561bc55 Estonia | |
| 7bbde3c9-689b-4a25-9476-d5d8dddc951e Greece | |
| 0211e3f8-143b-4b1c-b533-6faf1e5ebc1d Portugal | |
| b0c590ce-dae8-4651-9cf7-f35abea367c3 Bulgaria | |
| 1baffa92-ca36-4ed0-b471-f9300a221c89 Sweden | |
| 98ab9c5a-2b14-4bf3-bf92-438686b70a24 Poland | |
| 51d24280-b61c-462f-a462-09d518656aae France | |
| f8f2edd7-373b-40c0-bb51-7139e2f2ce08 Sweden | |
| e8eab919-b356-4a85-a64f-5f98c674716d Germany | |
| 32c8be9d-5e1a-4dfb-816f-e6c4368f75af Germany | |
| 0ce19415-6721-4508-b3b0-4df71ddf81e7 France | |
| 6fd5db72-1e98-4ff9-81f8-a97399327cf9 Netherlands | |
| ce44f998-27e2-4a8e-ab33-3689940efb5b Spain | |
| 3000cc4b-012d-46ac-a2a5-937625e9cf51 Netherlands | |
| 092c61fb-46cb-4fc2-82d9-eda3f8c016d4 Norway | |
| Environmental | |
| Environmental Information | 9AKK10103A1056 |
| 9AKK108467A6707 | |
| Ordering | |
| E-Number (Finland) | 3655293 |
| EAN | 8015644555603 |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85362090 |
| Dimensions | |
| Product Net Width | 140 mm |
| Product Net Height | 205 mm |
| Product Net Depth / Length | 103.5 mm |
| Product Net Weight | 4.579 kg |
| Container Information | |
| Package Level 1 Units | 1 piece |
| Package Level 1 Width | 248 mm |
| Package Level 1 Height | 240 mm |
| Package Level 1 Depth / Length | 285 mm |
| Package Level 1 Gross Weight | 4.8 kg |
| Package Level 1 EAN | 8015644555603 |
| Additional Information | |
| Product Main Type | SACE Tmax T |
| Product Name | Moulded Case Circuit Breaker |
| Product Type | Automatic Circuit Breaker |
| Suitable For | T5 |
| Suitable for Product Class | Moulded Case Circuit Breakers |
| Version | F |
| Technical | |
| Electrical Durability | 5000 cycle |
| 60 cycles per hour | |
| Mechanical Durability | 20000 cycle |
| 120 cycles per hour | |
| Number of Poles | 3P |
| Power Loss | at Rated Operating Conditions per Pole 28.8 W |
| Rated Current (In) | 500 A |
| Rated Impulse Withstand Voltage (Uimp) | 8 kV |
| Rated Insulation Voltage (Ui) | 1000 V |
| Rated Operational Voltage | 690 V AC |
| 750 V DC | |
| Rated Service Short-Circuit Breaking Capacity (Ics) | (220 V AC) 70 kA |
| (230 V AC) 70 kA | |
| (380 V AC) 36 kA | |
| (400 V AC) 36 kA | |
| (415 V AC) 36 kA | |
| (440 V AC) 30 kA | |
| (500 V AC) 25 kA | |
| (690 V AC) 20 kA | |
| Rated Ultimate Short-Circuit Breaking Capacity (Icu) | (220 V AC) 70 kA |
| (230 V AC) 70 kA | |
| (380 V AC) 36 kA | |
| (400 V AC) 36 kA | |
| (415 V AC) 36 kA | |
| (440 V AC) 30 kA | |
| (500 V AC) 25 kA | |
| (690 V AC) 20 kA | |
| (250 V DC) 2 Poles in Series 36 kA | |
| (500 V DC) 2 Poles in Series 25 kA | |
| (750 V DC) 3 Poles in Series 16 kA | |
| Rated Uninterrupted Current (Iu) | 630 A |
| Release | TMA |
| Release Type | TM |
| Short-Circuit Performance Level | N |
| Standards | IEC |
| Sub-type | T5 |
| Terminal Connection Type | Fixed Circuit-Breakers |
| Front | |
| Test Voltage Max (Utest) | 3500 V |
| Test Voltage at Industrial Frequency for 1 Minute | 3500 V |
| Certificates and Declarations | |
| Data Sheet, Technical Information | 1SDC210004D0203 |
| Declaration of Conformity - CE | 9AKK106713A5539 |
| Instructions and Manuals | 1SDH000437R0001 |
| Instructions and Manuals (Part 2) | ITSCE-RH0100001 |
| External Classifications and Standards | |
| ETIM 9 | EC000228 - Power circuit-breaker for trafo/generator/installation protection |
| ETIM 10 | EC000228 - Power circuit-breaker for trafo/generator/installation protection |
| Object Classification Code | Q |
| UNSPSC | 39121100 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| eClass | V11.1 : 27370409 |
