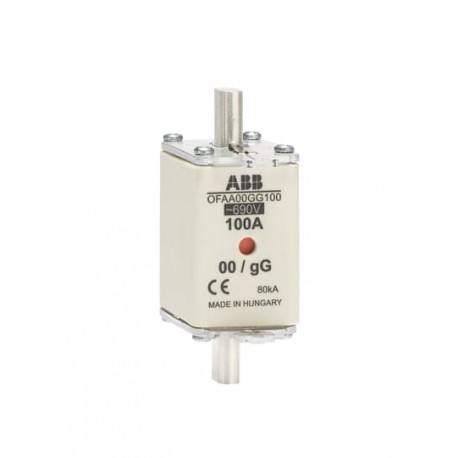

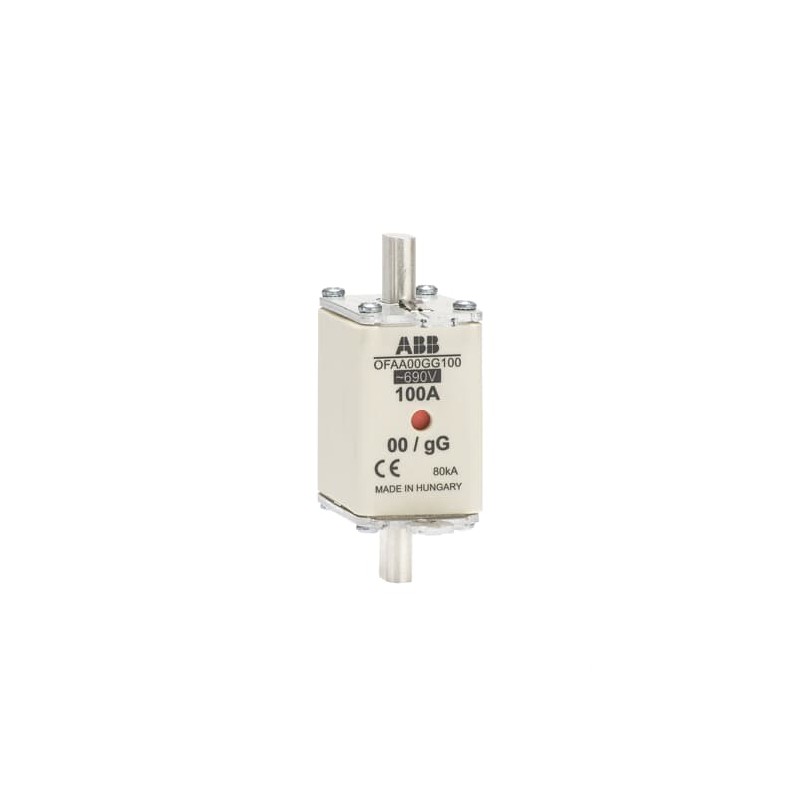

1SCA022700R9520 ABB OFAA00GG100 NH00 fuse, gG
1SCA022700R9520
ABB
OFAA00GG100 NH00 fuse, gG
OFAA00GG100 HRC FUSE LINK
Circuit breakers and fuses > Low Voltage HRC fuse
Manual Switches
Brand new product in its original packaging covered by the warranties and certifications provided by ABB
Best sellers
▲More info
▲| ABB EcoSolutions | |
|---|---|
| Environmental Information | 1SCC317009D0201 |
| Material Compliance | |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| REACH Declaration | 1SCC011021D0201 |
| RoHS Declaration | 1SCC011020D0201 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Popular Downloads | |
| Data Sheet, Technical Information | 1SCC317001C0201 |
| Instructions and Manuals | No Instructions and Manuals needed |
| Environmental | |
| Environmental Information | 1SCC317009D0201 |
| Ordering | |
| Minimum Order Quantity | 3 piece |
| Customs Tariff Number | 85361090 |
| Country or Territory of Origin | Hungary |
| Dimensions | |
| Product Net Width | 30 mm |
| Product Net Height | 79 mm |
| Product Net Depth / Length | 60 mm |
| Product Net Weight | 0.18 kg |
| Container Information | |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 95 mm |
| Package Level 1 Depth / Length | 85 mm |
| Package Level 1 Height | 67 mm |
| Package Level 1 Gross Weight | 0.567 kg |
| Package Level 1 EAN | 6417019223780 |
| Technical | |
| Fuse Size | NH00 |
| Fuse System | DIN |
| Fuse Type | gG |
| Power Loss | at Rated Current 7.5 W |
| Rated Current (In) | 100 A |
| Rated Voltage (Ur) | 690 V |
| Standards | IEC 60269 |
| Certificates and Declarations | |
| Declaration of Conformity - CE | 1SCC317005D2706 |
| External Classifications and Standards | |
| Object Classification Code | F |
| ETIM 9 | EC000055 - Knife blade fuse |
| ETIM 10 | EC000055 - Knife blade fuse |
| UNSPSC | 39121600 |
| IDEA Granular Category Code (IGCC) | 4948 >> Low Voltage HRC solid link |
| eClass | V11.1 : 27142005 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| E-Number (Finland) | 3123011 |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOG TRANSFER SWITCHES 2023 EN.pdf | 42 Mbytes |
|
| 1SCA022700R9520 1SCA022700R9520 EN_1SCA022700R9520.pdf | 75 Kbytes |
|
