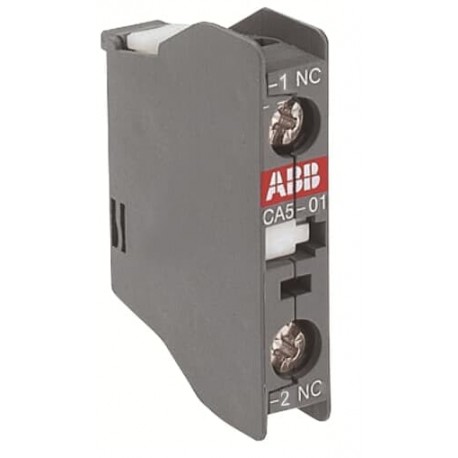

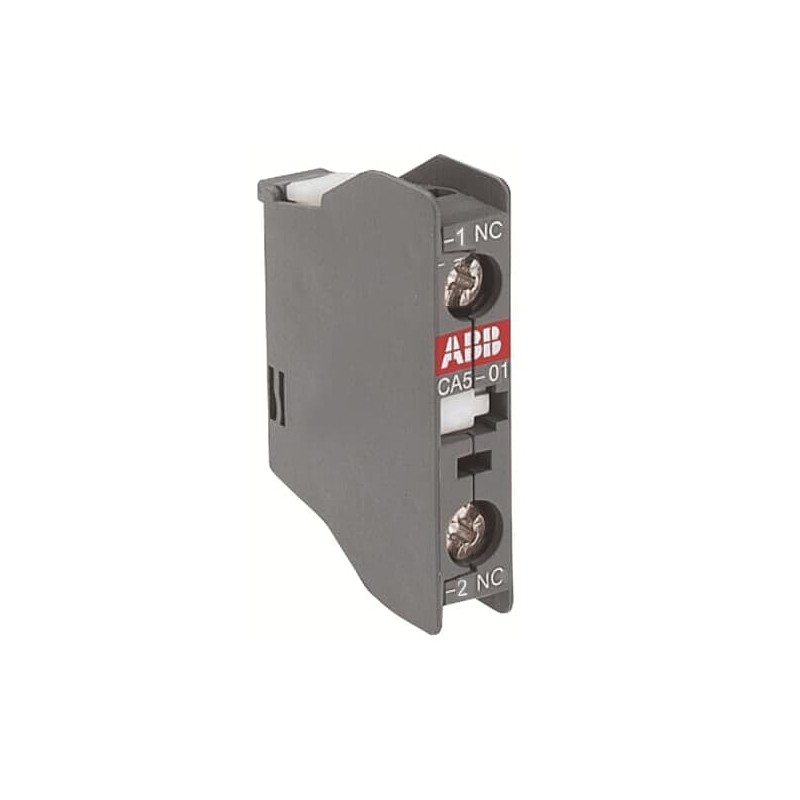

1SBN010010W1001 CA5-01 ABB CA5-01 Auxiliary Contact Block
1SBN010010W1001
CA5-01
ABB
60
CA5-01 Auxiliary Contact Block
Contactors and overload relays
Brand new product in its original packaging covered by the warranties and certifications provided by ABB
Best sellers
▲More info
▲| Ordering | |
|---|---|
| Minimum Order Quantity | 60 piece |
| Customs Tariff Number | 85389099 |
| Popular Downloads | |
| Data Sheet, Technical Information | 1SBC100214C0202 |
| Instructions and Manuals | 1SBC101012M5501 |
| CAD Dimensional Drawing | 2CDC001079B0201 |
| Dimensions | |
| Product Net Width | 11 mm |
| Product Net Depth / Length | 32.5 mm |
| Product Net Height | 47 mm |
| Product Net Weight | 0.014 kg |
| Technical | |
| Number of Auxiliary Contacts NO | 0 |
| Number of Auxiliary Contacts NC | 1 |
| Number of Poles | 1P |
| Rated Operational Voltage | Auxiliary Circuit 690 V |
| Rated Frequency (f) | Auxiliary Circuit 50 / 60 Hz |
| Rated Operational Current AC-15 (Ie) | (500 V) 2 A |
| (690 V) 2 A | |
| (24 / 127 V) 6 A | |
| (220 / 240 V) 4 A | |
| (380 / 400 V) 3 A | |
| Rated Operational Current DC-13 (Ie) | (24 V) 6 A / 144 W |
| (48 V) 2.8 A / 134 W | |
| (72 V) 1 A / 72 W | |
| (110 V) 0.55 A / 60 W | |
| (125 V) 0.55 A / 69 W | |
| (220 V) 0.30 A / 66 W | |
| (250 V) 0.3 / 75 W | |
| Short-Circuit Protective Devices | Auxiliary Circuit - gG Type Fuses 10 A |
| Rated Short-time Withstand Current Low Voltage (Icw) | for 0.1 s 140 A |
| for 1 s 100 A | |
| Rated Insulation Voltage (Ui) | acc. to IEC 60947-5-1 690 V |
| acc. to UL/CSA 600 V | |
| Maximum Electrical Switching Frequency | 1200 cycles per hour |
| Mechanical Durability | 10 million |
| 3 million | |
| Maximum Mechanical Switching Frequency | 3600 cycles per hour |
| Minimum Switching Capacity | A9 ... A75 17 / 5 VLT4K |
| A95 ... A110 24 / 50 VLT4K | |
| Power Loss | at Rated Operating Conditions per Pole 0.1 W |
| Degree of Protection | acc. to IEC 60529, IEC 60947-1, EN 60529 Auxiliary Terminals IP20 |
| Terminal Type | Screw Terminals |
| Suitable For | AF45 |
| AF50 | |
| AF63 | |
| AF75 | |
| AF95B | |
| GAF75 | |
| A9 | |
| A12 | |
| A16 | |
| A26 | |
| A30 | |
| A40 | |
| A45 | |
| A50 | |
| A63 | |
| A75 | |
| A95 | |
| A110 | |
| AL9 | |
| AL9Z | |
| AL12 | |
| AL12Z | |
| AL16 | |
| AL16Z | |
| AL26 | |
| AL30 | |
| AL40 | |
| AE45 | |
| AE50 | |
| AE63 | |
| AE75 | |
| TAL9 | |
| TAL12 | |
| TAL16 | |
| TAL26 | |
| TAL30 | |
| TAL40 | |
| TAE45 | |
| TAE50 | |
| TAE75 | |
| GA75 | |
| GAE75 | |
| UA16 | |
| UA26 | |
| UA30 | |
| UA50 | |
| UA63 | |
| UA75 | |
| UA95 | |
| UA110 | |
| UA16RA | |
| UA26RA | |
| UA30RA | |
| UA50RA | |
| UA63RA | |
| UA75RA | |
| UA95RA | |
| UA110RA | |
| UAF75RA | |
| UAF95RA | |
| UAF110RA | |
| N22E | |
| N31E | |
| N40E | |
| NL22E | |
| NLZ22E | |
| NL31E | |
| NLZ31E | |
| NL40E | |
| NLZ40E | |
| TNL22E | |
| TNL31E | |
| TNL40E | |
| Product Name | Auxiliary Contact Block |
| Remarks | 100 |
| Material Compliance | |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| REACH Declaration | 2CMT2021-006202 |
| RoHS Declaration | 2CMT2021-006277 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Toxic Substances Control Act - TSCA | 2CMT2023-006525 |
| WEEE B2C / B2B | Business To Business |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| Certificates and Declarations | |
| CB Certificate | CB_SE_30112 |
| CCC Certificate | CCC_2013010304604041 |
| CCC_2004010305133985 | |
| CQC Certificate | CQC2013010304604041 |
| CQC2004010305133985 | |
| CSA Certificate | CSA_1033838 |
| Declaration of Conformity - CCC | 2020980304001626 |
| 2020980305001185 | |
| Declaration of Conformity - CE | 1SBD250809U1000 |
| Declaration of Conformity - UKCA | 1SBD250826U1000 |
| DNV GL Certificate | DNV_GL_TAE00001UT |
| EAC Certificate | EAC_RU C-FR ME77 B03391 |
| GOST Certificate | GOST_POCCFRME77B07175 |
| UL Certificate | UL_071301E48139 |
| Container Information | |
| Package Level 1 Units | bag 60 piece |
| Package Level 1 Width | 65 mm |
| Package Level 1 Depth / Length | 129.5 mm |
| Package Level 1 Height | 9.5 mm |
| Package Level 1 Gross Weight | 0.84 kg |
| Package Level 1 EAN | 3471522121554 |
| External Classifications and Standards | |
| Object Classification Code | K |
| ETIM 7 | EC000041 - Auxiliary contact block |
| ETIM 8 | EC000041 - Auxiliary contact block |
| ETIM 9 | EC000041 - Auxiliary contact block |
| eClass | V11.0 : 27371302 |
| UNSPSC | 39121500 |
