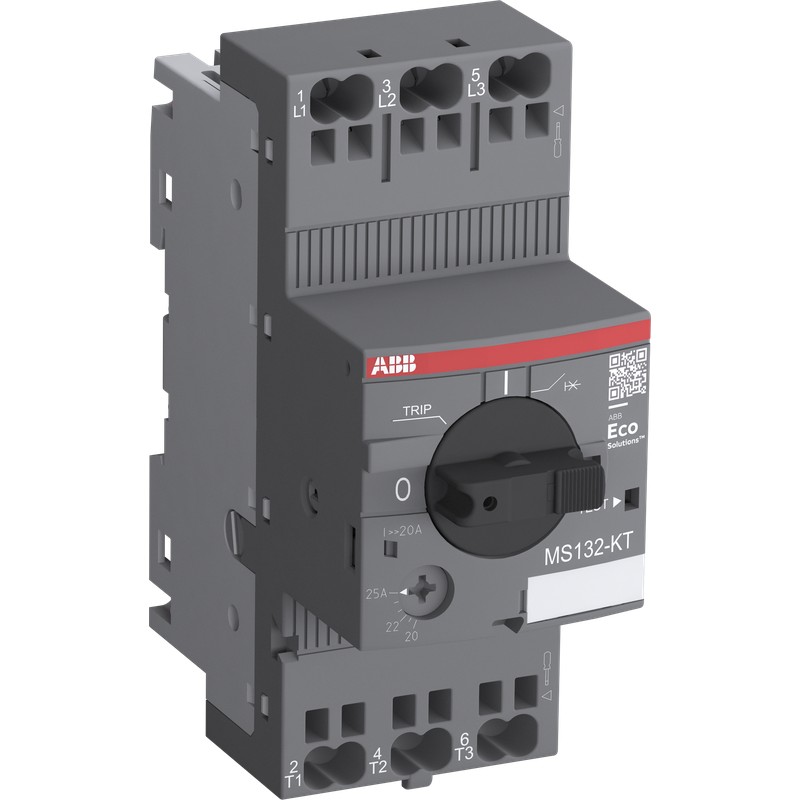

1SAM340010R1004 ABB MS132-0.63KT Circuit Breaker for Primary Transformer Protection 0.40 ... 0.63 A
1SAM340010R1004
ABB
MS132-0.63KT Circuit Breaker for Primary Transformer Protection 0.40 ... 0.63 A
Electronic motor protection relays
* Brand new product in its original packaging covered by the warranties and certifications provided by ABB
Best sellers
▲More info
▲- Extended Product Type:
- MS132-0.63KT
- Product ID:
- 1SAM340010R1004
- EAN:
- 4013614535147
- Catalog Description:
- MS132-0.63KT Circuit Breaker for Primary Transformer Protection 0.40 ... 0.63 A
- Long Description:
- The circuit breaker for transformer protection MS132-0.63KT is a compact 45 mm width device designed to protect control transformers on the primary side. This device has a rated operational current of Ie = 0.63 A with Push-In Spring terminals. It allows fuseless protection against overload and short-circuit. The short-circuit current setting is fixed to 20 times the rated operational current to handle the high inrush current generated by transformers. The device allows manually connect and disconnect the transformer from the mains thanks of its built-in disconnection function. The circuit breaker for transformer protection offers a rated service short-circuit breaking capacity of Ics = 100 kA at 400 VAC and trip class 10. Further features are temperature compensation, trip-free mechanism, rotary handle with a clear switch position indication and short circuit trip indicator. The handle is lockable to protect against unauthorized changes. Auxiliary contacts, signalling contacts, undervoltage releases, shunt trips and terminal spacers are available as accessory.
+
–
Accessories
| Identifier | Description | Type | Qty | Unit Of Measure |
|---|---|---|---|---|
| 1SAM201901R1001 | HKF1-11 Auxiliary Contact | HKF1-11 | 1 | piece |
| 1SAM201901R1201 | HKF1-11K Auxiliary Contact | HKF1-11K | 1 | piece |
| 1SAM201901R1002 | HKF1-20 Auxiliary Contact | HKF1-20 | 1 | piece |
| 1SAM201901R1202 | HKF1-20K Auxiliary Contact | HKF1-20K | 1 | piece |
| 1SAM201901R1004 | HKF1-01 Auxiliary Contact | HKF1-01 | 1 | piece |
| 1SAM201901R1003 | HKF1-10 Auxiliary Contact | HKF1-10 | 1 | piece |
| 1SAM201902R1002 | HK1-20 Auxiliary Contact | HK1-20 | 1 | piece |
| 1SAM201902R1202 | HK1-20K Auxiliary Contact | HK1-20K | 1 | piece |
| 1SAM201902R1001 | HK1-11 Auxiliary Contact | HK1-11 | 1 | piece |
| 1SAM201902R1201 | HK1-11K Auxiliary Contact | HK1-11K | 1 | piece |
| 1SAM201902R1003 | HK1-02 Auxiliary Contact | HK1-02 | 1 | piece |
| 1SAM201902R1203 | HK1-02K Auxiliary Contact | HK1-02K | 1 | piece |
| 1SAM201902R1004 | HK1-20L Auxiliary Contact | HK1-20L | 1 | piece |
| 1SAM201902R1204 | HK1-20LK Auxiliary Contact | HK1-20LK | 1 | piece |
| 1SAM201903R1002 | SK1-20 Signaling Contact | SK1-20 | 1 | piece |
| 1SAM201903R1202 | SK1-20K Signaling Contact | SK1-20K | 1 | piece |
| 1SAM201903R1005 | SK1-20AR Signaling Contact | SK1-20AR | 1 | piece |
| 1SAM201903R1205 | SK1-20ARK Signaling Contact | SK1-20ARK | 1 | piece |
| 1SAM201903R1001 | SK1-11 Signaling Contact | SK1-11 | 1 | piece |
| 1SAM201903R1201 | SK1-11K Signaling Contact | SK1-11K | 1 | piece |
| 1SAM201903R1004 | SK1-11AR Signaling Contact | SK1-11AR | 1 | piece |
| 1SAM201903R1204 | SK1-11ARK Signaling Contact | SK1-11ARK | 1 | piece |
| 1SAM201903R1003 | SK1-02 Signaling Contact | SK1-02 | 1 | piece |
| 1SAM201903R1203 | SK1-02K Signaling Contact | SK1-02K | 1 | piece |
| 1SAM201903R1006 | SK1-02AR Signaling Contact | SK1-02AR | 1 | piece |
| 1SAM201903R1206 | SK1-02ARK Signaling Contact | SK1-02ARK | 1 | piece |
| 1SAM301901R1002 | CK1-20 Short Circuit Signaling Contact | CK1-20 | 1 | piece |
| 1SAM301901R1001 | CK1-11 Short Circuit Signaling Contact | CK1-11 | 1 | piece |
| 1SAM301901R1003 | CK1-02 Short Circuit Signaling Contact | CK1-02 | 1 | piece |
| 1SAM201910R1001 | AA1-24 Shunt Trip | AA1-24 | 1 | piece |
| 1SAM201910R1002 | AA1-110 Shunt Trip | AA1-110 | 1 | piece |
| 1SAM201910R1003 | AA1-230 Shunt Trip | AA1-230 | 1 | piece |
| 1SAM201910R1004 | AA1-400 Shunt Trip | AA1-400 | 1 | piece |
| 1SAM201904R1010 | UA1-20 Undervoltage Release | UA1-20 | 1 | piece |
| 1SAM201904R1001 | UA1-24 Undervoltage Release | UA1-24 | 1 | piece |
| 1SAM201904R1002 | UA1-48 Undervoltage Release | UA1-48 | 1 | piece |
| 1SAM201904R1003 | UA1-60 Undervoltage Release | UA1-60 | 1 | piece |
| 1SAM201904R1004 | UA1-110 Undervoltage Release | UA1-110 | 1 | piece |
| 1SAM201904R1008 | UA1-208 Undervoltage Release | UA1-208 | 1 | piece |
| 1SAM201904R1005 | UA1-230 Undervoltage Release | UA1-230 | 1 | piece |
| 1SAM201904R1006 | UA1-400 Undervoltage Release | UA1-400 | 1 | piece |
| 1SAM201904R1007 | UA1-415 Undervoltage Release | UA1-415 | 1 | piece |
| 1SAM201904R1009 | UA1-575 Undervoltage Release | UA1-575 | 1 | piece |
| 1SAM301903R1002 | PS1-2-0-65K Busbar | PS1-2-0-65K | 1 | piece |
| 1SAM301903R1003 | PS1-3-0-65K Busbar | PS1-3-0-65K | 1 | piece |
| 1SAM301903R1004 | PS1-4-0-65K Busbar | PS1-4-0-65K | 1 | piece |
| 1SAM301903R1005 | PS1-5-0-65K Busbar | PS1-5-0-65K | 1 | piece |
| 1SAM301903R1012 | PS1-2-1-65K Busbar | PS1-2-1-65K | 1 | piece |
| 1SAM301903R1013 | PS1-3-1-65K Busbar | PS1-3-1-65K | 1 | piece |
| 1SAM301903R1014 | PS1-4-1-65K Busbar | PS1-4-1-65K | 1 | piece |
| 1SAM301903R1015 | PS1-5-1-65K Busbar | PS1-5-1-65K | 1 | piece |
| 1SAM201909R1001 | FS116 Screw Fixing Kit | FS116 | 1 | piece |
| 1SAM301913R1001 | TS1-M3-K Terminal Spacer | TS1-M3-K | 1 | piece |
| GJF1101903R0002 | SA2 Terminals and Installation Material | SA2 | 1 | piece |
| 1SAM201911R1012 | IB132-F Enclosure | IB132-F | 1 | piece |
| 1SAM201911R1010 | IB132-G Enclosure | IB132-G | 1 | piece |
| 1SAM201911R1011 | IB132-Y Enclosure | IB132-Y | 1 | piece |
| 1SAM201912R1010 | DMS132-G Door Mounting Kit | DMS132-G | 1 | piece |
| 1SAM201912R1011 | DMS132-Y Door Mounting Kit | DMS132-Y | 1 | piece |
| 1SAM201909R1021 | MSAH1 Shaft Supporter | MSAH1 | 1 | piece |
| 1SAM201920R1011 | MSHD-LTB Handles | MSHD-LTB | 1 | piece |
| 1SAM201920R1012 | MSHD-LTY Handles | MSHD-LTY | 1 | piece |
| 1SAM201920R1000 | MSH-AR Shaft Alignment Ring | MSH-AR | 1 | piece |
| 1SAM101923R0002 | MSMN Driver | MSMN | 1 | piece |
| 1SAM101923R0012 | MSMNO Driver | MSMNO | 1 | piece |
| 1SCA101647R1001 | OXS6X85 SHAFT | OXS6X85 | 1 | piece |
| 1SCA108043R1001 | OXS6X105 SHAFT | OXS6X105 | 1 | piece |
| 1SCA101655R1001 | OXS6X130 SHAFT | OXS6X130 | 1 | piece |
| 1SCA101659R1001 | OXS6X180 SHAFT | OXS6X180 | 1 | piece |
Ordering
- Minimum Order Quantity:
- 1 piece
- Customs Tariff Number:
- 85362010
Popular Downloads
- Data Sheet, Technical Information:
- 2CDC131058D0201
- Instructions and Manuals:
- 2CDC131158M6801
- Instructions and Manuals (Part 2):
- 2CDC131060M0202
- Time-Current Characteristic Curve:
- 1SAM300535F0004
- I²t Characteristic:
- 1SAM300517F0001
- CAD Dimensional Drawing:
- 2CDC001079B0201
- Marketing Video:
- 9AKK107991A4712
2CDC131153V0201
Dimensions
- Product Net Width:
- 45mm
- Product Net Height:
- 112mm
- Product Net Depth / Length:
- 87mm
- Product Net Weight:
- 0.256kg
Technical
- Rated Service Short-Circuit Breaking Capacity (Ics):
- (230 V AC) 100 kA
(400 V AC) 100 kA
- Rated Ultimate Short-Circuit Breaking Capacity (Icu):
- (400 V AC) 100 kA
- Rated Instantaneous Short-Circuit Current Setting (Ii):
- 12.6 A
- Setting Range:
- 0.40 ... 0.63 A
- Rated Operational Voltage:
- Main Circuit 690 V AC
- Rated Operational Current (Ie):
- 0.63 A
- Rated Frequency (f):
- Main Circuit 50 Hz
Main Circuit 60 Hz
- Rated Impulse Withstand Voltage (Uimp):
- Main Circuit 6 kV
- Rated Insulation Voltage (Ui):
- 690 V
- Power Loss:
- at Rated Operating Conditions per Pole 0.6 ... 1.5 W
- Number of Poles:
- 3
- Conventional Free-air Thermal Current (Ith):
- Main Circuit 0.63 A
- Degree of Protection:
- Housing IP20
Main Circuit Terminals IP20
- Pollution Degree:
- 3
- Electrical Durability:
- 50000 cycle
- Mechanical Durability:
- 100000 cycle
- Terminal Type:
- Push-in Spring Terminals
- Connecting Capacity Main Circuit:
- Flexible with Ferrule 1/2x 0.5 ... 4 mm²
Flexible with Insulated Ferrule 1x 0.5 ... 4 mm²
Flexible with Insulated Ferrule 2x 0.5 ... 2.5 mm²
Flexible 1/2x 0.75 ... 4 mm²
Solid 1/2x 1 ... 2.5 mm²
Stranded 1/2x 1 ... 6 mm²
- Wire Stripping Length:
- Main Circuit 12 mm
- Mounting Position:
- 1 ... 6
- Mounting on DIN Rail:
- TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715
TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715
- Minimum Mounting Distance:
- Electrical Conductive Board, Vertical 75 mm
Other Device Same Type, Horizontal 9 mm
Other Device Same Type, Vertical 150 mm
- Actuator Type:
- Rotary Handle
- Contact Position Indication:
- ON / OFF / TRIP
- Standards:
- IEC/EN 60947-1
IEC/EN 60947-2
IEC/EN 60947-4-1
Technical UL/CSA
- Short-Circuit Current Rating (SCCR):
- Any UL Listed Fuses or Circuit-Breakers, Tap Conductor Protection in Group Installations (480Y / 277 V AC) 65 kA
Any UL Listed Fuses or Circuit-Breakers, Tap Conductor Protection in Group Installations (600Y / 347 V AC) 47 kA
- Maximum Operating Voltage UL/CSA:
- Main Circuit 600 V AC
- Full Load Amps Motor Use:
- (120 V AC) Single Phase 0.63 A
(220 ... 240 V AC) Single Phase 0.63 A
- Locked Rotor Amps:
- (120 V AC) Single Phase 3.78 A
(220 ... 240 V AC) Single Phase 3.78 A
- Connecting Capacity Main Circuit UL/CSA:
- Stranded 1/2x 18-10 AWG
Stranded 1x 8 AWG
Environmental
- Ambient Air Temperature:
- Around the Enclosure 0 ... +40 °C
Operation -25 ... +70 °C
Operation Compensated -25 ... +60 °C
Storage -50 ... +80 °C
- Ambient Air Temperature Compensation:
- Yes
- Maximum Operating Altitude Permissible:
- 2000 m
- Resistance to Shock acc. to IEC 60068-2-27:
- 11 ms Pulse 25g
- Resistance to Vibrations acc. to IEC 60068-2-6:
- 5g / 3 ... 150 Hz
- RoHS Status:
- Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Certificates and Declarations
- CQC Certificate:
- CQC2017010307034621
- Declaration of Conformity - CCC:
- 2020980307004600
- Declaration of Conformity - CE:
- 1SAD101100-3404
- Declaration of Conformity - UKCA:
- 1SAD201100-3404
- I²t Characteristic:
- 1SAM300517F0001
- KC Certificate:
- 1SAA963002-1502
- RMRS Certificate:
- 1SAA918000-0704
- UL Certificate:
- E137861-20090225
Container Information
- Package Level 1 Units:
- box 1 piece
- Package Level 1 Width:
- 50 mm
- Package Level 1 Depth / Length:
- 117 mm
- Package Level 1 Height:
- 82 mm
- Package Level 1 Gross Weight:
- 0.282 kg
- Package Level 1 EAN:
- 4013614535147
- Package Level 2 Units:
- carton 28 piece
- Package Level 2 Width:
- 280 mm
- Package Level 2 Depth / Length:
- 395 mm
- Package Level 2 Height:
- 210 mm
- Package Level 2 Gross Weight:
- 13.386 kg
- Package Level 2 EAN:
- 4013614535451
Classifications
- Object Classification Code:
- F
- ETIM 5:
- EC000228 - Power circuit-breaker for trafo/generator/installation prot.
- ETIM 6:
- EC000228 - Power circuit-breaker for trafo/generator/installation prot.
- ETIM 7:
- EC000228 - Power circuit-breaker for trafo/generator/installation protection
- ETIM 8:
- EC000228 - Power circuit-breaker for trafo/generator/installation protection
- eClass:
- V11.0 : 27370409
- UNSPSC:
- 39121601
- IDEA Granular Category Code (IGCC):
- 4813 >> Circuit breakers
- E-Number (Finland):
- 3709081
