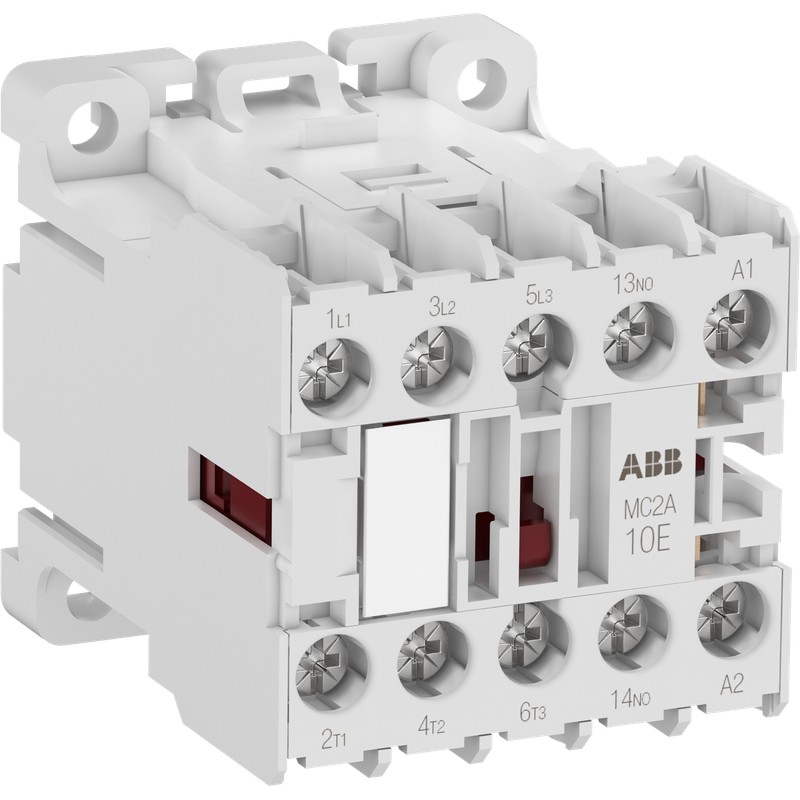

1SAL103567R9902 ABB MC2A301ATU Mini Contactor
1SAL103567R9902
ABB
MC2A301ATU Mini Contactor
The MC2A301ATU mini contactor is a dimension optimized 3 pole contactor with 1 NC auxiliary contact and screw terminals. This device is a great solution when high performances are needed but the space is limited. Mini contactors are used in residential buldings, commercial buildings and industrial applications for the control of single or three-phase loads up to 5.5 kW (AC-3) and 20 A / 690 V (AC-1) or switching of control signals. The product is suitable for wall or rail mounting.
Low-voltage industrial components > Power contactor, AC switching
Contactors and overload relays
Brand new product in its original packaging covered by the warranties and certifications provided by ABB
Best sellers
▲More info
▲b'
General Information
Extended Product Type:
MC2A301ATU
Product ID:
1SAL103567R9902
EAN:
4013614544279
Catalog Description:
MC2A301ATU Mini Contactor 3NO AUX 1NC 380-400V 50Hz/440V60Hz
Long Description:
The MC2A301ATU mini contactor is a dimension optimized 3 pole contactor with 1 NC auxiliary contact and screw terminals. This device is a great solution when high performances are needed but the space is limited. Mini contactors are used in residential buldings, commercial buildings and industrial applications for the control of single or three-phase loads up to 5.5 kW (AC-3) and 20 A / 690 V (AC-1) or switching of control signals. The product is suitable for wall or rail mounting.
Ordering
Minimum Order Quantity:
1 piece
Customs Tariff Number:
85365080
Popular Downloads
Instructions and Manuals:\n2CDC103061M6801
Dimensions
Product Net Width:
45 mm
Product Net Height:
48 mm
Product Net Depth / Length:
56 mm
Product Net Weight:
0.17 kg
Technical
Number of Poles:
3
Mini Contactor Type:
Mini Contactor
Rated Operational Voltage:
Auxiliary Circuit 690 V AC
Auxiliary Circuit 440 V DC
Main Circuit 690 V AC
Main Circuit 440 V DC
Rated Frequency (f):
Auxiliary Circuit 50 Hz
Auxiliary Circuit 60 Hz
Auxiliary Circuit DC
Control Circuit 50 Hz
Control Circuit 60 Hz
Main Circuit 50 Hz
Main Circuit 60 Hz
Main Circuit DC
Rated Impulse Withstand Voltage (Uimp):
Auxiliary Circuit 6 kV
Main Circuit 6 kV
Rated Insulation Voltage (Ui):
750 V
Number of Main Contacts NC:
0
Number of Main Contacts NO:
3
Rated Operational Current AC-1 (Ie):
(690 V) 55 °C 20 A
(690 V) 70 °C 16 A
(230 V) 55 °C 20 A
(230 V) 70 °C 16 A
(400 V) 55 °C 20 A
(400 V) 70 °C 16 A
(500 V) 55 °C 20 A
(500 V) 70 °C 16 A
Rated Operational Power AC-3 (Pe):
(230 V) Three Phase 3 kW
(400 V) Three Phase 5.5 kW
(500 V) Three Phase 5.5 kW
(690 V) Three Phase, NO 4 kW
Rated Short-time Withstand Current (Icw):
at 40 °C Ambient Temp, in Free Air, from a Cold State 10 s 96 A
Number of Auxiliary Contacts NC:
1
Number of Auxiliary Contacts NO:
0
Rated Operational Current AC-15 (Ie):
(240 V) 6 A
(400 V) 4 A
(500 V) 2.5 A
(690 V) 1.5 A
Rated Operational Current DC-13 (Ie):
(24 V) 5 A
(48 V) 2.5 A
(125 V) 0.7 A
(250 V) 0.3 A
(440 V) 0.15 A
Conventional Free-air Thermal Current (Ith):
Auxiliary Circuit 16 A
Main Circuit 20 A
Rated Control Circuit Voltage (Uc):
50 Hz 380 ... 400 V AC
60 Hz 440 V AC
Coil Operating Limits:
(acc. to IEC 60947-4-1) for AC supply 0.85 ... 1.1 x Uc (at θ ≤ 55 °C)
Degree of Protection:
Auxiliary Circuit Terminals IP20
Control Circuit Terminals IP20
Main Circuit Terminals IP20
Mechanical Durability:
10000000 cycle
Minimum Switching Capacity:
Auxiliary Circuit 17 V
Auxiliary Circuit 5 mA
Maximum Electrical Switching Frequency:
(AC-1) 300 cycles per hour
(AC-15) 360 cycles per hour
(AC-3) 1200 cycles per hour
(DC-1) 600 cycles per hour
(DC-13) 360 cycles per hour
(DC-3) 600 cycles per hour
Connecting Capacity Main Circuit:
Flexible with Ferrule 1x 0.75 ... 2.5 mm²
Flexible with Ferrule 2x 0.75 ... 1.5 mm²
Flexible with Insulated Ferrule 1x 0.75 ... 2.5 mm²
Flexible with Insulated Ferrule 2x 0.75 ... 1.5 mm²
Flexible 1/2x 0.75 ... 2.5 mm²
Rigid 1x 0.75 ... 4 mm²
Rigid 2x 0.75 ... 2.5 mm²
Connecting Capacity Auxiliary Circuit:
Flexible with Ferrule 1x 0.75 ... 2.5 mm²
Flexible with Ferrule 2x 0.75 ... 1.5 mm²
Flexible with Insulated Ferrule 1x 0.75 ... 2.5 mm²
Flexible with Insulated Ferrule 2x 0.75 ... 1.5 mm²
Flexible 1/2x 0.75 ... 2.5 mm²
Rigid 1x 0.75 ... 4 mm²
Rigid 2x 0.75 ... 2.5 mm²
Connecting Capacity Control Circuit:
Flexible with Ferrule 1x 0.75 ... 2.5 mm²
Flexible with Ferrule 2x 0.75 ... 1.5 mm²
Flexible with Insulated Ferrule 1x 0.75 ... 2.5 mm²
Flexible with Insulated Ferrule 2x 0.75 ... 1.5 mm²
Flexible 1/2x 0.75 ... 2.5 mm²
Rigid 1/2x 0.75 ... 2.5 mm²
Wire Stripping Length:
Auxiliary Circuit 9 mm
Control Circuit 9 mm
Main Circuit 9 mm
Tightening Torque:
Auxiliary Circuit 0.8 ... 1.0 N·m
Control Circuit 0.8 N·m
Main Circuit 0.8 ... 1.0 N·m
Mounting on DIN Rail:
TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715
TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715
Power Loss:
at Rated Operating Conditions AC-1 per Pole 0.7 W
Standards:
IEC/EN 60947-1
IEC/EN 60947-4-1
IEC/EN 60947-5-1
UL 60947-1
UL 60947-4-1
UL 60947-5-1
Technical UL/CSA
Maximum Operating Voltage UL/CSA:
Main Circuit 600 V AC
Full Load Amps Motor Use:
(115 V AC) Single Phase 9.8 A
(200 V AC) Three Phase 11 A
(230 V AC) Single Phase 12 A
(240 V AC) Three Phase 9.6 A
(380 ... 415 V AC) Three Phase 9.7 A
(440 ... 480 V AC) Three Phase 11 A
(550 ... 600 V AC) Three Phase 11 A
Horsepower Rating UL/CSA:
(115 V AC) Single Phase 0.5 Hp
(200 V AC) Three Phase 3 Hp
(230 V AC) Single Phase 2 Hp
(240 V AC) Three Phase 3 Hp
(380 ... 415 V AC) Three Phase 5 Hp
(440 ... 480 V AC) Three Phase 7.5 Hp
(550 ... 600 V AC) Three Phase 10 Hp
General Use Rating UL/CSA:
(600 V AC) 20 A
Connecting Capacity Main Circuit UL/CSA:
Stranded 1/2x 18-12 AWG
Connecting Capacity Auxiliary Circuit UL/CSA:
Stranded 1/2x 18-12 AWG
Tightening Torque UL/CSA:
Auxiliary Circuit 7 in·lb
Control Circuit 7 in·lb
Main Circuit 7 in·lb
Environmental
Ambient Air Temperature:
Operation -40 ... +55 °C
Storage -55 ... +80 °C
Maximum Operating Altitude Permissible:
3000 m
Resistance to Shock acc. to IEC 60068-2-27:
11 ms Pulse 25g
Resistance to Vibrations acc. to IEC 60068-2-6:
5g / 3 ... 150 Hz
RoHS Status:
Following EU Directive 2011/65/EU
Certificates and Declarations (Document Number)
BV Certificate:\n1SAA971000-0201
CB Certificate:\n1SAA971000-2001
CCC Certificate:\n1SAA971000-3801
cULus Certificate:\ncUL_E191658
Declaration of Conformity - CE:\n1SAD938502-0305
EAC Certificate:\n1SAA971000-2701
Instructions and Manuals:\n2CDC103061M6801
RINA Certificate:\n1SAA971001-0801
RoHS Information:\n1SAD038501-0305
Container Information
Package Level 1 Units:
box 1 piece
Package Level 1 Width:
46 mm
Package Level 1 Height:
58 mm
Package Level 1 Depth / Length:
49 mm
Package Level 1 Gross Weight:
0.175 kg
Package Level 1 EAN:
4013614544279
Package Level 2 Units:
box 20 piece
Package Level 2 Width:
237 mm
Package Level 2 Height:
120 mm
Package Level 2 Depth / Length:
102 mm
Package Level 2 Gross Weight:
3.55 kg
Package Level 2 EAN:
4013614544712
Classifications
Object Classification Code:
Q
ETIM 5:
EC000066 - Magnet contactor, AC-switching
ETIM 6:
EC000066 - Power contactor, AC switching
ETIM 7:
EC000066 - Power contactor, AC switching
eClass:
7.0 27371003
UNSPSC:
39121529
| Feature Name | Feature Value |
|---|---|
| Rated control supply voltage AC 50 Hz (EF003978) | 380 V |
| Rated control supply voltage AC 60 Hz (EF003979) | 380 V |
| Voltage type for actuating (EF008242) | AC |
| Rated operation current Ie at AC-1, 400 V (EF001393) | 20 A |
| Rated operation current Ie at AC-3, 400 V (EF001392) | 12 A |
| Rated operation power at AC-3, 400 V (EF001364) | 5.5 kW |
| Rated operation current Ie at AC-4, 400 V (EF008495) | 9 A |
| Rated operation power at AC-4, 400 V (EF008496) | 4 kW |
| Rated operation power NEMA (EF011960) | 2.2371 kW |
| Modular version (EF001126) | No |
| Number of auxiliary contacts as normally open contact (EF001376) | 0 |
| Number of auxiliary contacts as normally closed contact (EF001377) | 1 |
| Type of electrical connection of main circuit (EF006819) | Screw connection |
| Number of normally closed contacts as main contact (EF001375) | 0 |
| Number of normally open contacts as main contact (EF001374) | 3 |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE MOTOR PROTECTION EN.pdf | 240 Mbytes |
|
| 1SAL103567R9902 1SAL103567R9902 EN_1SAL103567R9902.pdf | 430 Kbytes |
|
