NX-RS1201
NX020121B
NXRS1201
OMRON
1
Verfügbar Schiff am heute

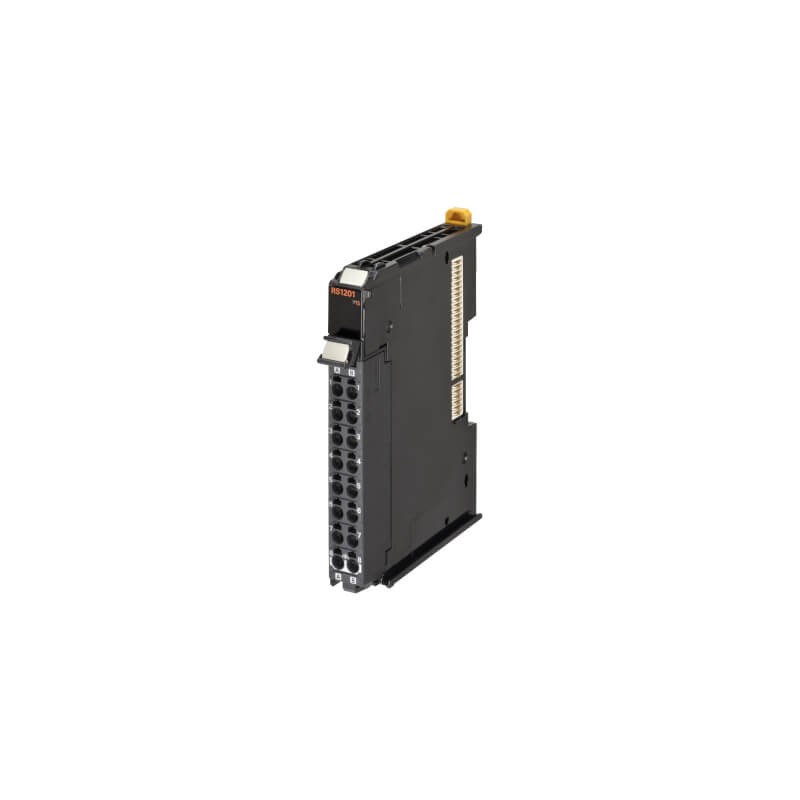

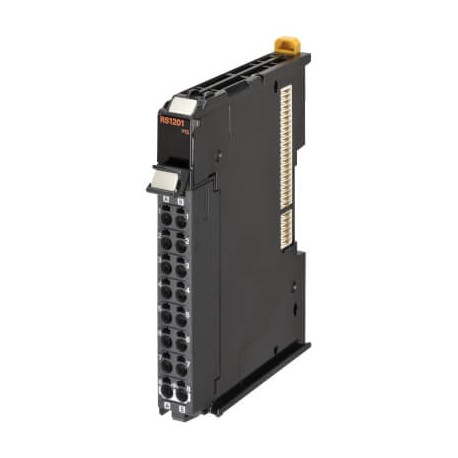

Laufwerk NX - 1 Eingang Wägezelle
NX-Einheit - 1 Wägezelleneingang
Programmierbare Maschinensteuerung- NX modulares E/A-System- 1 Wägezellen-Eingang- 24 bit, -5.0 – 5.0 mV/V- 125 µs- Schraublosklemmblock kodierbar- IP20- CE, cULus, KC
Integrierte Automatisierung > NX-series
* Neues Produkt in der Originalverpackung mit allen Garantien und Zertifizierungen von OMRON
Danke für Ihr Interesse an unseren Produkten, wir hoffen die Lieferzeit ist ok.
Während der Bestellung können Sie den für Sie bestmöglichen Versand wählen: Express 24h, Standard 48h/72h, etc.
I/O system | NX I/O Bus |
Type of module | Load cell |
Number of analog inputs | 1 |
Temperature input type | None |
Linear analog input type | Load cell |
Resolution of the analog inputs | 24 Bit |
Input circuit type | Differential |
Number of analog outputs | 0 |
Linear analog output type | None |
Resolution of the analog outputs | 0 Bit |
Conversion time | 0.125 ms/unit |
Signal processing | Free running, Synchronous |
IO link master | |
I/O connection type | Push-in |
Number of I/O connectors | 1 |
Detachable I/O connector | |
Suitable for safety functions | |
SIL according to IEC 61508 | None |
With certification | |
Degree of protection (IP) | IP20 |
Height | 100 mm |
Width | 12 mm |
Depth | 71 mm |
Weight | 70 g |
Titel: | Größe: | Typ: |
---|---|---|
PDF KATALOG OMRON DE.pdf | 91 Mbytes | |
NX-RS1201 NXRS1201 NX020121B DE_NX-RS1201.pdf | 2 Mbytes | |
NX-RS1201 NXRS1201 NX020121B nx_had_brochure_en.pdf | 2 Mbytes |
