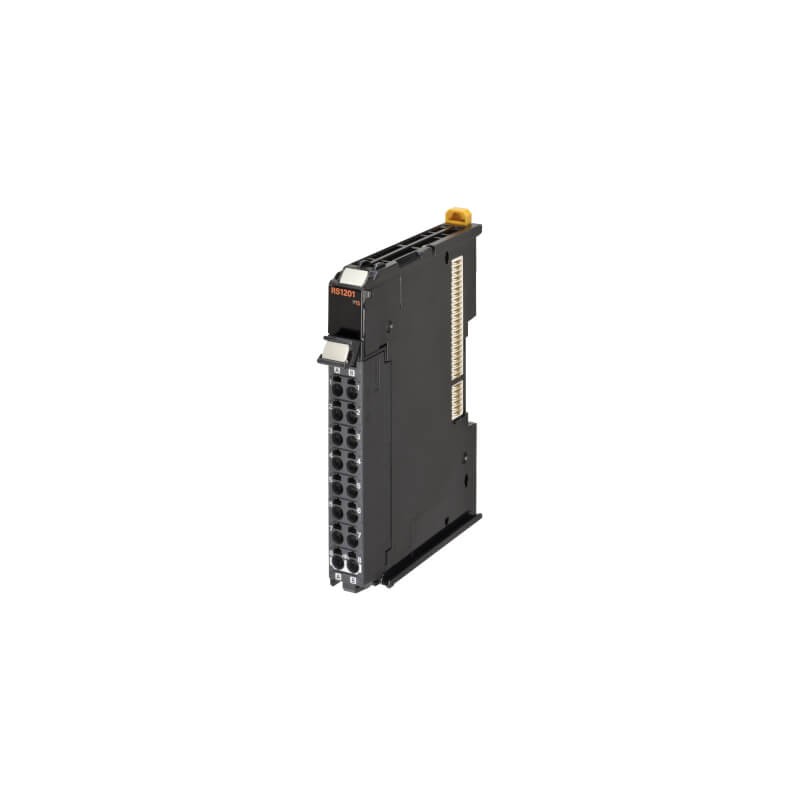

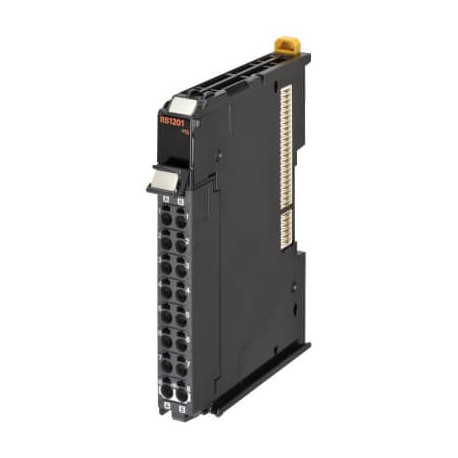

NX-RS1201 NX020121B 670275 OMRON NX Unit 1 Load Cell Input
NX-RS1201
NX020121B
NXRS1201
OMRON
Unit NX - 1 Input of load Cell
1 x Load Cell input, -5.0 to 5.0 mV/V, 24 bit, 125 µs, screwless push-in connector, 12 mm wide
Integrated Automation > Machine I/O NX-series
* Brand new product in its original packaging covered by the warranties and certifications provided by OMRON
More info
▲Specifications
| I/O system | NX I/O Bus |
| Type of module | Load cell |
| Number of analog inputs | 1 |
| Temperature input type | None |
| Linear analog input type | Load cell |
| Resolution of the analog inputs | 24 Bit |
| Input circuit type | Differential |
| Number of analog outputs | 0 |
| Linear analog output type | None |
| Resolution of the analog outputs | 0 Bit |
| Conversion time | 0.125 ms/unit |
| Signal processing | Free running, Synchronous |
| IO link master | |
| I/O connection type | Push-in |
| Number of I/O connectors | 1 |
| Detachable I/O connector | |
| Suitable for safety functions | |
| SIL according to IEC 61508 | None |
| With certification | |
| Degree of protection (IP) | IP20 |
| Height | 100 mm |
| Width | 12 mm |
| Depth | 71 mm |
| Weight | 70 g |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| NX-RS1201 NXRS1201 NX020121B DE_NX-RS1201.pdf | 2 Mbytes |
 |
| NX-RS1201 NXRS1201 NX020121B nx_had_brochure_en.pdf | 2 Mbytes |
|
