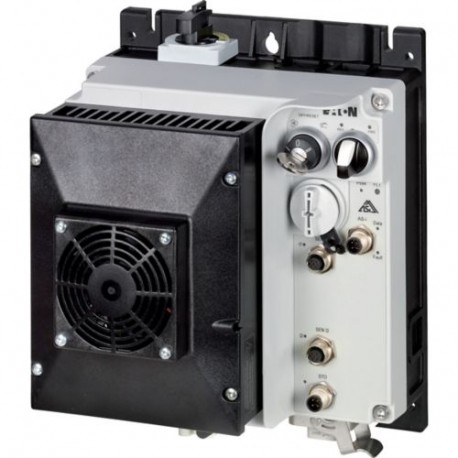

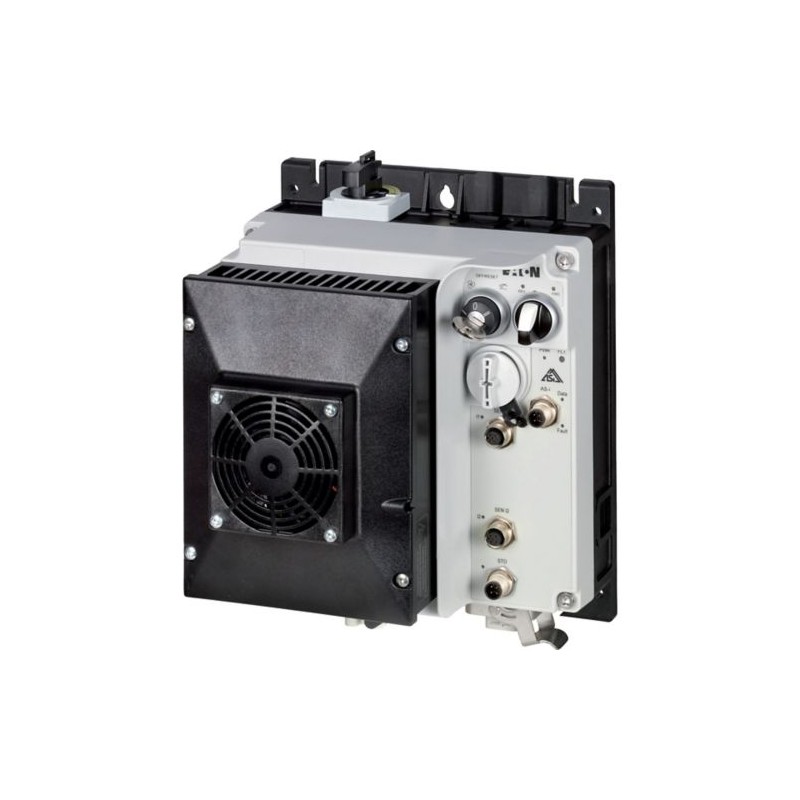

RASP5-8400A31-412R111S1 198864 Y7-198864 EATON ELECTRIC RASP5-8400A31-412R111S1 Vergrößern
Die Bilder sind nur orientativ. Bitte prüfen Sie das Artikelstammdatenblatt.

RASP5-8400A31-412R111S1 198864 Y7-198864 EATON ELECTRIC RASP5-8400A31-412R111S1

RASP5-8400A31-412R111S1

198864

Y7-198864

EATON-MOELLER

RASP5-8400A31-412R111S1

Eaton Moeller® series Rapid Link - Speed controllers, 8.5 A, 4 kW, Sensor input 4, AS-Interface®, S-7.4 for 31 modules, HAN Q4/2, with manual override switch, with braking resistance, STO (Safe Torque Off), with fan

Drehzahlregler, 8,5 A, 4 kW, Sensoreingang 4, AS-Interface, S-7.4 für 31 Module®, HAN Q4/2, mit Handüberbrückungsschalter, mit Bremswiderstand, STO (Safe Torque Off), mit Lüfter

Mehr Infos


Niederspannungsschaltgeräte > Frequenzumrichter unter 1 kV

Rapid Link Starter

Neues Produkt in der Originalverpackung mit allen Garantien und Zertifizierungen von EATON-MOELLER

Gesamtpreis: $2,011.96
Stückpreis: $2,011.96
Dieser Preis ist pro Einheit und ist der Nettowert (ohne Steuern, falls zutreffend).

Wenn unser Preis nicht der beste ist, fragen Sie uns nach einem Angebot Fordern Sie ein Angebot

Related products

Bestseller

Mehr Infos



Allgemeine Spezifikation

Product Name
Eaton Moeller® series Rapid Link Speed controller
Catalog Number
198864
Product Length/Depth
195 mm
Product Height
270 mm
Product Width
220 mm
Product Weight
3.79 kg
Certifications
IEC/EN 61800-5-1
RoHS
UL approval
CE
UL 61800-5-1
Catalog Notes
EAN
4015081969227
Model Code
RASP5-8400A31-412R111S1

Merkmale und Funktionen

Features
Parameterization: drivesConnect mobile (App)
Internal and on heat sink, temperature-controlled Fan
Parameterization: Keypad
Parameterization: drivesConnect
Parameterization: Fieldbus
Diagnostics and reset on device and via AS-Interface
Fitted with:
Fan
Thermo-click with safe isolation
Key switch position OFF/RESET
Selector switch (Positions: REV - OFF - FWD)
Braking resistance
Control unit
Key switch position HAND
Manual override switch
Internal DC link
PTC thermistor monitoring
PC connection
Breaking resistance
IGBT inverter
Key switch position AUTO
Two sensor inputs through M12 sockets (max. 150 mA) for quick stop and interlocked manual operation
Functions
4-quadrant operation possible
3 fixed speeds
Brake chopper with braking resistance for dynamic braking
STO (Safe Torque Off)
1 potentiometer speed

Allgemein

Degree of protection
NEMA 12
IP65
Electromagnetic compatibility
1st and 2nd environments (according to EN 61800-3)
Overvoltage category
III
Product category
Speed controller
Protocol
ASI
AS-Interface profile cable: S-7.4 for 31 modules
Radio interference class
C1: for conducted emissions only
C2, C3: depending on the motor cable length, the connected load, and ambient conditions. External radio interference suppression filters (optional) may be necessary.
Rated impulse withstand voltage (Uimp)
2000 V
System configuration type
Phase-earthed AC supply systems are not permitted.
AC voltage
Center-point earthed star network (TN-S network)

Umgebungsbedingungen, Mechanik

Mounting position
Vertical
Shock resistance
15 g, Mechanical, According to IEC/EN 60068-2-27, 11 ms, Half-sinusoidal shock 11 ms, 1000 shocks per shaft
Vibration
Resistance: According to IEC/EN 60068-2-6
Resistance: 10 - 150 Hz, Oscillation frequency
Resistance: 57 Hz, Amplitude transition frequency on acceleration
Resistance: 6 Hz, Amplitude 0.15 mm

Klimatische Umweltbedingungen

Altitude
Above 1000 m with 1 % performance reduction per 100 m
Max. 2000 m
Ambient operating temperature - min
-10 °C
Ambient operating temperature - max
40 °C
Ambient storage temperature - min
-40 °C
Ambient storage temperature - max
70 °C
Climatic proofing
< 95 %, no condensation
In accordance with IEC/EN 50178

Hauptstromkreis

Current limitation
0.8 - 8.5 A, motor, main circuit
Adjustable, motor, main circuit
Delay time
< 10 ms, On-delay
< 10 ms, Off-delay
Efficiency
98 % (η)
Input current ILN at 150% overload
7.8 A
Leakage current at ground IPE - max
3.5 mA
Mains current distortion
120 %
Mains switch-on frequency
Maximum of one time every 60 seconds
Mains voltage - min
380 V
Mains voltage - max
480 V
Mains voltage tolerance
380 - 480 V (-10 %/+10 %, at 50/60 Hz)
Operating mode
BLDC motors
PM and LSPM motors
U/f control
Sensorless vector control (SLV)
Synchronous reluctance motors
Output frequency - min
0 Hz
Output frequency - max
500 Hz
Overload current
For 60 s every 600 s
At 40 °C
Overload current IL at 150% overload
12.7 A
Rated frequency - min
45 Hz
Rated frequency - max
66 Hz
Rated operational power at 380/400 V, 50 Hz, 3-phase
4 kW
Rated operational voltage
480 V AC, 3-phase
400 V AC, 3-phase
Resolution
0.1 Hz (Frequency resolution, setpoint value)
Starting current - max
200 %, IH, max. starting current (High Overload), For 2 seconds every 20 seconds, Power section
Supply frequency
50/60 Hz
Switching frequency
8 kHz, 4 - 32 kHz adjustable, fPWM, Power section, Main circuit
System configuration type
Phase-earthed AC supply systems are not permitted.
AC voltage
Center-point earthed star network (TN-S network)

Bemessungsbetriebsleistung

Assigned motor power at 460/480 V, 60 Hz, 3-phase
5 HP

Trennfunktion

Braking current
≤ 0.6 A (max. 6 A for 120 ms), Actuator for external motor brake
Braking torque
Adjustable to 100 % (I/Ie), DC - Main circuit
Switch-on threshold for the braking transistor
765 VDC

Kurzschlussfestigkeit

Rated conditional short-circuit current (Iq)
10 kA
Short-circuit protection (external output circuits)
Type 1 coordination via the power bus' feeder unit, Main circuit

Steuerkreis

Rated control voltage (Uc)
24 V DC (-15 %/+20 %, external via AS-Interface® plug)

Kommunikation

Communication interface
AS-Interface
Connection
Plug type: HAN Q4/2
Interfaces
Specification: S-7.4 (AS-Interface®)
Number of slave addresses: 31 (AS-Interface®)
Max. total power consumption from AS-Interface® power supply unit (30 V): 190 mA

Kabel

Cable length
C2 ≤ 5 m, maximum motor cable length
C3 ≤ 25 m, maximum motor cable length
C1 ≤ 1 m, maximum motor cable length

Bauartnachweis

10.2.2 Corrosion resistance
Meets the product standard's requirements.
10.2.3.1 Verification of thermal stability of enclosures
Meets the product standard's requirements.
10.2.3.2 Verification of resistance of insulating materials to normal heat
Meets the product standard's requirements.
10.2.3.3 Resist. of insul. mat. to abnormal heat/fire by internal elect. effects
Meets the product standard's requirements.
10.2.4 Resistance to ultra-violet (UV) radiation
Meets the product standard's requirements.
10.2.5 Lifting
Does not apply, since the entire switchgear needs to be evaluated.
10.2.6 Mechanical impact
Does not apply, since the entire switchgear needs to be evaluated.
10.2.7 Inscriptions
Meets the product standard's requirements.
10.3 Degree of protection of assemblies
Does not apply, since the entire switchgear needs to be evaluated.
10.4 Clearances and creepage distances
Meets the product standard's requirements.
10.5 Protection against electric shock
Does not apply, since the entire switchgear needs to be evaluated.
10.6 Incorporation of switching devices and components
Does not apply, since the entire switchgear needs to be evaluated.
10.7 Internal electrical circuits and connections
Is the panel builder's responsibility.
10.8 Connections for external conductors
Is the panel builder's responsibility.
10.9.2 Power-frequency electric strength
Is the panel builder's responsibility.
10.9.3 Impulse withstand voltage
Is the panel builder's responsibility.
10.9.4 Testing of enclosures made of insulating material
Is the panel builder's responsibility.
10.10 Temperature rise
The panel builder is responsible for the temperature rise calculation. Eaton will provide heat dissipation data for the devices.
10.11 Short-circuit rating
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.12 Electromagnetic compatibility
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.13 Mechanical function
The device meets the requirements, provided the information in the instruction leaflet (IL) is observed.

ETIM for 198864 Niederspannungsschaltgeräte (EC001857)
Merkmal Wert
Netzspannung (EF006780) 380 V
Netzfrequenz (EF006783) 50/60 Hz
Eingangsphasenzahl (EF007117) 3
Ausgangsphasenzahl (EF006998) 3
Max. Ausgangsfrequenz (EF007350) 500 Hz
Max. Ausgangsspannung (EF009560) 500 V
Nennausgangsstrom I2N (EF009561) 8.5 A
Max. abgegebene Leistung bei quadrat. Belastung bei Bemessungsausgangsspannung (EF007366) 4 kW
Max. abgegebene Leistung bei linearer Belastung bei Bemessungsausgangsspannung (EF007364) 4 kW
Leistungsaufnahme (EF000346) 95 W
Relative symmetrische Netzfrequenztoleranz (EF007454) 10 %
Relative symmetrische Netzspannungstoleranz (EF007453) 10 %
Anzahl der analogen Ausgänge (EF001995) 0
Anzahl der analogen Eingänge (EF001994) 0
Anzahl der digitalen Ausgänge (EF001993) 0
Anzahl der digitalen Eingänge (EF001992) 4
Mit Bedienelement (EF001538) true
Einsatz im Industriebereich zulässig (EF007294) true
Einsatz im Wohn- und Gewerbebereich zulässig (EF007295) true
Unterstützt Protokoll für TCP/IP (EF003050) false
Unterstützt Protokoll für PROFIBUS (EF003052) false
Unterstützt Protokoll für CAN (EF003053) false
Unterstützt Protokoll für INTERBUS (EF003054) false
Unterstützt Protokoll für ASI (EF003051) true
Unterstützt Protokoll für KNX (EF003055) false
Unterstützt Protokoll für Modbus (EF003057) false
Unterstützt Protokoll für Data-Highway (EF003058) false
Unterstützt Protokoll für DeviceNet (EF003059) false
Unterstützt Protokoll für SUCONET (EF003060) false
Unterstützt Protokoll für LON (EF003017) false
Unterstützt Protokoll für PROFINET IO (EF007525) false
Unterstützt Protokoll für PROFINET CBA (EF007524) false
Unterstützt Protokoll für SERCOS (EF006657) false
Unterstützt Protokoll für Foundation Fieldbus (EF007522) false
Unterstützt Protokoll für EtherNet/IP (EF007521) false
Unterstützt Protokoll für AS-Interface Safety at Work (EF007519) false
Unterstützt Protokoll für DeviceNet Safety (EF007520) false
Unterstützt Protokoll für INTERBUS-Safety (EF006662) false
Unterstützt Protokoll für PROFIsafe (EF007526) false
Unterstützt Protokoll für SafetyBUS p (EF007527) false
Unterstützt Protokoll für BACnet (EF011944) false
Unterstützt Protokoll für sonstige Bussysteme (EF003062) false
Anzahl der HW-Schnittstellen Industrial Ethernet (EF003020) 0
Anzahl der Schnittstellen PROFINET (EF006932) 0
Anzahl der HW-Schnittstellen seriell RS-232 (EF003021) 0
Anzahl der HW-Schnittstellen seriell RS-422 (EF003022) 0
Anzahl der HW-Schnittstellen seriell RS-485 (EF003023) 1
Anzahl der HW-Schnittstellen seriell TTY (EF003024) 0
Anzahl der HW-Schnittstellen USB (EF003025) 0
Anzahl der HW-Schnittstellen parallel (EF003026) 0
Anzahl der HW-Schnittstellen sonstige (EF003027) 1
Mit optischer Schnittstelle (EF003028) false
Mit PC-Anschluss (EF006107) true
Bremschopper integriert (EF007293) true
4-Quadrantenbetrieb möglich (EF006803) true
Art des Umrichters (EF006978) U converter
Schutzart (IP) (EF005474) IP65
Schutzart (NEMA) (EF011959) 12
Höhe (EF000040) 270 mm
Breite (EF000008) 220 mm
Tiefe (EF000049) 195 mm
