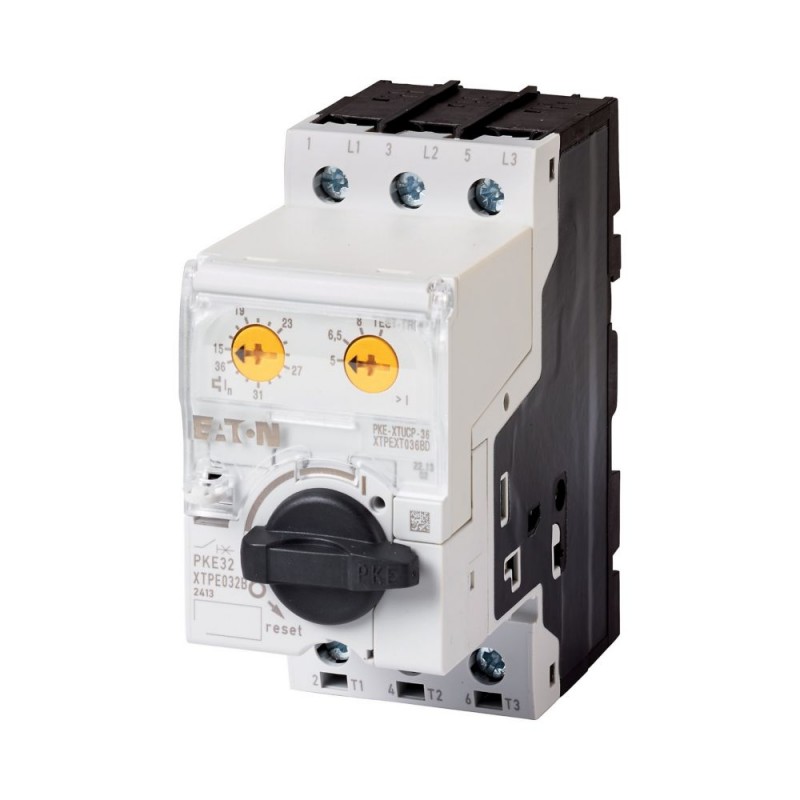

PKE32/XTUCP-36 168972 Y7-168972 EATON ELECTRIC Anlagenschutzschalter, 3-polig, 15 36 A, Standard
PKE32/XTUCP-36
168972
Y7-168972
EATON-MOELLER
Anlagenschutzschalter, 3-polig, 15 - 36 A, Standard
PKE32/XTUCP-36
Eaton Moeller® series PKE32 System-protective circuit-breaker, Complete device with standard knob, 15 - 36 A, 36 A, With overload release, Screw terminals
System-Schutzschalter Standard inkl. steckbarem/austauschbarem Auslöseblock mit Weitbereichs-Überlastschutz 15-36A und einstellbarem Kurzschlussschutz 75-288A.
Niederspannungsschaltgeräte > Leistungsschalter für Trafo-, Generator- und Anlagenschutz
Elektronische Leistungsschalter
Neues Produkt in der Originalverpackung mit allen Garantien und Zertifizierungen von EATON-MOELLER
Bestseller
▲Mehr Infos
▲Allgemeine Spezifikation
Product Name
Eaton Moeller® series PKE System-protective circuit-breaker
Catalog Number
168972
Product Length/Depth
101 mm
Product Height
102.5 mm
Product Width
45 mm
Product Weight
0.436 kg
Certifications
VDE 0660
IEC/EN 60947
IEC/EN 60947
Catalog Notes
EAN
4015081654635
Model Code
PKE32/XTUCP-36
Merkmale und Funktionen
Actuator type
Turn button
Features
Complete device with protection unit
Features
Complete device with protection unit
Fitted with:
Standard knob
Functions
Line and cable protection
System protection
Overload release
System protection
Overload release
Number of poles
Three-pole
Allgemein
Current flow times - min
1000 (Class 20) AC-4 cycle operation, Main conducting paths
900 (Class 15) AC-4 cycle operation, Main conducting paths
Note: Going below the minimum current flow time can cause overheating of the load (motor).
500 (Class 5) AC-4 cycle operation, Main conducting paths
700 (Class 10) AC-4 cycle operation, Main conducting paths
For all combinations with an SWD activation, you need not adhere to the minimum current flow times and minimum cut-out periods.
900 (Class 15) AC-4 cycle operation, Main conducting paths
Note: Going below the minimum current flow time can cause overheating of the load (motor).
500 (Class 5) AC-4 cycle operation, Main conducting paths
700 (Class 10) AC-4 cycle operation, Main conducting paths
For all combinations with an SWD activation, you need not adhere to the minimum current flow times and minimum cut-out periods.
Cut-out periods - min
≤ 500 ms, main conducting paths, AC-4 cycle operation
Degree of protection
IP20
Terminals: IP00
Terminals: IP00
Lifespan, electrical
50,000 operations (at 400V, AC-3)
Lifespan, mechanical
50,000 Operations (Main conducting paths)
Mounting Method
DIN rail (top hat rail) mounting optional
Operating frequency
60 Operations/h
Overload release current setting - min
15 A
Overload release current setting - max
36 A
Overvoltage category
III
Pollution degree
3
Product category
Circuit-breaker PKE
Protection
Finger and back-of-hand proof, Protection against direct contact when actuated from front (EN 50274)
Rated impulse withstand voltage (Uimp)
6000 V AC
Suitable for
DIN rail (top hat rail) mounting
Temperature compensation
-25 - 55 °C, Operating range
-5 - 40 °C to IEC/EN 60947, VDE 0660
-5 - 40 °C to IEC/EN 60947, VDE 0660
Umgebungsbedingungen, Mechanik
Shock resistance
25 g, Mechanical, according to IEC/EN 60068-2-27, Half-sinusoidal shock 10 ms
Klimatische Umweltbedingungen
Ambient operating temperature - min
-25 °C
Ambient operating temperature - max
55 °C
Ambient operating temperature (enclosed) - min
25 °C
Ambient operating temperature (enclosed) - max
40 °C
Ambient storage temperature - min
40 °C
Ambient storage temperature - max
80 °C
Climatic proofing
Damp heat, cyclic, to IEC 60068-2-30
Damp heat, constant, to IEC 60068-2-78
Damp heat, constant, to IEC 60068-2-78
Anschlussquerschnitte
Terminal capacity (flexible with ferrule)
2 x (1 - 6) mm², ferrule to DIN 46228
1 x (1 - 6) mm², ferrule to DIN 46228
1 x (1 - 6) mm², ferrule to DIN 46228
Terminal capacity (solid)
2 x (1 - 6) mm²
1 x (1 - 6) mm²
1 x (1 - 6) mm²
Stripping length (main cable)
10 mm
Tightening torque
1.7 Nm, Screw terminals, Main cable
1 Nm, Screw terminals, Control circuit cables
1 Nm, Screw terminals, Control circuit cables
Bemessungswerte
Rated frequency - min
50 Hz
Rated frequency - max
60 Hz
Rated operational current (Ie)
36 A
Rated operational voltage (Ue) - min
690 V
Rated operational voltage (Ue) - max
690 V
Rated uninterrupted current (Iu)
36 A
Kurzschlussfestigkeit
Short-circuit release
Trip block adjustable 5 - 8 x Ir
Delayed approx. 60 ms, Trip blocks
± 20% tolerance, Trip blocks
Basic device fixed 15.5 x Iu, Trip Blocks
Delayed approx. 60 ms, Trip blocks
± 20% tolerance, Trip blocks
Basic device fixed 15.5 x Iu, Trip Blocks
Kommunikation
Connection
Screw terminals
Ansprechpartner
Number of auxiliary contacts (change-over contacts)
0
Number of auxiliary contacts (normally closed contacts)
0
Number of auxiliary contacts (normally open contacts)
0
Bauartnachweis
Heat dissipation capacity Pdiss
0 W
Heat dissipation per pole, current-dependent Pvid
3.8 W
Rated operational current for specified heat dissipation (In)
32 A
10.2.2 Corrosion resistance
Meets the product standard's requirements.
10.2.3.1 Verification of thermal stability of enclosures
Meets the product standard's requirements.
10.2.3.2 Verification of resistance of insulating materials to normal heat
Meets the product standard's requirements.
10.2.3.3 Resist. of insul. mat. to abnormal heat/fire by internal elect. effects
Meets the product standard's requirements.
10.2.4 Resistance to ultra-violet (UV) radiation
Meets the product standard's requirements.
10.2.5 Lifting
Does not apply, since the entire switchgear needs to be evaluated.
10.2.6 Mechanical impact
Does not apply, since the entire switchgear needs to be evaluated.
10.2.7 Inscriptions
Meets the product standard's requirements.
10.3 Degree of protection of assemblies
Does not apply, since the entire switchgear needs to be evaluated.
10.4 Clearances and creepage distances
Meets the product standard's requirements.
10.5 Protection against electric shock
Does not apply, since the entire switchgear needs to be evaluated.
10.6 Incorporation of switching devices and components
Does not apply, since the entire switchgear needs to be evaluated.
10.7 Internal electrical circuits and connections
Is the panel builder's responsibility.
10.8 Connections for external conductors
Is the panel builder's responsibility.
10.9.2 Power-frequency electric strength
Is the panel builder's responsibility.
10.9.3 Impulse withstand voltage
Is the panel builder's responsibility.
10.9.4 Testing of enclosures made of insulating material
Is the panel builder's responsibility.
10.10 Temperature rise
The panel builder is responsible for the temperature rise calculation. Eaton will provide heat dissipation data for the devices.
10.11 Short-circuit rating
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.12 Electromagnetic compatibility
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.13 Mechanical function
The device meets the requirements, provided the information in the instruction leaflet (IL) is observed.
| Merkmal | Wert |
|---|---|
| Bemessungsdauerstrom Iu (EF001389) | 36 A |
| Bemessungsspannung (EF003977) | 690 V |
| Bemessungsgrenzkurzschlussausschaltstrom Icu bei 400 V, 50 Hz (EF007048) | 50 kA |
| Überlastauslöser Stromeinstellung (EF002336) | 15 A |
| Einstellbereich des kurzzeitverzögerten Kurzschlussauslösers (EF007129) | 75 A |
| Einstellbereich des unverzögerten Kurzschlussauslösers (EF007131) | 496 A |
| Gerätebauart (EF008240) | Einbaugerät Festeinbautechnik |
| Integrierter Erdschlussschutz (EF007296) | Nein |
| Anschlussart Hauptstromkreis (EF006819) | Schraubanschluss |
| Geeignet für Hutschienenmontage (EF007250) | Ja |
| Hutschienenmontage optional (EF008904) | Ja |
| Anzahl der Hilfskontakte als Öffner (EF001377) | 0 |
| Anzahl der Hilfskontakte als Schließer (EF001376) | 0 |
| Anzahl der Hilfskontakte als Wechsler (EF003531) | 0 |
| Mit Ausgelöstmelder (EF007006) | Nein |
| Mit integriertem Unterspannungsauslöser (EF001390) | Nein |
| Polzahl (EF001391) | 3 |
| Position des Anschlusses für Hauptstromkreis (EF006671) | sonstige |
| Ausführung des Betätigungselements (EF006976) | Drehknopf |
| Komplettgerät mit Schutzeinheit (EF008906) | Ja |
| Motorantrieb integriert (EF006697) | Nein |
| Motorantrieb optional (EF007386) | Nein |
| Schutzart (IP) (EF005474) | IP20 |
