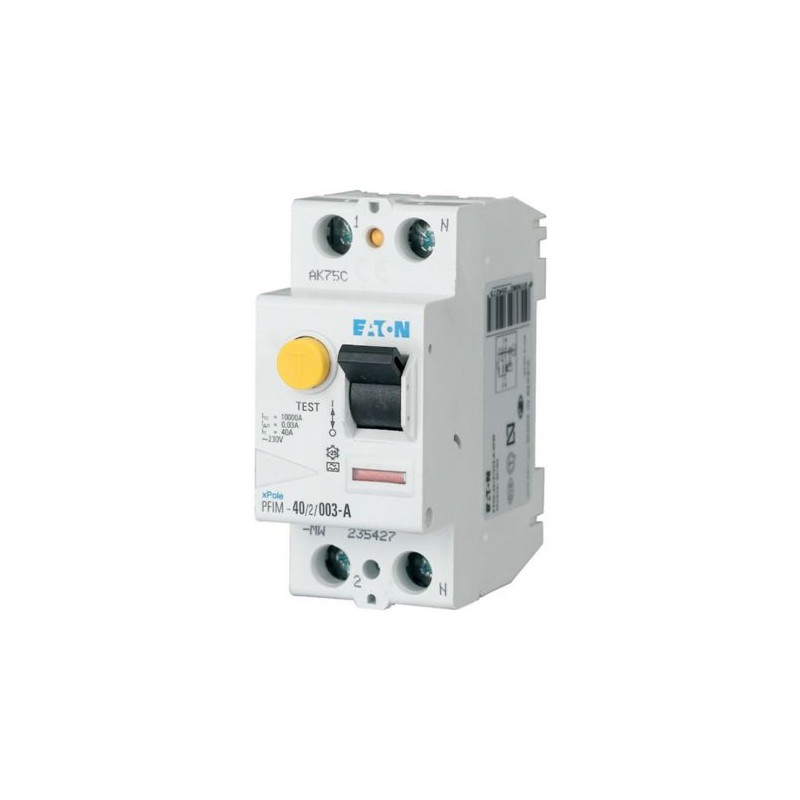

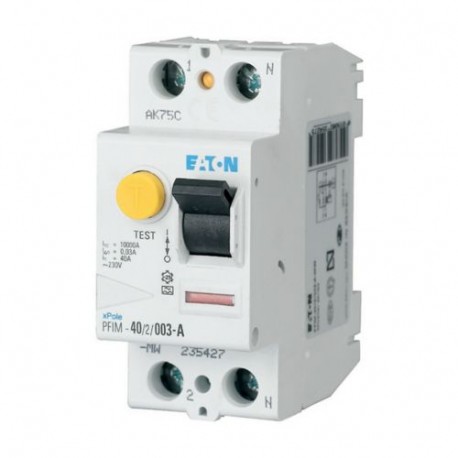

PFIM-25/2/003-110 100061 Y7-100061 EATON ELECTRIC FI-Schalter, 25A, 2p, 30mA, Typ AC
PFIM-25/2/003-110
100061
Y7-100061
EATON-MOELLER
FI-Schalter, 25A, 2p, 30mA, Typ AC
Int. differential-PFIM, 25A, 2p, 30mA, Klasse AC
PFIM-25/2/003-110. Residual current circuit breaker (RCCB), 25A, 2p, 30mA, type AC
Volles Spektrum an kompakten Fehlerstromschutzschaltern für eine Vielzahl von Anwendungen, für Fehler- und Zusatzschutz, große Anzahl verfügbarer Bemessungsbetriebsströme, umfangreiches Zubehörprogramm, Echtkontaktstellungsanzeige, automatischer Wiederanlauf möglich, geeignet für den Einsatz im Außenbereich (bauseitige Stromversorgung und Außenverteiler) bis -25 °C
Schutzschaltgeräte, Sicherungen > Fehlerstrom-Schutzschalter
Modulare Schaltanlage - Industrie
Neues Produkt in der Originalverpackung mit allen Garantien und Zertifizierungen von EATON-MOELLER
Bestseller
▲Mehr Infos
▲Allgemeine Spezifikation
Product Name
Eaton Moeller series xPole - PFIM Type AC, A, U, R RCCB
Catalog Number
100061
Product Length/Depth
80 mm
Product Height
71 mm
Product Width
35 mm
Product Weight
0.22 kg
Compliances
RoHS conform
Certifications
IEC/EN 61008
EAN
4015081005000
Model Code
PFIM-25/2/003-110
Delivery program
Application
Number of poles
Two-pole
Tripping time
Non-delayed
Amperage Rating
25 A
Rated short-circuit strength
10 kA
Fault current rating
30 mA
Sensitivity type
AC current sensitive
Impulse withstand current
Partly surge-proof 250 A
Type
- PFIM
- Residual current circuit breakers
- Type AC
Technical data - electrical
Voltage rating
110 V AC
Rated operational voltage (Ue) - max
110 V
Rated insulation voltage (Ui)
440 V
Rated impulse withstand voltage (Uimp)
4 kV
Rated fault current - min
0.03 A
Rated fault current - max
0.03 A
Frequency rating
50 Hz
Short-circuit rating
63 A (max. admissible back-up fuse)
Leakage current type
AC
Rated residual making and breaking capacity
500 A
Admissible back-up fuse overload - max
16 A gG/gL
Rated short-time withstand current (Icw)
10 kA
Surge current capacity
0.25 kA
Test circuit range
94 V AC - 121 V AC
Pollution degree
2
Lifespan, electrical
4000 operations
Technical data - mechanical
Frame
45 mm
Width in number of modular spacings
2
Built-in width (number of units)
35 mm (2 SU)
Built-in depth
70.5 mm
Mounting Method
Quick attachment with 2 latch positions for DIN-rail IEC/EN 60715
DIN rail
DIN rail
Degree of protection
IP20, IP40 with suitable enclosure
IP20
IP20
Terminals (top and bottom)
Open mouthed/lift terminals
Terminal capacity (solid wire)
1.5 mm² - 35 mm²
Connectable conductor cross section (solid-core) - min
1.5 mm²
Connectable conductor cross section (solid-core) - max
35 mm²
Terminal capacity (stranded cable)
16 mm² (2x)
Connectable conductor cross section (multi-wired) - min
1.5 mm²
Connectable conductor cross section (multi-wired) - max
16 mm²
Terminal protection
Finger and hand touch safe, DGUV VS3, EN 50274
Busbar material thickness
0.8 mm - 2 mm
Lifespan, mechanical
20000 operations
Permitted storage and transport temperature - min
-25 °C
Permitted storage and transport temperature - max
60 °C
Climatic proofing
25-55 °C / 90-95% relative humidity according to IEC 60068-2
Design verification as per IEC/EN 61439 - technical data
Rated operational current for specified heat dissipation (In)
25 A
Heat dissipation per pole, current-dependent
0 W
Equipment heat dissipation, current-dependent
2 W
Static heat dissipation, non-current-dependent
0 W
Heat dissipation capacity
0 W
Ambient operating temperature - min
-25 °C
Ambient operating temperature - max
55 °C
Design verification as per IEC/EN 61439
10.2.2 Corrosion resistance
Meets the product standard's requirements.
10.2.3.1 Verification of thermal stability of enclosures
Meets the product standard's requirements.
10.2.3.2 Verification of resistance of insulating materials to normal heat
Meets the product standard's requirements.
10.2.3.3 Resist. of insul. mat. to abnormal heat/fire by internal elect. effects
Meets the product standard's requirements.
10.2.4 Resistance to ultra-violet (UV) radiation
Meets the product standard's requirements.
10.2.5 Lifting
Does not apply, since the entire switchgear needs to be evaluated.
10.2.6 Mechanical impact
Does not apply, since the entire switchgear needs to be evaluated.
10.2.7 Inscriptions
Meets the product standard's requirements.
10.3 Degree of protection of assemblies
Does not apply, since the entire switchgear needs to be evaluated.
10.4 Clearances and creepage distances
Meets the product standard's requirements.
10.5 Protection against electric shock
Does not apply, since the entire switchgear needs to be evaluated.
10.6 Incorporation of switching devices and components
Does not apply, since the entire switchgear needs to be evaluated.
10.7 Internal electrical circuits and connections
Is the panel builder's responsibility.
10.8 Connections for external conductors
Is the panel builder's responsibility.
10.9.2 Power-frequency electric strength
Is the panel builder's responsibility.
10.9.3 Impulse withstand voltage
Is the panel builder's responsibility.
10.9.4 Testing of enclosures made of insulating material
Is the panel builder's responsibility.
10.10 Temperature rise
The panel builder is responsible for the temperature rise calculation. Eaton will provide heat dissipation data for the devices.
10.11 Short-circuit rating
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.12 Electromagnetic compatibility
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.13 Mechanical function
The device meets the requirements, provided the information in the instruction leaflet (IL) is observed.
Additional information
Accessories required
Z-HK 248432
Features
Residual current circuit breaker
Additional equipment possible
Additional equipment possible
Fitted with:
Interlocking device
Special features
- Current test marks as per inscription
- Maximum operating temperature is 55 °C: Starting at 40 °C, the max. permissible continuous current decreases by 3% for every 1 °C
- Tripping signal contact for subsequent installation Z-NHK 248434
Used with
KLV-TC-2 276240 (Compact enclosure)
Z-FW/LP 248296 (Remote control and automatic switching device)
Z-RC/AK-2MU 285385 (sealing cover set)
Z-FW/LP 248296 (Remote control and automatic switching device)
Z-RC/AK-2MU 285385 (sealing cover set)
| Merkmal | Wert |
|---|---|
| Polzahl (EF001391) | 2 |
| Bemessungsspannung (EF000228) | 110 V |
| Bemessungsstrom (EF000227) | 25 A |
| Bemessungsfehlerstrom (EF002358) | 0.03 A |
| Bemessungsisolationsspannung Ui (EF001366) | 440 V |
| Bemessungsstoßspannungsfestigkeit Uimp (EF011980) | 4 kV |
| Verlustleistung (EF005387) | 2 W |
| Montageart (EF000003) | DIN-Schiene |
| Fehlerstrom-Typ (EF002560) | AC |
| Selektiver-Typ (EF002561) | Nein |
| Kurzzeitverzögerter Typ (EF003604) | Nein |
| Kurzschlussfestigkeit (Icw) (EF002562) | 10 kA |
| Stoßstromfestigkeit (EF002564) | 0.25 kA |
| Spannungsart (EF000187) | AC |
| Mit Verriegelungsvorrichtung (EF007385) | Ja |
| Frequenz (EF005455) | 50 Hz |
| Zusatzeinrichtungen möglich (EF008148) | Ja |
| Schutzart (IP) (EF005474) | IP20 |
| Breite in Teilungseinheiten (EF002950) | 2 |
| Einbautiefe (EF000218) | 70.5 mm |
| Umgebungstemperatur während des Betriebs (EF007515) | -25 °C |
| Verschmutzungsgrad (EF002570) | 2 |
| Anschließbarer Leiterquerschnitt mehrdrähtig (EF007343) | 1.5 mm² |
| Anschließbarer Leiterquerschnitt eindrähtig (EF007337) | 1.5 mm² |
| RAL-Nummer (ähnlich) (EF003882) | 7035 |
| Explosionsgeschützt (EF004663) | Nein |
Datasheet - PDF
▲| Titel: | Größe: | Typ: |
|---|---|---|
| PDF EATON XEFFECT SWITCHGEAR RANGE EN.pdf | 8 Mbytes |
|
| PDF CATALOGUE EATON EN .pdf | 38 Mbytes |
|
| PFIM-25/2/003-110 Y7-100061 100061 ES_187358.pdf | 97 Kbytes |
|
