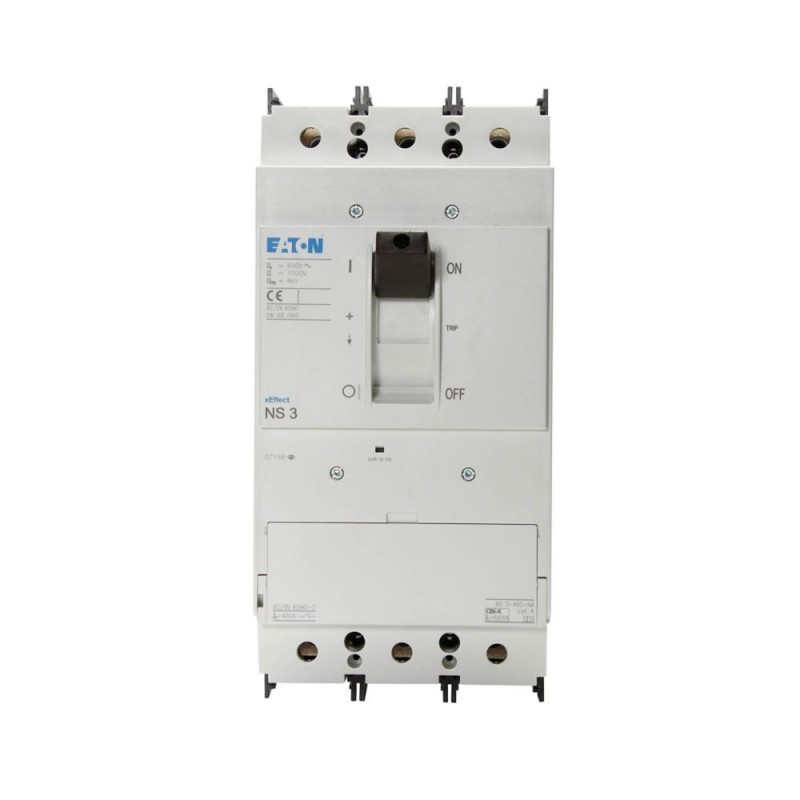

NS3-400-NA 102687 Y7-102687 EATON ELECTRIC Leistungsschalter, 3p, 400A
NS3-400-NA
102687
Y7-102687
EATON-MOELLER
Leistungsschalter, 3p, 400A
NS3-400-NA
Eaton Moeller series NZM - Molded Case Circuit Breaker. Molded Case Switch, 3p, 400A
Kompaktschalter, N3, Lasttrennschalter, 3-polig, Schaltvermögen SCCR 480Y/277 V 60 Hz Icu: 100 kA, S Schaltvermögen SCCR 600Y/347 V 60 Hz Icu: 50 kA, Bemessungsstrom = Bemessungsdauerstrom In = Iu: 400 A, Bemessungsstrom = Bemessungsdauerstrom In = Iu: 400 A, Norm/Zulassung: UL/CSA, IEC, Einbauart: Fest, Schraubanschluss, Schutzfunktion: Trennschalter/Hauptschalter
Niederspannungsschaltgeräte > Leistungsschalter für Trafo-, Generator- und Anlagenschutz
Leistungsschalter NZM
Neues Produkt in der Originalverpackung mit allen Garantien und Zertifizierungen von EATON-MOELLER
Related products
▲OFT ZUSAMMEN GEKAUFT
▲Bestseller
▲Mehr Infos
▲Allgemeine Spezifikation
Product Name
Eaton Moeller series NZM molded case switch
Catalog Number
102687
Product Length/Depth
159 mm
Product Height
275 mm
Product Width
140 mm
Product Weight
6.34 kg
Compliances
CE Marked
RoHS conform
RoHS conform
Certifications
CSA Std. C22.2 No. 5
UL 489
IEC 60947-2
Specially designed for North America
CSA-C22.2 No. 5-09
UL (Category Control Number WJAZ)
UL (File No. E148671)
UL listed
CSA certified
CSA (File No. 22086)
IEC
CE marking
UL/CSA
CSA (Class No. 4652-06)
UL 489
IEC 60947-2
Specially designed for North America
CSA-C22.2 No. 5-09
UL (Category Control Number WJAZ)
UL (File No. E148671)
UL listed
CSA certified
CSA (File No. 22086)
IEC
CE marking
UL/CSA
CSA (Class No. 4652-06)
EAN
4015081025473
Model Code
NS3-400-NA
Produktspezifikationen
Type
Switch-disconnector
Special features
Application
Branch circuits, feeder circuits
Amperage Rating
400 A
Voltage rating
690 V - 690 V
Circuit breaker frame type
N3
Features
Motor drive optional
Protection unit
Protection unit
10.10 Temperature rise
The panel builder is responsible for the temperature rise calculation. Eaton will provide heat dissipation data for the devices.
10.11 Short-circuit rating
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.12 Electromagnetic compatibility
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.13 Mechanical function
The device meets the requirements, provided the information in the instruction leaflet (IL) is observed.
10.2.2 Corrosion resistance
Meets the product standard's requirements.
10.2.3.1 Verification of thermal stability of enclosures
Meets the product standard's requirements.
10.2.3.2 Verification of resistance of insulating materials to normal heat
Meets the product standard's requirements.
10.2.3.3 Resist. of insul. mat. to abnormal heat/fire by internal elect. effects
Meets the product standard's requirements.
10.2.4 Resistance to ultra-violet (UV) radiation
Meets the product standard's requirements.
10.2.5 Lifting
Does not apply, since the entire switchgear needs to be evaluated.
10.2.6 Mechanical impact
Does not apply, since the entire switchgear needs to be evaluated.
10.2.7 Inscriptions
Meets the product standard's requirements.
10.3 Degree of protection of assemblies
Does not apply, since the entire switchgear needs to be evaluated.
10.4 Clearances and creepage distances
Meets the product standard's requirements.
10.5 Protection against electric shock
Does not apply, since the entire switchgear needs to be evaluated.
10.6 Incorporation of switching devices and components
Does not apply, since the entire switchgear needs to be evaluated.
10.7 Internal electrical circuits and connections
Is the panel builder's responsibility.
10.8 Connections for external conductors
Is the panel builder's responsibility.
10.9.2 Power-frequency electric strength
Is the panel builder's responsibility.
10.9.3 Impulse withstand voltage
Is the panel builder's responsibility.
10.9.4 Testing of enclosures made of insulating material
Is the panel builder's responsibility.
Pollution degree
3
Mounting Method
Fixed
Built-in device fixed built-in technique
DIN rail (top hat rail) mounting optional
Built-in device fixed built-in technique
DIN rail (top hat rail) mounting optional
Equipment heat dissipation, current-dependent
48 W
Ambient operating temperature - max
70 °C
Ambient operating temperature - min
-25 °C
Ambient storage temperature - max
70 °C
Ambient storage temperature - min
40 °C
Rated current (Iu)
600 A
Current rating (Iu) (UL 489 csa 22.2 no. 5.1)
600 A
Number of auxiliary contacts (change-over contacts)
0
Number of auxiliary contacts (normally closed contacts)
0
Number of auxiliary contacts (normally open contacts)
0
Switch positions
I, +, 0
Connection
Front screw
Degree of protection
In the area of the HMI devices: IP20 (basic protection type)
IP20
IP20
Direction of incoming supply
As required
Electrical connection type of main circuit
Screw connection
Lifespan, mechanical
15000 operations
Overvoltage category
III
Degree of protection (IP), front side
IP40 (with insulating surround)
IP66 (with door coupling rotary handle)
IP66 (with door coupling rotary handle)
Degree of protection (terminations)
IP10 (tunnel terminal)
IP00 (terminations, phase isolator and band terminal)
IP00 (terminations, phase isolator and band terminal)
Number of poles
Three-pole
Terminal capacity (copper strip)
NA: max. 10 segments of 32 mm x 1 mm + 5 segments of 32 mm x 1 mm at rear-side connection (punched)
10 segments of 50 mm x 1 mm (2x) at rear-side width extension
Max. 10 segments of 24 mm x 1 mm + 5 segments of 24 mm x 1 mm
Min. 6 segments of 16 mm x 0.8 mm at rear-side connection (punched)
NA: 10 segments of 50 mm x 1 mm (2x) at rear-side width extension
Min. 6 segments of 16 mm x 0.8 mm at box terminal
Max. 10 segments of 32 mm x 1 mm + 5 segments of 32 mm x 1 mm at rear-side connection (punched)
Max. 8 segments of 24 mm x 1 mm (2x) at box terminal
NA: min. 6 segments of 16 mm x 0.8 mm at rear-side connection (punched)
10 segments of 50 mm x 1 mm (2x) at rear-side width extension
Max. 10 segments of 24 mm x 1 mm + 5 segments of 24 mm x 1 mm
Min. 6 segments of 16 mm x 0.8 mm at rear-side connection (punched)
NA: 10 segments of 50 mm x 1 mm (2x) at rear-side width extension
Min. 6 segments of 16 mm x 0.8 mm at box terminal
Max. 10 segments of 32 mm x 1 mm + 5 segments of 32 mm x 1 mm at rear-side connection (punched)
Max. 8 segments of 24 mm x 1 mm (2x) at box terminal
NA: min. 6 segments of 16 mm x 0.8 mm at rear-side connection (punched)
Lifespan, electrical
5000 operations at 400 V AC-1
2000 operations at 690 V AC-3
2000 operations at 400 V AC-3
3000 operations at 415 V AC-1
2000 operations at 415 V AC-3
3000 operations at 690 V AC-1
2000 operations at 690 V AC-3
2000 operations at 400 V AC-3
3000 operations at 415 V AC-1
2000 operations at 415 V AC-3
3000 operations at 690 V AC-1
Functions
Disconnectors/main switches
Position of connection for main current circuit
Front side
Rated operational current for specified heat dissipation (In)
400 A
Short-circuit total breaktime
< 10 ms
Short-circuit release non-delayed setting - max
6600 A
Short-circuit release non-delayed setting - min
6600 A
Terminal capacity (copper busbar)
Max. 10 mm x 50 mm (2x) at rear-side width extension
Min. 20 mm x 5 mm direct at switch rear-side connection
NA: max. 10 mm x 50 mm (2x) at rear-side width extension
NA: max. 30 mm x 10 mm + 30 mm x 5 mm direct at switch rear-side connection
NA: M10 at rear-side screw connection
NA: min. 20 mm x 5 mm direct at switch rear-side connection
Max. 30 mm x 10 mm + 30 mm x 5 mm direct at switch rear-side connection
M10 at rear-side screw connection
Min. 20 mm x 5 mm direct at switch rear-side connection
NA: max. 10 mm x 50 mm (2x) at rear-side width extension
NA: max. 30 mm x 10 mm + 30 mm x 5 mm direct at switch rear-side connection
NA: M10 at rear-side screw connection
NA: min. 20 mm x 5 mm direct at switch rear-side connection
Max. 30 mm x 10 mm + 30 mm x 5 mm direct at switch rear-side connection
M10 at rear-side screw connection
Terminal capacity (copper solid conductor/cable)
16 mm² (2x) direct at switch rear-side connection
300 mm² (2x) at rear-side width extension
16 mm² (1x) direct at switch rear-side connection
16 mm² (2x) at box terminal
NA: 500 AWG/kcmil (2x) at rear-side width extension
NA: 6 AWG (1x) at tunnel terminal
300 mm² (2x) at rear-side width extension
16 mm² (1x) direct at switch rear-side connection
16 mm² (2x) at box terminal
NA: 500 AWG/kcmil (2x) at rear-side width extension
NA: 6 AWG (1x) at tunnel terminal
Terminal capacity (aluminum solid conductor/cable)
10 mm² - 16 mm² (2x) direct at switch rear-side connection
16 mm² (1x) direct at switch rear-side connection
16 mm² (1x) at tunnel terminal
16 mm² (1x) direct at switch rear-side connection
16 mm² (1x) at tunnel terminal
Terminal capacity (copper stranded conductor/cable)
25 mm² - 185 mm² (1x) at 1-hole tunnel terminal
25 mm² - 240 mm² (2x) direct at switch rear-side connection
NA: Max. 500 AWG/kcmil (2x) at 2-hole tunnel terminal
25 mm² - 120 mm² (2x) at box terminal
25 mm² - 240 mm² (1x) direct at switch rear-side connection
35 mm² - 240 mm² (1x) at box terminal
NA: Max. 500 AWG/kcmil (1x) at 2-hole tunnel terminal
NA: 2 - 500 AWG/kcmil (1x) at box terminal
25 mm² - 240 mm² (2x) direct at switch rear-side connection
NA: Max. 500 AWG/kcmil (2x) at 2-hole tunnel terminal
25 mm² - 120 mm² (2x) at box terminal
25 mm² - 240 mm² (1x) direct at switch rear-side connection
35 mm² - 240 mm² (1x) at box terminal
NA: Max. 500 AWG/kcmil (1x) at 2-hole tunnel terminal
NA: 2 - 500 AWG/kcmil (1x) at box terminal
Terminal capacity (aluminum stranded conductor/cable)
25 mm² - 185 mm² (1x) at 1-hole tunnel terminal up to 240 mm² depending on the cable manufacturer.
50 mm² - 240 mm² (1x) at 2-hole tunnel terminal
25 mm² - 120 mm² (1x) direct at switch rear-side connection
50 mm² - 240 mm² (2x) at 2-hole tunnel terminal
25 mm² - 120 mm² (2x) direct at switch rear-side connection
50 mm² - 240 mm² (1x) at 2-hole tunnel terminal
25 mm² - 120 mm² (1x) direct at switch rear-side connection
50 mm² - 240 mm² (2x) at 2-hole tunnel terminal
25 mm² - 120 mm² (2x) direct at switch rear-side connection
Handle type
Rocker lever
Short delay current setting (Isd) - max
0 A
Short delay current setting (Isd) - min
0 A
Instantaneous current setting (Ii) - max
6600 A
Instantaneous current setting (Ii) - min
6600 A
Number of operations per hour - max
60
Overload current setting (Ir) - max
0 A
Overload current setting (Ir) - min
0 A
Rated short-circuit breaking capacity Ics (IEC/EN 60947) at 230 V, 50/60 Hz
150 kA
Rated short-circuit breaking capacity Ics (IEC/EN 60947) at 400/415 V, 50/60 Hz
150 kA
Rated short-circuit breaking capacity Ics (IEC/EN 60947) at 440 V, 50/60 Hz
130 kA
Rated short-circuit breaking capacity Ics (IEC/EN 60947) at 525 V, 50/60 Hz
33 kA
Rated short-circuit breaking capacity Ics (IEC/EN 60947) at 690 V, 50/60 Hz
9 kA
Rated short-circuit making capacity Icm at 400/415 V, 50/60 Hz
330 kA
Rated short-circuit making capacity Icm at 440 V, 50/60 Hz
286 kA
Rated short-circuit making capacity Icm at 525 V, 50/60 Hz
143 kA
Rated short-circuit making capacity Icm at 690 V, 50/60 Hz
74 kA
Standard terminals
Screw terminal
Optional terminals
Box terminal. Connection on rear. Tunnel terminal
Rated operating voltage Ue (UL) - max
600 V
Rated short-circuit making capacity Icm at 240 V, 50/60 Hz
330 kA
Rated impulse withstand voltage (Uimp) at auxiliary contacts
6000 V
Rated impulse withstand voltage (Uimp) at main contacts
8000 V
Rated insulation voltage (Ui)
1000 V AC
| Merkmal | Wert |
|---|---|
| Bemessungsdauerstrom Iu (EF001389) | 400 A |
| Bemessungsspannung (EF003977) | 690 V |
| Bemessungsgrenzkurzschlussausschaltstrom Icu bei 400 V, 50 Hz (EF007048) | 150 kA |
| Überlastauslöser Stromeinstellung (EF002336) | 0 A |
| Einstellbereich des kurzzeitverzögerten Kurzschlussauslösers (EF007129) | 0 A |
| Einstellbereich des unverzögerten Kurzschlussauslösers (EF007131) | 6600 A |
| Gerätebauart (EF008240) | Einbaugerät Festeinbautechnik |
| Integrierter Erdschlussschutz (EF007296) | Nein |
| Anschlussart Hauptstromkreis (EF006819) | Schraubanschluss |
| Geeignet für Hutschienenmontage (EF007250) | Nein |
| Hutschienenmontage optional (EF008904) | Ja |
| Anzahl der Hilfskontakte als Öffner (EF001377) | 0 |
| Anzahl der Hilfskontakte als Schließer (EF001376) | 0 |
| Anzahl der Hilfskontakte als Wechsler (EF003531) | 0 |
| Mit Ausgelöstmelder (EF007006) | Nein |
| Mit integriertem Unterspannungsauslöser (EF001390) | Nein |
| Polzahl (EF001391) | 3 |
| Position des Anschlusses für Hauptstromkreis (EF006671) | vorne |
| Ausführung des Betätigungselements (EF006976) | Kipphebel |
| Komplettgerät mit Schutzeinheit (EF008906) | Ja |
| Motorantrieb integriert (EF006697) | Nein |
| Motorantrieb optional (EF007386) | Ja |
| Schutzart (IP) (EF005474) | IP20 |
Datasheet - PDF
▲| Titel: | Größe: | Typ: |
|---|---|---|
| PDF CATALOGUE EATON EN .pdf | 38 Mbytes |
|
| NS3-400-NA Y7-102687 102687 DE_109670.pdf | 833 Kbytes |
|
Bewertungen (0) ▲
Es gibt keine Produktbewertungenvor.
Bewertung abgeben
Formular verstecken
| Wertung: |
|
| Name: | |
| E-Mail : | |
| Betreff: | |
| Text: | |
| Haben Sie dieses Produkt empfehlen zu kaufen? | |
|
|
|
| Bewertung abgeben | |
Alle Bewertungen wir von den Einzelteilen erhalten wir anbieten, sind real und verifiziert. Eine kleine Geste, aber sehr wertvoll. Also danke für die Minute, die Sie in, dass Sie uns Ihre Meinung und Bewertung von Produkten ausgeben, weil es mir hilft, weiter zu verbessern und noch mehr Servicequalität zu bieten.
