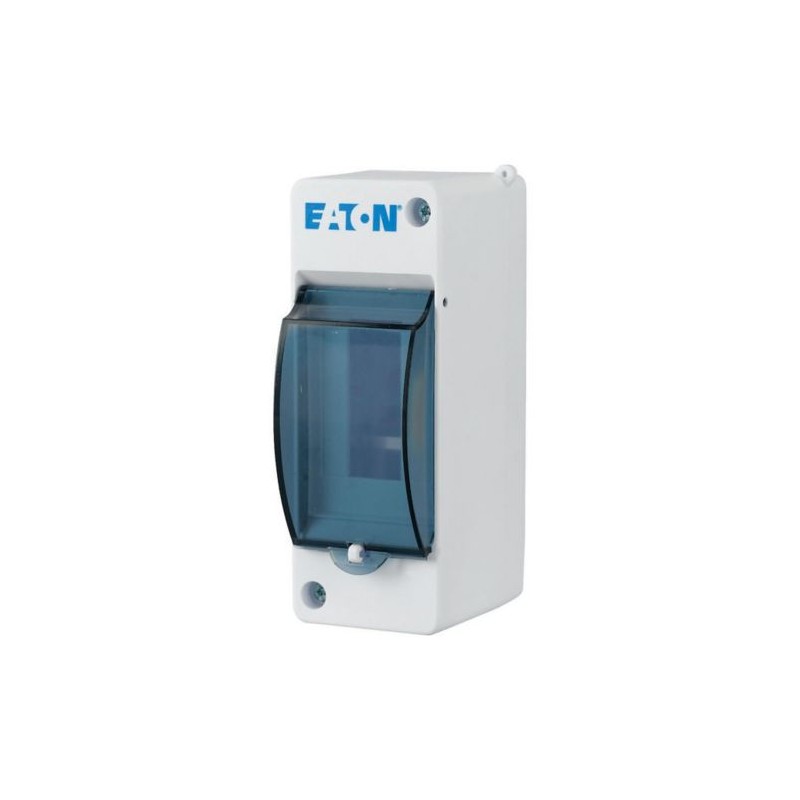

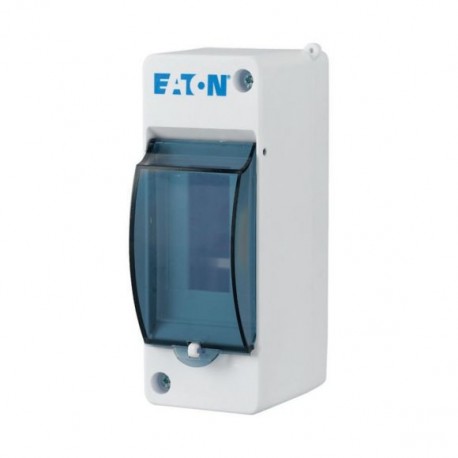

MINI-2-T 177071 EATON ELECTRIC Mini placa IP30 1-linha 2-mod.
MINI-2-T
177071
EATON-MOELLER
Mini placa IP30 1-linha 2-mod.
IP30 mini tipo caixa de distribuição, 1 linha, 2 módulos
Eaton xComfort Micro/Mini LV systems Final Distribution Boards. Mini compact distribution board, 1-row 2 SU, IP30
Sistemas de distribuição de energia elétrica (incluindo quadros de controle) > Pequenos distribuidores de instalação
Caixas e armários pequenos
* Produto novo em sua embalagem original com todas as garantias e certificações de EATON-MOELLER
Mais informação
▲General specifications
Product Name
Eaton xComfort Micro/Mini mini series
Catalog Number
177071
EAN
4015081715145
Product Length/Depth
83 mm
Product Height
140 mm
Product Width
53 mm
Product Weight
0.09 kg
Compliances
RoHS conform
Certifications
IEC/EN 62208
Model Code
MINI-2-T
Delivery program
Type
Basic deviceInstallation distribution boardMINI distribution board
Application
Indoor (installation site)
Color
Signal white (RAL 9003)
White
White
Technical data - electrical
Voltage rating at AC
400 V AC
Frequency rating of contacts
50 Hz
Technical data - mechanical
Closure type
Other
Enclosure material
Plastic
Width in number of modular spacings
2
Mounting method
DIN-rail
Surface mounted (plaster)
Surface mounting
Surface mounted (plaster)
Surface mounting
Material
ABS (plastic)
Degree of protection
IP30
IK05 (impact resistance)
IK05 (impact resistance)
Number of module space units per row
2
Number of rows
1
Terminal type
Without terminals
Built-in depth
70 mm
Built-in height
0 mm
Built-in width
0 mm
Internal depth
60 mm
Cable entry postion
Metric cable entries on top and bottom, side, back plate
Cover/door color
Transparent
Cover/door model
Closed
Cover/door type
Door
Single
Single
Module rack type
Single-rail
Protective shrouding material
Plastic
Temperature-rise verification as per IEC 60890
Heat diss. ambient 35°C delta T:20°C wall mount individ. encl. top (IEC 60890)
10 W
Heat diss. ambient 35°C delta T:35°C wall mount individ. encl. top (IEC 60890)
12 W
Design verification as per IEC 61439 - technical data
Ambient operating temperature details
-5 °C - 40 °C
Design verification as per IEC/EN 61439
10.2.2 Corrosion resistance
Meets the product standard's requirements.
10.2.3.1 Verification of thermal stability of enclosures
Meets the product standard's requirements.
10.2.3.2 Verification of resistance of insulating materials to normal heat
Meets the product standard's requirements.
10.2.3.3 Resist. of insul. mat. to abnormal heat/fire by internal elect. effects
650 °C; meets the product standard's requirements.
10.2.4 Resistance to ultra-violet (UV) radiation
Not relevant to indoor installations.
10.2.5 Lifting
Does not apply to enclosures without lifting aids.
10.2.6 Mechanical impact
IK05
10.2.7 Inscriptions
Meets the product standard's requirements.
10.3 Degree of protection of assemblies
IP30
10.4 Clearances and creepage distances
Is the panel builder's responsibility.
10.5 Protection against electric shock
Protection class 2, therefore not applicable.
10.6 Incorporation of switching devices and components
Is the panel builder's responsibility.
10.7 Internal electrical circuits and connections
Is the panel builder's responsibility.
10.8 Connections for external conductors
Is the panel builder's responsibility.
10.9.2 Power-frequency electric strength
Ui = 400 V AC
10.9.3 Impulse withstand voltage
2.8 kV
10.9.4 Testing of enclosures made of insulating material
Meets the product standard's requirements.
10.10 Temperature rise
The panel builder is responsible for the temperature rise calculation. Eaton will provide heat dissipation data for the devices.
10.11 Short-circuit rating
Is the panel builder's responsibility.
10.12 Electromagnetic compatibility
Is the panel builder's responsibility.
10.13 Mechanical function
Meets the product standard's requirements.
Additional information
Features
EMC-version
Fitted with:
Basic device
Functions
Basic device
Protection class
II (totally insulated)
RAL-number
9003
Special features
IP30Protection Class IIPlastic housing white (RAL 9003)
Used with
Basic device
MINI distribution board
Installation distribution board
MINI distribution board
Installation distribution board
