> EATON - MOELLER>Boites et petites armoires >MINI-2-T 177071 ELECTRIC MINI-2-T Coffrets de distribution Mini, 1 rangée 2 PE, IP30
Produit précédent Produit suivant

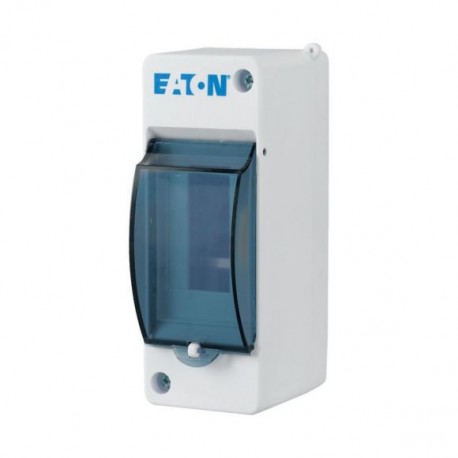

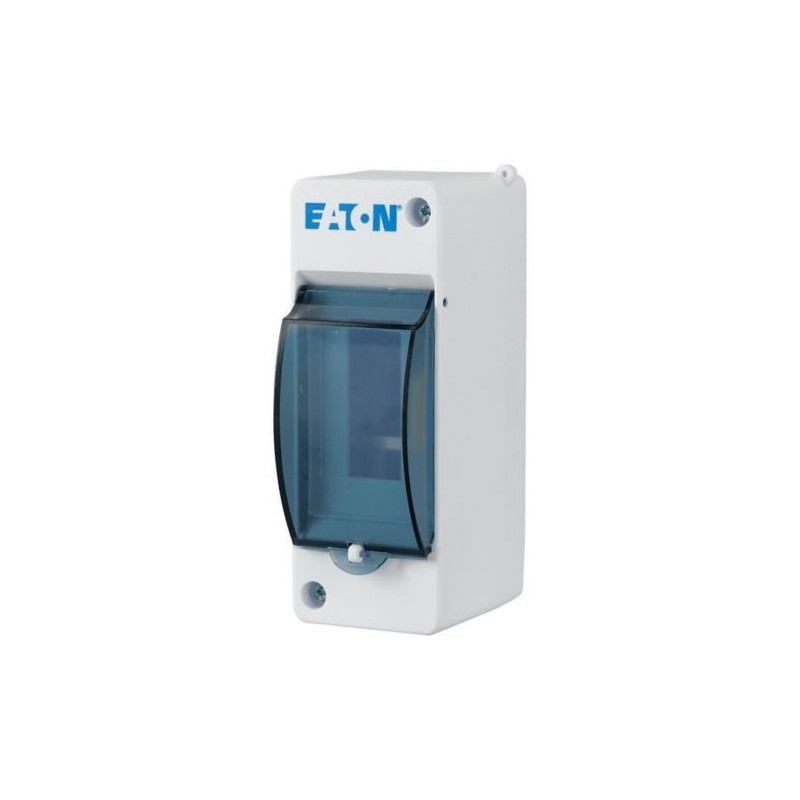

MINI-2-T 177071 EATON ELECTRIC MINI-2-T Coffrets de distribution Mini, 1 rangée 2 PE, IP30 Agrandir l'image
Les images sont à titre illustratif. Svp, révisez la fiche technique.

MINI-2-T 177071 EATON ELECTRIC MINI-2-T Coffrets de distribution Mini, 1 rangée 2 PE, IP30

MINI-2-T

177071

EATON-MOELLER

MINI-2-T Coffrets de distribution Mini, 1 rangée 2 PE, IP30

MINI-2-T

Eaton xComfort Micro/Mini LV systems Final Distribution Boards. Mini compact distribution board, 1-row 2 SU, IP30

Plus de détails


Systèmes d'enveloppes (y compris coffrets d'installation) > Coffret de distribution

Boites et petites armoires

* Produit neuf dans son emballage d'origine avec toutes les garanties et les certifications émises par EATON-MOELLER

Prix total: $5.43
Prix unitaire: $5.43

*Ce prix est par unité et montre la valeur nette (excluant les taxes indirectes le cas échéant) .

Si notre prix n'est pas le meilleur, demandez-nous un devis. Demander un devis

En savoir plus

▲


Spécifications générales

Product Name
Eaton xComfort Micro/Mini mini series
Catalog Number
177071
Model Code
MINI-2-T
EAN
4015081715145
Product Length/Depth
83 mm
Product Height
140 mm
Product Width
53 mm
Product Weight
0.09 kg
Compliances
RoHS conform
Certifications
IEC/EN 62208

Spécifications du produit

Special features
IP30Protection Class IIPlastic housing white (RAL 9003)
Type
Basic deviceInstallation distribution boardMINI distribution board
Features
EMC-version
10.10 Temperature rise
The panel builder is responsible for the temperature rise calculation. Eaton will provide heat dissipation data for the devices.
10.11 Short-circuit rating
Is the panel builder's responsibility.
10.12 Electromagnetic compatibility
Is the panel builder's responsibility.
10.13 Mechanical function
Meets the product standard's requirements.
10.2.2 Corrosion resistance
Meets the product standard's requirements.
10.2.3.1 Verification of thermal stability of enclosures
Meets the product standard's requirements.
10.2.3.2 Verification of resistance of insulating materials to normal heat
Meets the product standard's requirements.
10.2.3.3 Resist. of insul. mat. to abnormal heat/fire by internal elect. effects
650 °C; meets the product standard's requirements.
10.2.4 Resistance to ultra-violet (UV) radiation
Not relevant to indoor installations.
10.2.5 Lifting
Does not apply to enclosures without lifting aids.
10.2.6 Mechanical impact
IK05
10.2.7 Inscriptions
Meets the product standard's requirements.
10.3 Degree of protection of assemblies
IP30
10.4 Clearances and creepage distances
Is the panel builder's responsibility.
10.5 Protection against electric shock
Protection class 2, therefore not applicable.
10.6 Incorporation of switching devices and components
Is the panel builder's responsibility.
10.7 Internal electrical circuits and connections
Is the panel builder's responsibility.
10.8 Connections for external conductors
Is the panel builder's responsibility.
10.9.2 Power-frequency electric strength
Ui = 400 V AC
10.9.3 Impulse withstand voltage
2.8 kV
10.9.4 Testing of enclosures made of insulating material
Meets the product standard's requirements.
Fitted with:
Basic device
Used with
Basic device
MINI distribution board
Installation distribution board
Enclosure material
Plastic
Built-in height
0 mm
Built-in width
0 mm
Cable entry postion
Metric cable entries on top and bottom, side, back plate
Terminal type
Without terminals
Built-in depth
70 mm
Heat diss. ambient 35°C delta T:20°C wall mount individ. encl. top (IEC 60890)
10 W
Closure type
Other
Cover/door color
Transparent
Cover/door model
Closed
Cover/door type
Door
Single
RAL-number
9003
Width in number of modular spacings
2
Ambient operating temperature details
-5 °C - 40 °C
Application
Indoor (installation site)
Voltage rating at AC
400 V AC
Color
Signal white (RAL 9003)
White
Number of rows
1
Frequency rating of contacts
50 Hz
Module rack type
Single-rail
Degree of protection
IP30
IK05 (impact resistance)
Number of module space units per row
2
Protection class
II (totally insulated)
Protective shrouding material
Plastic
Functions
Basic device
Material
ABS (plastic)
Mounting method
DIN-rail
Surface mounted (plaster)
Surface mounting
Heat diss. ambient 35°C delta T:35°C wall mount individ. encl. top (IEC 60890)
12 W
Internal depth
60 mm
