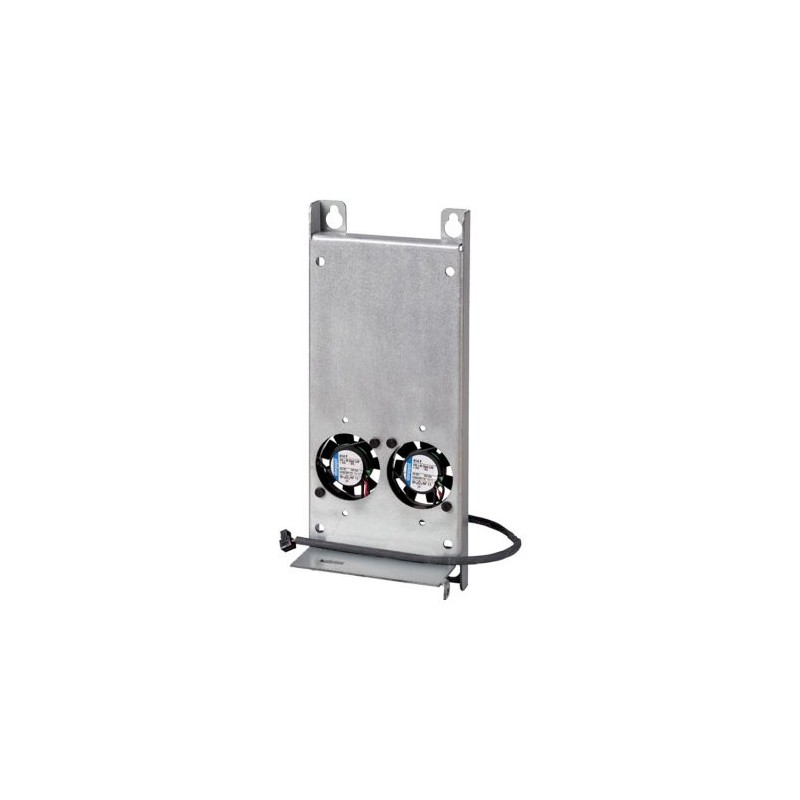

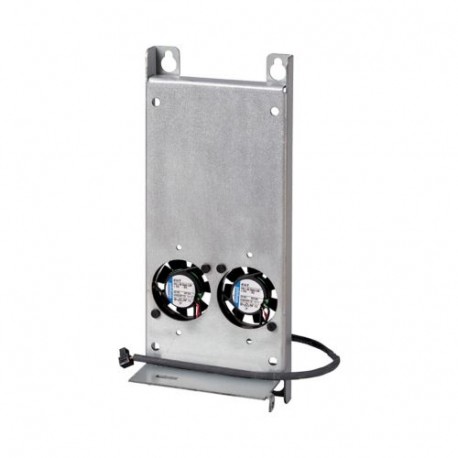

DS7-FAN-100 169021 EATON ELECTRIC Fan, tamanho 2
DS7-FAN-100
169021
EATON-MOELLER
Fan, tamanho 2
DS7 Soft Start Fan Tamanho 2
Eaton DS7 Fan, for DS7 soft starter, BG3
Disjuntores de baixa tensão > Acessórios para controle eletrônico do motor e dispositivo de proteção
Arranques suaves padrão
* Produto novo em sua embalagem original com todas as garantias e certificações de EATON-MOELLER
Best sellers
▲geralmente comprados juntos
▲Mais informação
▲General specifications
Product Name
Eaton DS7 Accessory Device fan
Catalog Number
169021
Product Length/Depth
50 mm
Product Height
210 mm
Product Width
90 mm
Product Weight
0.248 kg
Certifications
UL/CSA certification not required
Model Code
DS7-FAN-100
Especificações do produto
10.10 Temperature rise
The panel builder is responsible for the temperature rise calculation. Eaton will provide heat dissipation data for the devices.
10.11 Short-circuit rating
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.12 Electromagnetic compatibility
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.13 Mechanical function
The device meets the requirements, provided the information in the instruction leaflet (IL) is observed.
10.2.2 Corrosion resistance
Meets the product standard's requirements.
10.2.3.1 Verification of thermal stability of enclosures
Meets the product standard's requirements.
10.2.3.2 Verification of resistance of insulating materials to normal heat
Meets the product standard's requirements.
10.2.3.3 Resist. of insul. mat. to abnormal heat/fire by internal elect. effects
Meets the product standard's requirements.
10.2.4 Resistance to ultra-violet (UV) radiation
Meets the product standard's requirements.
10.2.5 Lifting
Does not apply, since the entire switchgear needs to be evaluated.
10.2.6 Mechanical impact
Does not apply, since the entire switchgear needs to be evaluated.
10.2.7 Inscriptions
Meets the product standard's requirements.
10.3 Degree of protection of assemblies
Does not apply, since the entire switchgear needs to be evaluated.
10.4 Clearances and creepage distances
Meets the product standard's requirements.
10.5 Protection against electric shock
Does not apply, since the entire switchgear needs to be evaluated.
10.6 Incorporation of switching devices and components
Does not apply, since the entire switchgear needs to be evaluated.
10.7 Internal electrical circuits and connections
Is the panel builder's responsibility.
10.8 Connections for external conductors
Is the panel builder's responsibility.
10.9.2 Power-frequency electric strength
Is the panel builder's responsibility.
10.9.3 Impulse withstand voltage
Is the panel builder's responsibility.
10.9.4 Testing of enclosures made of insulating material
Is the panel builder's responsibility.
Fitted with:
Device fan for increasing the load cycle
Bottom fans
Bottom fans
Accessory/spare part type
Other
Ambient operating temperature - max
40 °C
Ambient operating temperature - min
-5 °C
Datasheet - PDF
▲| Título: | Tamanho: | Tipo: |
|---|---|---|
| PDF EATON EMS EN.pdf | 1 Mbytes |
|
| PDF EATON STARTING CONTROLLING MOTORS EN.pdf | 32 Mbytes |
|
| PDF CATALOGUE EATON EN.pdf | 51 Mbytes |
|
| DS7-FAN-100 DS7-FAN-100 169021 ES_134956.pdf | 2 Mbytes |
|
