> >>DS7-FAN-100 169021 ELECTRIC Ventilador arrancador Suave DS7 Tamaño 2
Anterior producto Siguiente producto

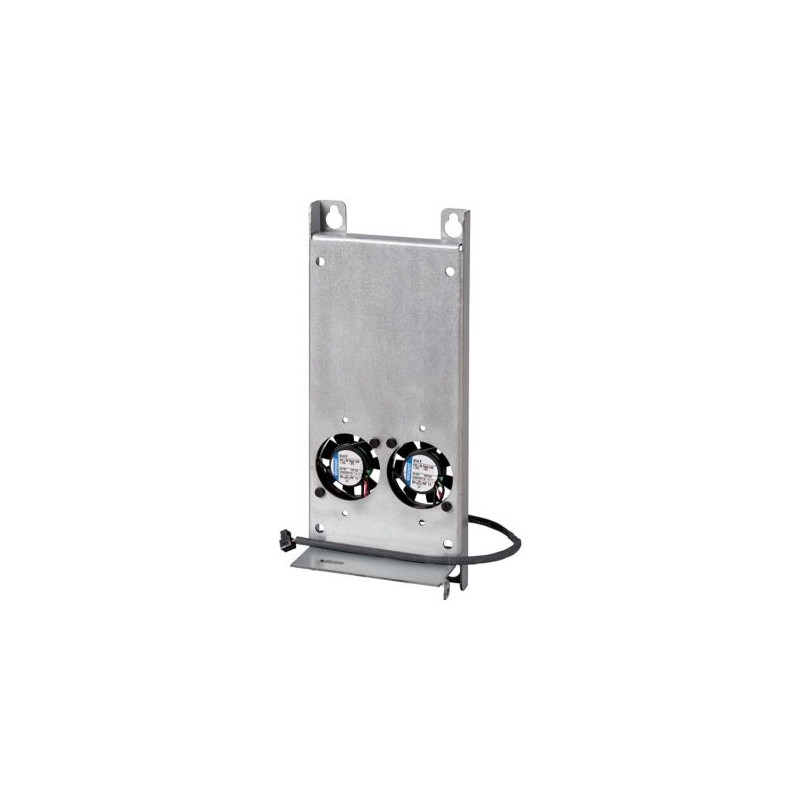

DS7-FAN-100 169021 EATON ELECTRIC Ventilador arrancador Suave DS7 Tamaño 2 Ver más grande
Las imágenes son sólo a título ilustrativo. Por favor, revise la ficha técnica.

DS7-FAN-100 169021 EATON ELECTRIC Ventilador arrancador Suave DS7 Tamaño 2

DS7-FAN-100

169021

EATON-MOELLER

Ventilador arrancador Suave DS7; Tamaño 2

Eaton DS7 Fan, for DS7 soft starter, BG3

Más detalles


Interruptores de baja tensión > Accesorios para control electrónico de motor y dispositivo de protección

Arrancadores Suaves Estándar

* Producto nuevo en su embalaje original con todas las garantías y certificaciones de EATON-MOELLER

Precio total: $169.44
Precio unitario: $169.44

Cantidad Precio
1+$169.44
2+$150.10
3+$142.23
4+$137.78
5+$134.97
*Este precio es por unidad y muestra el valor neto (no incluye impuestos indirectos si son aplicables).

Si nuestro precio no es el mejor solicítenos presupuesto Solicitar presupuesto

Comprados juntos habitualmente

▲

Más Información

▲


Especificaciones generales

Product Name
Eaton DS7 Accessory Device fan
Catalog Number
169021
EAN
4015081655144
Product Length/Depth
50 mm
Product Height
210 mm
Product Width
90 mm
Product Weight
0.248 kg
Certifications
UL/CSA certification not required
Model Code
DS7-FAN-100

Features & Functions

Fitted with:
Device fan for increasing the load cycle
Bottom fans

General

Accessory/spare part type
Other

Climatic environmental conditions

Ambient operating temperature - max
40 °C
Ambient operating temperature - min
-5 °C

Design verification

10.2.2 Corrosion resistance
Meets the product standard's requirements.
10.2.3.1 Verification of thermal stability of enclosures
Meets the product standard's requirements.
10.2.3.2 Verification of resistance of insulating materials to normal heat
Meets the product standard's requirements.
10.2.3.3 Resist. of insul. mat. to abnormal heat/fire by internal elect. effects
Meets the product standard's requirements.
10.2.4 Resistance to ultra-violet (UV) radiation
Meets the product standard's requirements.
10.2.5 Lifting
Does not apply, since the entire switchgear needs to be evaluated.
10.2.6 Mechanical impact
Does not apply, since the entire switchgear needs to be evaluated.
10.2.7 Inscriptions
Meets the product standard's requirements.
10.3 Degree of protection of assemblies
Does not apply, since the entire switchgear needs to be evaluated.
10.4 Clearances and creepage distances
Meets the product standard's requirements.
10.5 Protection against electric shock
Does not apply, since the entire switchgear needs to be evaluated.
10.6 Incorporation of switching devices and components
Does not apply, since the entire switchgear needs to be evaluated.
10.7 Internal electrical circuits and connections
Is the panel builder's responsibility.
10.8 Connections for external conductors
Is the panel builder's responsibility.
10.9.2 Power-frequency electric strength
Is the panel builder's responsibility.
10.9.3 Impulse withstand voltage
Is the panel builder's responsibility.
10.9.4 Testing of enclosures made of insulating material
Is the panel builder's responsibility.
10.10 Temperature rise
The panel builder is responsible for the temperature rise calculation. Eaton will provide heat dissipation data for the devices.
10.11 Short-circuit rating
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.12 Electromagnetic compatibility
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.13 Mechanical function
The device meets the requirements, provided the information in the instruction leaflet (IL) is observed.

Datasheet - PDF

▲
Título: Tamaño: Tipo:
PDF CATALOGO EATON CONTROL Y AUTOMATIZACION ES.pdf 9 Mbytes
DS7-FAN-100 DS7-FAN-100 169021 ES_134956.pdf 2 Mbytes DS7-FAN-100 DS7-FAN-100 169021 ES_134956.pdf
