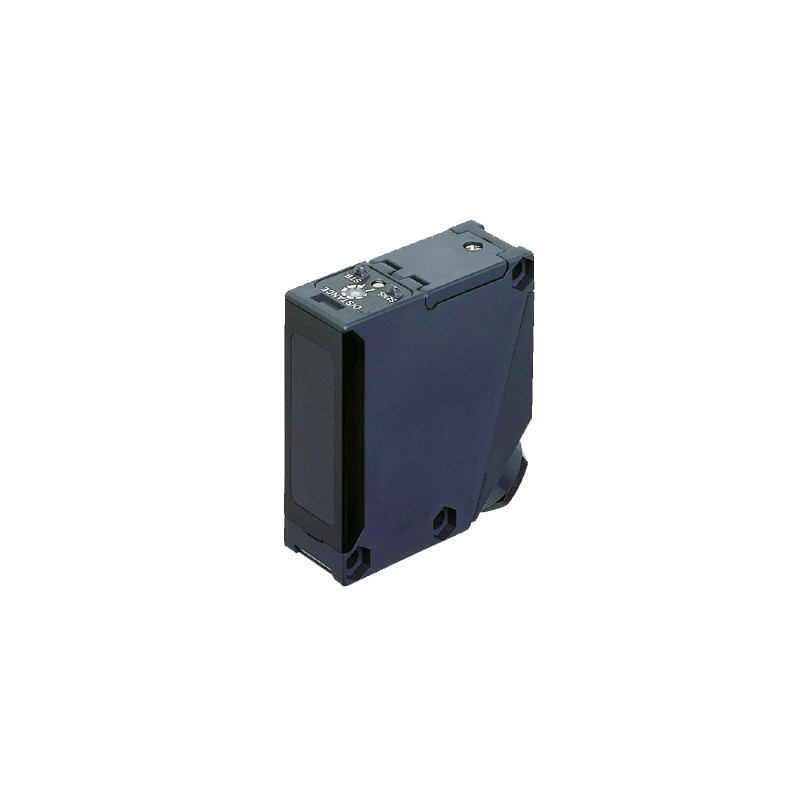

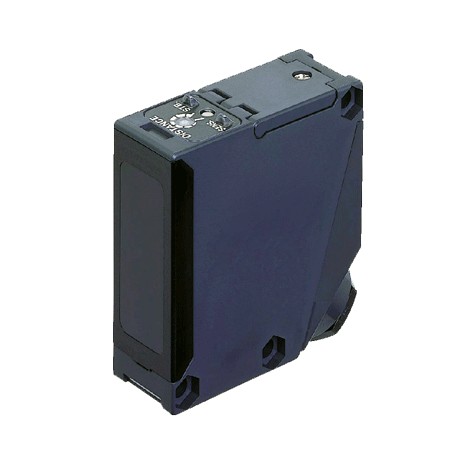

EQ502 EQ-502 PANASONIC Trigonometric diffuse reflective type 1m, AC-version, Screw terminal type
EQ502
EQ-502
PANASONIC
Trigonometric diffuse reflective type 1m, AC-version, Screw terminal type
Background supression - PANASONIC > EQ500 Long range background supression photoelectric sensors - PANASONIC
* Brand new product in its original packaging covered by the warranties and certifications provided by PANASONIC
More info
▲| Product Number | EQ-502 |
| Part Number | EQ-502 |
| Product | Adjustable Range Reflective Photoelectric Sensor |
| Details | Multi-voltage |
| Product name | Adjustable Range Reflective Photoelectric Sensor EQ-500 |
| Item | Specifications |
|---|---|
| Product Number | EQ-502 |
| Part Number | EQ-502 |
| CE marking directive compliance | Low Voltage Directive, EMC Directive, RoHS Directive |
| Adjustable range | 0.2 to 1.0 m 0.656 to 3.281 ft (Note 1) The adjustable range stands for the maximum sensing range which can be set with the distance adjuster. The sensor can also detect an object 0.1 m0.328 ft, or more, away. (Note 2) The adjustable range, sensing range and hysteresis are specified for white non-glossy paper (200 x 200 mm7.874 x 7.874 in) as the object. |
| Sensing range(at maximum setting distance) | 0.1 to 1.0 m 0.328 to 3.281 ft (Note) The adjustable range, sensing range and hysteresis are specified for white non-glossy paper (200 x 200 mm7.874 x 7.874 in) as the object. |
| Hysteresis | 10 % or less of operation distance (Note) The adjustable range, sensing range and hysteresis are specified for white non-glossy paper (200 x 200 mm 7.874 x 7.874 in) as the object. |
| Supply voltage | 24-240 V AC ±10 % or 12 to 240 V DC ±10 % Ripple P-P 10 % or less |
| Power / Current consumption | AC: 4 VA or less DC: 3 W or less |
| Output | Relay contact 1a - Switching capacity: 2 50 V AC 3 A (resistive load), 30 V DC 3 A (resistive load) - Electrical life: 100,000 or more switching operations (switching frequency 1,200 operations/hour) - Mechanical life: 50 million or more switching operations (switching frequency 18,000 operations/hour) |
| Output:Output operation | Switchable either Detection-ON or Detection-OFF |
| Output:Short-circuit protection | - |
| Response time | 20 ms or less |
| Operation indicator | Orange LED (lights up when the output is ON) |
| Stability indicator | Green LED (lights up under stable operating condition) |
| Distance adjuster | 2-turn mechanical adjuster with indicator |
| Sensing mode | - |
| Timer function | - |
| Automatic Interference prevention function | Incorporated (Note) Note that the detection may be unstable depending on the mounting conditions or the sensing object. In the state that this product is mounted, be sure to check the operation with the actual sensing object. |
| Protection | IP67 (IEC) |
| Ambient temperature | –20 to +55 ℃–4 to +131℉(No dew condensation or icing allowed), Storage: –30 to +70 ℃–22 to +158℉ |
| Ambient humidity | 35 to 85 % RH, Storage: 35 to 85 % RH |
| Ambient illuminance | Incandescent light: 3,000 Lx or less at the light-receiving face |
| Voltage withstandability | 2,000 V AC for one min. among supply terminals, non-supply metal parts and relay contact output terminals, 1,000 V AC for one min. between relay contacts |
| Insulation resistance | 100 MOhm , or more, with 500 V DC megger among supply terminals, non-supply metal parts and relay contact output terminals as well as between relay contacts |
| Vibration resistance | 10 to 55 Hz frequency, 1.5 mm0.059 indouble amplitude in X, Y and Z directions for two hours each |
| Shock resistance | 500 m/s2acceleration (50 G approx.) in X, Y and Z directions three times each |
| Emitting element | Infrared LED (Peak emission wavelength: 855 nm0.034 mil, modulated) |
| Receiving element | 2-segment photodiode |
| Material | Enclosure: ABS Front cover: Polycarbonate Display cover: Polycarbonate |
| Connection method | Screw-on terminal connection |
| Cable | Suitable for round cable φ9 to φ11 mmφ0.354 to φ0.433 in |
| Cable length | Total length up to 100 m328.084 ftis possible with 0.3 mm2, or more, cabtyre cable. |
| Weight | Net weight: 100 g approx. |
| Accessory | Adjusting screwdriver: 1 pc. |
