XS6W-6PUR8SS100CM-YH 682428 XS6W6PUR8SS100CMYH OMRON Ethernet patch cable, Cat.6, ПОЛИУРЕТАН 1 м
XS6W-6PUR8SS100CM-YH
682428
XS6W6PUR8SS100CMYH
OMRON
Ethernet patch cable, Cat.6, ПОЛИУРЕТАН 1 м
Кабель Ethernet патч, кот.6, Пур, 1 м
Системы управления > Системы управления Аксессуары
* Новый продукт в оригинальной упаковке со всеми гарантиями и сертификатами OMRON
Описание

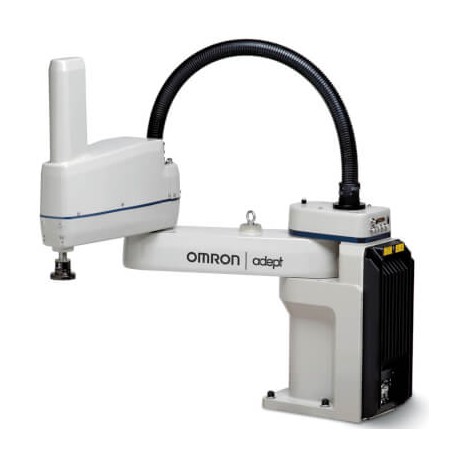

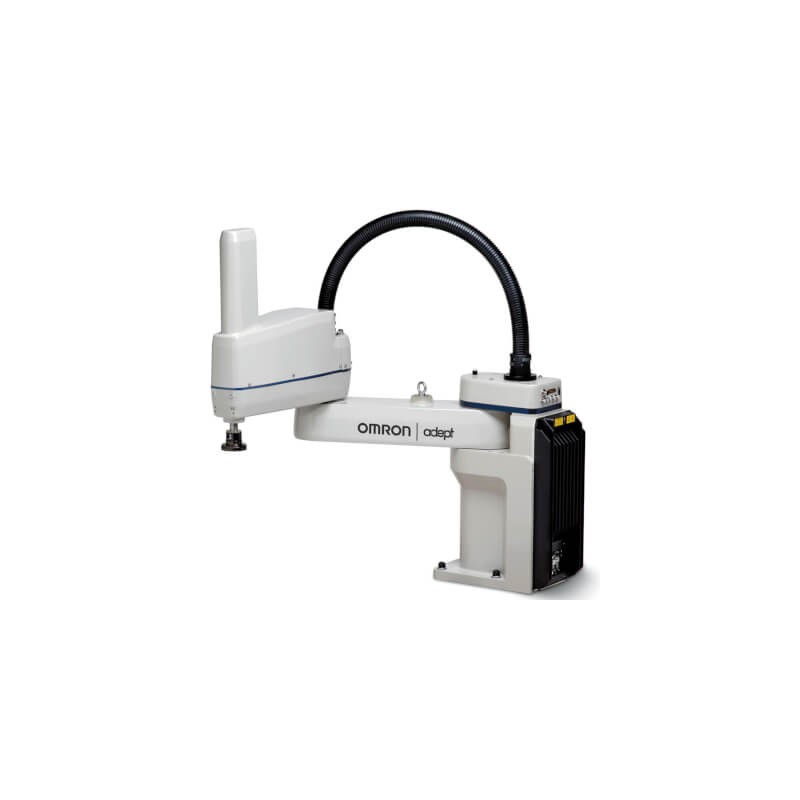

▲Ð Ð¾Ð±Ð¾Ñ SCARA Ð´Ð»Ñ ÑоÑной обÑабоÑки, ÑбоÑки и пеÑемеÑÐµÐ½Ð¸Ñ Ð¼Ð°ÑеÑиалов
ÐовейÑÐ°Ñ ÑеÑÐ¸Ñ ÑеÑÑÑÐµÑ ÐºÐ¾Ð¾ÑдинаÑнÑÑ ÑобоÑов Ð¾Ñ ÐºÐ¾Ð¼Ð¿Ð°Ð½Ð¸Ð¸ Omron. Ð Ð¾Ð±Ð¾Ñ eCobra 800 SCARA Ð¸Ð¼ÐµÐµÑ Ð´Ð¸Ð°Ð¿Ð°Ð·Ð¾Ð½ дейÑÑÐ²Ð¸Ñ 600 и 800 мм и поÑÑавлÑеÑÑÑ Ð² ÑÑÐµÑ Ð²Ð°ÑианÑÐ°Ñ ÑÑовней пÑоизводиÑелÑноÑÑи, каждÑй из коÑоÑÑÑ ÑаÑÑÑиÑан на опÑеделеннÑÑ ÑÑÐµÐ¿ÐµÐ½Ñ ÑложноÑÑи и ÑÑÐµÐ±Ð¾Ð²Ð°Ð½Ð¸Ñ Ðº пÑопÑÑкной ÑпоÑобноÑÑи.
- ÐоддеÑжка Ethernet Ð´Ð»Ñ ÑпÑÐ°Ð²Ð»ÐµÐ½Ð¸Ñ ÑобоÑом Ñ Ð¸ÑполÑзованием Ñого же ÑзÑка пÑогÑаммиÑÐ¾Ð²Ð°Ð½Ð¸Ñ (IEC 61131-3), ÑÑо иÑполÑзÑеÑÑÑ Ð² ÑнивеÑÑалÑнÑÑ ÐºÐ¾Ð½ÑÑоллеÑÐ°Ñ NX/NJ.
- ÐÑÑÐ¾ÐºÐ°Ñ Ð¿Ð¾Ð²ÑоÑÑемоÑÑÑ Ð¿Ð¾Ð´Ñ Ð¾Ð´Ð¸Ñ Ð´Ð»Ñ Ð¿ÐµÑемеÑÐµÐ½Ð¸Ñ Ð¼Ð°ÑеÑиалов и пÑеÑизионной ÑбоÑки.
- ÐÑÑÐ¾ÐºÐ°Ñ Ð½Ð¾Ð¼Ð¸Ð½Ð°Ð»ÑÐ½Ð°Ñ Ð½Ð°Ð³ÑÑзка Ð´Ð»Ñ ÑÑÑÑпозавеÑÑÑваÑÑÐ¸Ñ ÑÑанков.
- УÑилиÑÐµÐ»Ñ Ð¸ конÑÑÐ¾Ð»Ð»ÐµÑ Ð²ÑÑÑÐ¾ÐµÐ½Ñ Ð² ÑÐ¾Ð±Ð¾Ñ Ð´Ð»Ñ ÑокÑаÑÐµÐ½Ð¸Ñ ÐºÐ°Ð±ÐµÐ»ÑнÑÑ Ñоединений.
- ÐÑполнение Ð´Ð»Ñ Ð¿Ð¾ÑолоÑного монÑажа Ð´Ð»Ñ ÑÑÑекÑивного иÑполÑÐ·Ð¾Ð²Ð°Ð½Ð¸Ñ ÑабоÑего пÑоÑÑÑанÑÑва.
- РадиÑÑ Ð´ÐµÐ¹ÑÑвиÑ: модели на 600 и 800 мм.
- ÐакÑ. Ð¿Ð¾Ð»ÐµÐ·Ð½Ð°Ñ Ð½Ð°Ð³ÑÑзка 5,5 кг.
- СÑÐµÐ¿ÐµÐ½Ñ Ð·Ð°ÑиÑÑ IP20 (IP65 в каÑеÑÑве опÑии Ñ Ð¼Ð¾Ð´ÐµÐ»ÐµÐ¹ на 800 мм.
- ÐÑполнение Ð´Ð»Ñ ÑиÑÑÑÑ ÑÑед C10 (опÑиÑ).
Ordering information
Single-robot system
Â
Multi-robot system
Â
eCobra 800
Size | Cleanroom/IP | Type | Overview | Purpose | Bundled accessories | Order code |
|---|---|---|---|---|---|---|
eCobra 800 | Standard | Lite | Robot + eAIB with fully integrated controls | Typical for use in single robot system |
| 17010-18000 |
Standard | 17111-18000 | |||||
Pro | 17211-18000 | |||||
Cleanroom | Lite | 17010-18010 | ||||
Standard | 17111-18010 | |||||
Pro | 17211-18010 | |||||
IP65 | Lite |
| 17010-18030 | |||
Standard | 17111-18030 | |||||
Pro | 17211-18030 | |||||
eCobra 800 Add-On | Standard | Standard | Robot + eAIB with required connection cables | Typically added to systems with an existing SmartController EX to create multi-robot systems |
| 17113-18000 |
Pro | 17213-18000 | |||||
Cleanroom | Standard | 17113-18010 | ||||
Pro | 17213-18010 | |||||
IP65 | Standard |
| 17113-18030 | |||
Pro | 17213-18030 |
eCobra 800 Inverted
Size | Cleanroom/IP | Type | Overview | Purpose | Bundled accessories | Order code |
|---|---|---|---|---|---|---|
eCobra 800 Inverted | Standard | Lite | Robot + eAIB with fully integrated controls | Typical for use in single robot system |
| 17010-18400 |
Standard | 17111-18400 | |||||
Pro | 17211-18400 | |||||
Cleanroom | Lite | 17010-18410 | ||||
Standard | 17111-18410 | |||||
Pro | 17211-18410 | |||||
IP65 | Lite |
| 17010-18430 | |||
Standard | 17111-18430 | |||||
Pro | 17211-18430 | |||||
eCobra 800 Inverted Add-On | Standard | Standard | Robot + eAIB with required connection cables | Typically added to systems with an existing SmartController EX to create multi-robot systems |
| 17113-18400 |
Pro | 17213-18400 | |||||
Cleanroom | Standard | 17113-18410 | ||||
Pro | 17213-18410 | |||||
IP65 | Standard | 17113-18430 | ||||
Pro | 17213-18430 |
eCobra 600
Size | Cleanroom/IP | Type | Overview | Purpose | Bundled accessories | Order code |
|---|---|---|---|---|---|---|
eCobra 600 | Standard | Lite | Robot + eAIB with fully integrated controls | Typical for use in single robot system |
| 17010-16000 |
Standard | 17111-16000 | |||||
Pro | 17211-16000 | |||||
Cleanroom | Lite | 17010-16010 | ||||
Standard | 17111-16010 | |||||
Pro | 17211-16010 | |||||
eCobra 600 Add-On | Standard | Standard | Robot + eAIB with required connection cables | Typically added to systems with an existing SmartController EX to create multi-robot systems |
| 17113-16000 |
Pro | 17213-16000 | |||||
Cleanroom | Standard | 17113-16010 | ||||
Pro | 17213-16010 |
Options
Refer to the section âOptions for Hornet/Quattro/Viper/Cobra/eCobra robotsâ for details.
Specifications
eCobra 800
Product name | eCobra | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|
Size | 800 | |||||||||
Type | Lite | Standard | Pro | |||||||
Cleanroom/IP | Standard | Cleanroom | IP65 | Standard | Cleanroom | IP65 | Standard | Cleanroom | IP65 | |
Model | 17010-18000 | 17010-18010 | 17010-18030 | 1711â¬-18000 | 1711â¬-18010 | 1711â¬-18030 | 1721â¬-18000 | 1721â¬-18010 | 1721â¬-18030 | |
Number of axes | 4 | |||||||||
Mounting | Table/Floor | |||||||||
Reach | 800 mm | |||||||||
Maximum payload | 5.5 kg | |||||||||
Repeatability | XY | ±0.017 mm | ||||||||
Z | ±0.003 mm | |||||||||
θ | ±0.019° | |||||||||
Joint range | Joint 1 | ±105° | ||||||||
Joint 2 | ±157.5° | |||||||||
Joint 3 | 210 mm | |||||||||
Joint 4 | ±360° | |||||||||
Inetia moment (Max.) | Joint 4 | 450 kg-cm2 | ||||||||
Joint speeds | Joint 1 | 386°/s | ||||||||
Joint 2 | 720°/s | |||||||||
Joint 3 | 1100 mm/s | |||||||||
Joint 4 | 1200°/s | |||||||||
Cycle times | Burst | 0.73 s | 0.62 s | 0.44 s | ||||||
Sustained | 0.73 s | 0.62 s | 0.54 s | |||||||
Power requirements | 24 VDC: 6 A 200 to 240 VAC: 10 A, single-phase | |||||||||
Protection | IP20 | IP20 | IP65 | IP20 | IP20 | IP65 | IP20 | IP20 | IP65 | |
Clean Class | â | Class 10 | â | â | Class 10 | â | â | Class 10 | â | |
Environment requirements | Ambient temperature | 5 to 40°C | ||||||||
Humidity range | 5% to 90% (non-condensing) | |||||||||
Weight | 43 kg | |||||||||
Basic configuration | Controller | eAIB | ||||||||
On-board I/O | 12/8, 4 Solenoid Output | |||||||||
Conveyor tracking input | No | 2 | ||||||||
RS-232C serial communications port | No | 1 | ||||||||
Programming environment | ACE | ACE, PackXpert, ePLC | ||||||||
ACE Sight | No | Yes | ||||||||
ePLC Connect | No | Yes | ||||||||
ePLC I/O | No | Yes | Yes | |||||||
Connectable controller | No | SmartController EX, NX/NY/NJ Series | ||||||||
eCobra 800 Inverted
Product name | eCobra Inverted | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|
Size | 800 | |||||||||
Type | Lite | Standard | Pro | |||||||
Cleanroom/IP | Standard | Cleanroom | IP65 | Standard | Cleanroom | IP65 | Standard | Cleanroom | IP65 | |
Model | 17010-18400 | 17010-18410 | 17010-18430 | 1711â¬-18400 | 1711â¬-18410 | 1711â¬-18430 | 1721â¬-18400 | 1721â¬-18410 | 1721â¬-18430 | |
Number of axes | 4 | |||||||||
Mounting | Inverted | |||||||||
Reach | 800 mm | |||||||||
Maximum payload | 5.5 kg | |||||||||
Repeatability | XY | ±0.017 mm | ||||||||
Z | ±0.003 mm | |||||||||
θ | ±0.019° | |||||||||
Joint range | Joint 1 | ±123.5° | ||||||||
Joint 2 | ±156.5° | |||||||||
Joint 3 | 210 mm | |||||||||
Joint 4 | ±360° | |||||||||
Inetia moment (Max.) | Joint 4 | 450 kg-cm2 | ||||||||
Joint speeds | Joint 1 | 386°/s | ||||||||
Joint 2 | 720°/s | |||||||||
Joint 3 | 1100 mm/s | |||||||||
Joint 4 | 1200°/s | |||||||||
Power requirements | 24 VDC: 6 A 230 VAC: 10 A | |||||||||
Protection | IP20 | IP20 | IP65 | IP20 | IP20 | IP65 | IP20 | IP20 | IP65 | |
Clean Class | â | Class 10 | â | â | Class 10 | â | â | Class 10 | â | |
Environment requirements | Ambient temperature | 5 to 40°C | ||||||||
Humidity range | 5% to 90% (non-condensing) | |||||||||
Weight | 51 kg | |||||||||
Basic configuration | Controller | eAIB | ||||||||
On-board I/O (Input/Output) | 12/8, 4 Solenoid Output | |||||||||
Conveyor tracking input | No 2 | |||||||||
RS-232C serial communications port | No | 1 | ||||||||
Programming environment | ACE | ACE, PackXpert, ePLC | ||||||||
ACE Sight | No | Yes | ||||||||
ePLC Connect | No | Yes | ||||||||
ePLC I/O | No | Yes | Yes | |||||||
Connectable controller | No | SmartController EX, NX/NY/NJ Series | ||||||||
eCobra 600
Product name | eCobra | ||||||
|---|---|---|---|---|---|---|---|
Size | 600 | ||||||
Type | Lite | Standard | Pro | ||||
Cleanroom/IP | Standard | Cleanroom | Standard | Cleanroom | Standard | Cleanroom | |
Model | 17010-16000 | 17010-16010 | 1711â¬-16000 | 1711â¬-16010 | 1721â¬-16000 | 1721â¬-16010 | |
Number of axes | 4 | ||||||
Mounting | Table/Floor | ||||||
Reach | 600 mm | ||||||
Maximum payload | 5.5 kg | ||||||
Repeatability | XY | ±0.017 mm | |||||
Z | ±0.003 mm | ||||||
θ | ±0.019° | ||||||
Joint range | Joint 1 | ±105° | |||||
Joint 2 | ±157.5° | ||||||
Joint 3 | 210 mm | ||||||
Joint 4 | ±360° | ||||||
Inetia moment (Max.) | Joint 4 | 450 kg-cm2 | |||||
Joint speeds | Joint 1 | 386°/s | |||||
Joint 2 | 720°/s | ||||||
Joint 3 | 1100 mm/s | ||||||
Joint 4 | 1200°/s | ||||||
Cycle times | Burst | 0.66 s | 0.55 s | 0.39 s | |||
Sustained | 0.66 s | 0.55 s | 0.45 s | ||||
Power requirements | 24 VDC: 6 A 200 to 240 VAC: 10 A, single-phase | ||||||
Protection | IP20 | ||||||
Clean Class | â | Class 10 | â | Class 10 | â | Class 10 | |
Environment requirements | Ambient temperature | 5 to 40°C | |||||
Humidity range | 5% to 90% (non-condensing) | ||||||
Weight | 41 kg | ||||||
Basic configuration | Controller | eAIB | |||||
On-board I/O (Input/Output) | 12/8, 4 Solenoid Output | ||||||
Conveyor tracking input | No 2 | ||||||
RS-232C serial communications port | No | 1 | |||||
Programming environment | ACE | ACE, PackXpert, ePLC | |||||
ACE Sight | No | Yes | |||||
ePLC Connect | No | Yes | |||||
ePLC I/O | No | Yes | Yes | ||||
Connectable controller | No | SmartController EX, NX/NY/NJ Series | |||||
Dimensions
eCobra 800
eCobra 800 Inverted
Â
eCobra 600
Â
Â
