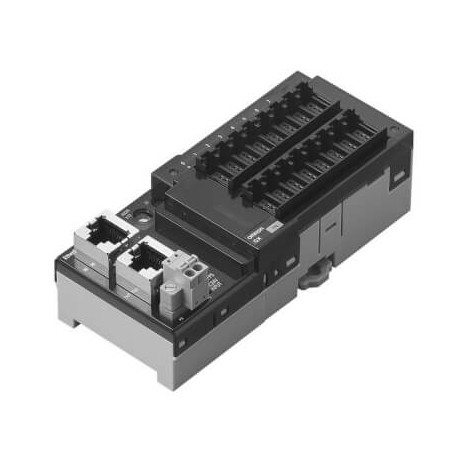

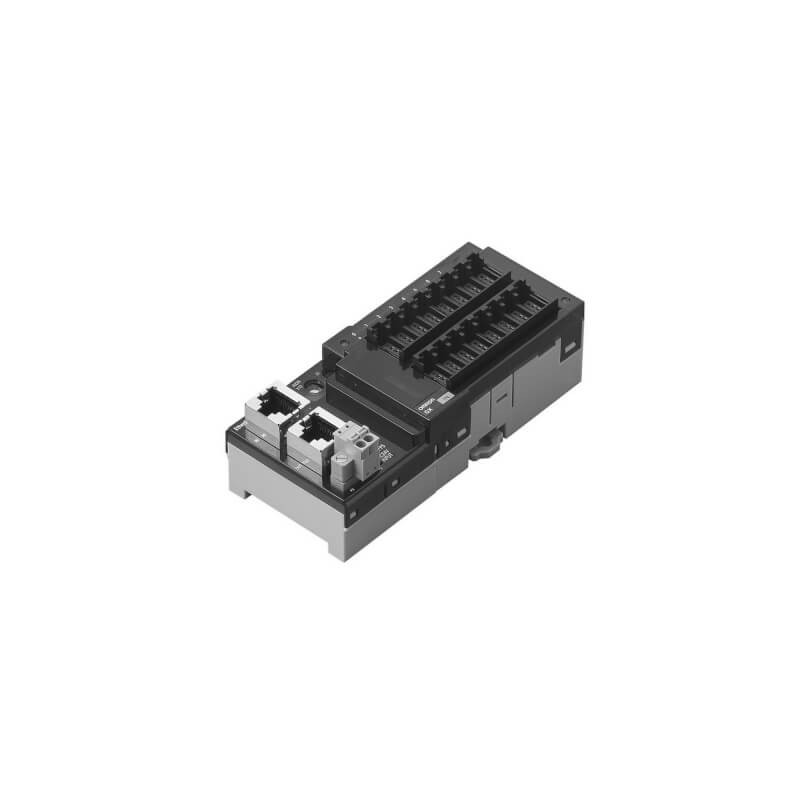

GX-MD1618 GX 5003M GXMD1618 OMRON EtherCAT digital I/O unit, 8 x inputs + 8 x выходы, NPN, и-С connectors (n..
GX-MD1618
GX 5003M
GXMD1618
OMRON
EtherCAT digital I/O unit, 8 x inputs + 8 x выходы, NPN, и-С connectors (not included)
EtherCAT цифровой блок I/O, 8 x входных данных 8 x выходов, NPN, разъемы e-CON (не включены)
Блок цифрового ввода-вывода EtherCAT, 8 входов + 8 выходов, NPN, разъемы e-CON (не входят в комплект)
Программируемые логические контроллеры (ПЛК) > Полевая шина, децентрализованная периферия - цифров. модуль ввода/вывода
Remote I / O > Другое Remote I / O
Новый продукт в оригинальной упаковке со всеми гарантиями и сертификатами OMRON
Best sellers
▲Описание
▲Технические характеристики
| Communication port(s) | EtherCAT Slave |
| Type of module | Digital I/O |
| I/O connection type | e-Con (plug not included) |
| Connection method | 3-wire |
| Number of digital inputs | 8 |
| Digital input type | NPN |
| Permitted voltage at input | 0-26.4 V |
| Number of digital outputs | 8 |
| Digital output type | NPN |
| Permitted voltage at output | 0-26.4 V |
| Output current | 0.5 A |
| Short-circuit protected outputs | |
| Number of IOV (V+) terminals | 18 |
| Number of IOG (V-) terminals | 18 |
| Number of COM terminals | 0 |
| I/O system | None |
| Degree of protection (IP) | IP20 |
| Height | 52 mm |
| Width | 115 mm |
| Depth | 50 mm |
| Характеристика | Значение |
|---|---|
| Explosion safety category for dust (EF003998) | None |
| Type of voltage (input voltage) (EF003033) | DC |
| Type of output voltage (EF008222) | DC |
| Degree of protection (IP) (EF005474) | IP20 |
| Performance level according to EN ISO 13849-1 (EF007399) | Level a |
| Type of digital output (EF003601) | Transistor |
| Type of electric connection (EF003961) | Screw connection |
| SIL according to IEC 61508 (EF009889) | None |
| Voltage type (supply voltage) (EF002991) | DC |
| Explosion safety category for gas (EF003997) | None |
| Radio standard UMTS (EF008525) | No |
| Supporting protocol for PROFIsafe (EF007526) | No |
| System accessory (EF004118) | No |
| Certified for UL hazardous location class III (EF017627) | No |
| Supporting protocol for PROFIBUS (EF003052) | No |
| Radio standard GPRS (EF008523) | No |
| Supporting protocol for EtherCAT (EF017564) | Yes |
| Certified for UL hazardous location class II (EF017625) | No |
| Appendant operation agent (Ex ib) (EF004142) | No |
| Certified for UL hazardous location class I (EF017622) | No |
| Supporting protocol for DeviceNet Safety (EF007520) | No |
| Supporting protocol for TCP/IP (EF003050) | No |
| Wall mounting/direct mounting (EF007020) | No |
| Supporting protocol for other bus systems (EF003062) | Yes |
| Front built-in possible (EF007016) | No |
| Supporting protocol for Foundation Fieldbus (EF007522) | No |
| Supporting protocol for SafetyBUS p (EF007527) | No |
| Supporting protocol for SERCOS (EF006657) | No |
| Fieldbus connection over separate bus coupler possible (EF004002) | No |
| Appendant operation agent (Ex ia) (EF004141) | No |
| IO link master (EF007298) | No |
| Rack-assembly possible (EF007018) | No |
| Supporting protocol for Modbus (EF003057) | No |
| Supporting protocol for KNX (EF003055) | No |
| Certified for UL hazardous location group G (non-conductive dusts) (EF017639) | No |
| Supporting protocol for PROFINET CBA (EF007524) | No |
| Certified for UL hazardous location group F (carbonaceous dusts) (EF017638) | No |
| Supporting protocol for LON (EF003017) | No |
| Radio standard Bluetooth (EF007178) | No |
| Supporting protocol for SUCONET (EF003060) | No |
| Suitable for safety functions (EF001597) | No |
| Certified for UL hazardous location group E (metal dusts) (EF017637) | No |
| With optical interface (EF003028) | No |
| Supporting protocol for EtherNet/IP (EF007521) | No |
| Supporting protocol for CAN (EF003053) | No |
| Supporting protocol for AS-Interface Safety at Work (EF007519) | No |
| Radio standard WLAN 802.11 (EF007179) | No |
| Certified for UL hazardous location group A (acetylene) (EF017632) | No |
| Radio standard GSM (EF008524) | No |
| Supporting protocol for INTERBUS (EF003054) | No |
| Certified for UL hazardous location division 2 (EF017629) | No |
| Supporting protocol for Data-Highway (EF003058) | No |
| Certified for UL hazardous location division 1 (EF017628) | No |
| Short-circuit protection, outputs available (EF003203) | No |
| Supporting protocol for PROFINET IO (EF007525) | No |
| Certified for UL hazardous location group D (propane) (EF017636) | No |
| Supporting protocol for ASI (EF003051) | No |
| Certified for UL hazardous location group C (ethylene) (EF017635) | No |
| Supporting protocol for DeviceNet (EF003059) | No |
| Suitable for rail mounting (EF003972) | Yes |
| Supporting protocol for INTERBUS-Safety (EF006662) | No |
| Certified for UL hazardous location group B (hydrogen) (EF017633) | No |
| Input current at signal 1 (EF001428) | 6 mA |
| Number of HW-interfaces other (EF003027) | 0 |
| Number of HW-interfaces parallel (EF003026) | 0 |
| Number of interfaces PROFINET (EF006932) | 0 |
| Number of digital outputs (EF001993) | 8 |
| Number of HW-interfaces industrial Ethernet (EF003020) | 2 |
| Output current (EF003202) | 0.5 A |
| Number of HW-interfaces USB (EF003025) | 0 |
| Width (EF000008) | 115 mm |
| Number of HW-interfaces RS-232 (EF003021) | 0 |
| Number of HW-interfaces RS-422 (EF003022) | 0 |
| Number of HW-interfaces RS-485 (EF003023) | 0 |
| Number of digital inputs (EF001992) | 8 |
| Number of HW-interfaces serial TTY (EF003024) | 0 |
| Height (EF000040) | 52 mm |
| Depth (EF000049) | 49.8 mm |
| Number of HW-interfaces wireless (EF006933) | 0 |
| Permitted voltage at input (EF007554) | 0 V |
| Time delay at signal change (EF002382) | 0.1 ms |
| Permitted voltage at output (EF007553) | 0 V |
| Supply voltage DC (EF007534) | 20.4 V |
Datasheet - PDF
▲| Заглавие: | Размер: | Тип: |
|---|---|---|
| PDF CATALOGO OMRON AUTOMATION EN.pdf | 19 Mbytes |
|
| PDF CATALOG OMRON RU.pdf | 70 Mbytes |
|
| GX-MD1618 GXMD1618 GX 5003M ES_GX-ID1611.pdf | 7 Mbytes |
|
