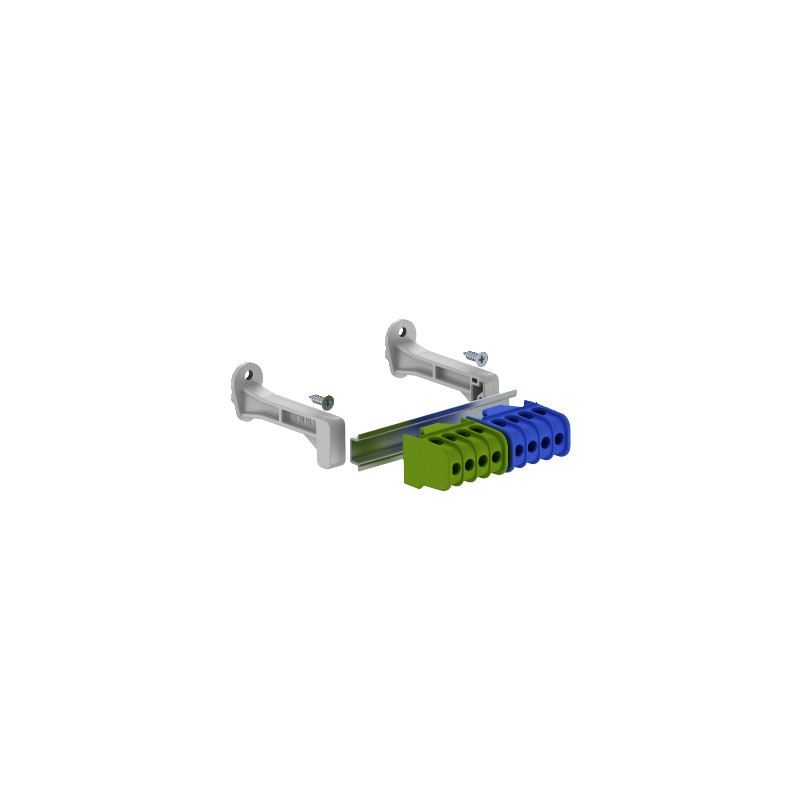

OBO BETTERMANN KLS-SDB 05 2008884 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

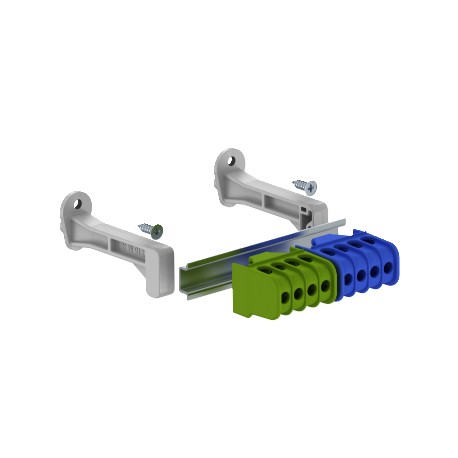

KLS-SDB 05 2008884 OBO BETTERMANN STRIP CONEX4 POLES P/ SDB 05

Reference: KLS-SDB 05

Code: 2008884

Manufacturer: OBO BETTERMANN

Description:

STRIP CONEX4 POLES P/ SDB 05
KLS-SDB 05 Connection strip Fixing with screws 121x15x4
Terminal strip set with screw terminals for SDB 05. Terminal strip set for the small distributors of the SDB series. The sets can be used to expand and equip empty small distributors of the SDB 05... type series.Mounting instructions; hat rail with corresponding support and fastening material; 16 mm² protective conductor terminal; 16 mm² neutral conductor terminal

Categories:

  • Terminal blocks > Single- and multi-pole terminal strip
  • OBO BETTERMANN > VBS Connection and fastening systems - OBO BETTERMANN

Brand new product in its original packaging covered by the warranties and certifications provided by OBO BETTERMANN

  • More Info
  • PDF
  • Reviews
Guarantee, repair and return.

Unit Price: 14,64 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 3 weeks.

  • These delivery times are an estimate any may vary when the item order has been processed.

LAST VIEWED

MORE INFO

CO2 Footprint (GWP) Cradle-to-Gate0,4205 kg CO2e / 1 Piece
Dimension121x15x4
Height31 mm
Length82 mm
Nominal cross-section, max.16 mm²
Nominal cross-section, min.6 mm²
Nominal current100 A
Nominal voltage450 V
Number of screwless terminals per pole4
Width20,5 mm
