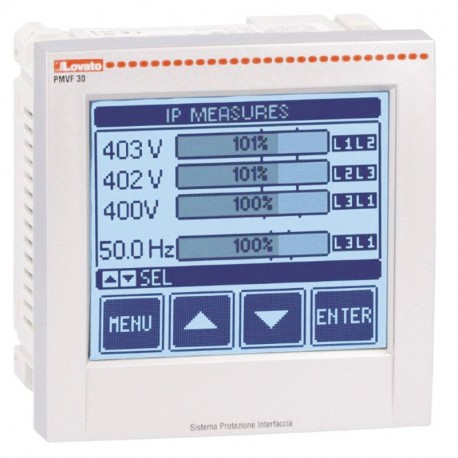

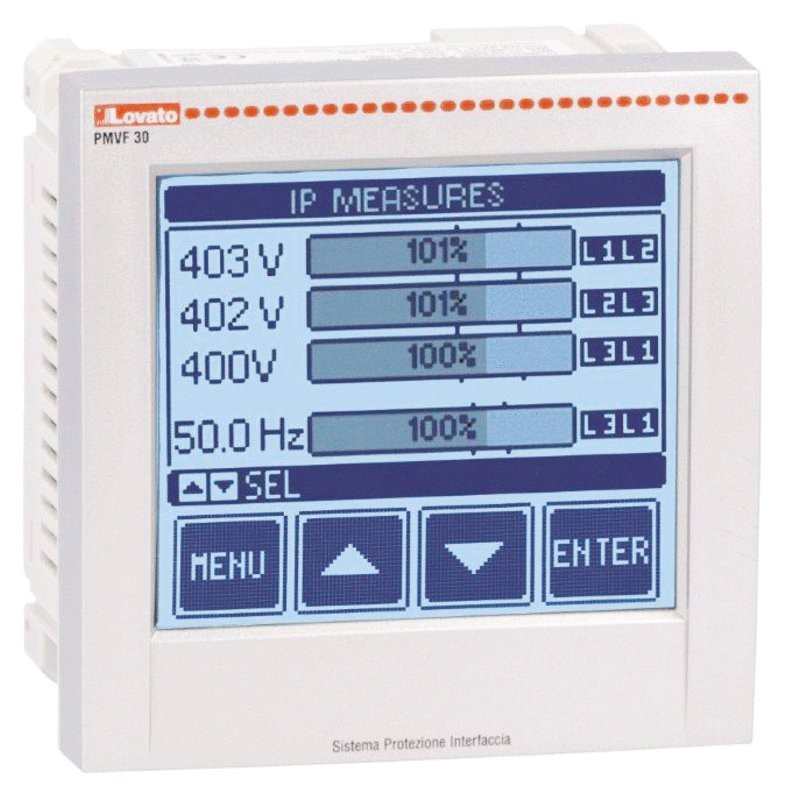

LOVATO ELECTRIC PMVF30D048 PMVF30D048 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

PMVF30D048 LOVATO INTERFACE PROTECTION SYSTEM UNITS COMPLIANT WITH ITALIAN STANDARD CEI 0-16, AUGUST 2017 ED..

Reference: PMVF30D048

Manufacturer: LOVATO ELECTRIC

Description:

INTERFACE PROTECTION SYSTEM UNITS COMPLIANT WITH ITALIAN STANDARD CEI 0-16, AUGUST 2017 EDITION FOR MEDIUM-VOLTAGE SYSTEM, DUAL THRESHOLD MINIMUM AND MAXIMUM VOLTAGE AND FREQUENCY PROTECTION, MEASUREMENTS VIA VTS IN MV OR DIRECT IN LV
CEI 0-16 MOD. MONITORING RELAY 12-48VDC
Interface protection system unit compliant with italian standard CEI 0-16, for MV system, dual threshold minimum and maximum voltage and frequency protection, measurements via VTS in MV or direct in LV

Categories:

  • Relays > Voltage monitoring relay
  • LOVATO ELECTRIC > Protection relays - LOVATO ELECTRIC

Brand new product in its original packaging covered by the warranties and certifications provided by LOVATO ELECTRIC

  • More Info
  • ETIM
  • PDF
  • Reviews
Guarantee, repair and return.

* This article may be obsolete. Ask for a quotation and we will check if there are any units available. If not, one of our technicians will look for an alternative solution.

Ask for a quotation and we will check if there are any units available. If not, one of our technicians will look for an alternative solution.

  • These delivery times are an estimate any may vary when the item order has been processed.

MORE INFO

PMVF30D048

Interface protection system unit compliant with italian standard CEI 0-16, for MV system, dual threshold minimum and maximum voltage and frequency protection, measurements via VTS in MV or direct in LV

Technical specifications

Type of product:
Interface protection system unit
Number of relay outputs:
2
Rated supply voltage:
12...48VDC
Rated current Ie [A]:
CT /5A /1A
Order codePMVF30D048
Weight [g]660
Qty. per package1
Multiple qty. of packs per order1
Package dimensions [mm]127X102X146
Volume [cm³]1891.284
Bar code [EAN13]8013975205198
HS Code85364900

3769.91 £

ETIM for PMVF30D048 Relays (EC001438)

Feature nameType of electric connection (EF003961)
Feature valueScrew connection
Feature nameType of voltage measuring range (EF003399)
Feature valueAC
Feature nameVoltage measuring range 1 (EF006134)
Feature value400 V
Feature nameContains function DC-voltage hysteresis (EF003398)
Feature valueNo
Feature nameContains function DC-over voltage (EF003397)
Feature valueNo
Feature nameContains function DC-under voltage (EF003396)
Feature valueNo
Feature nameThree-phase hysteresis possible (EF003395)
Feature valueYes
Feature nameSingle-phase hysteresis possible (EF003394)
Feature valueYes
Feature nameThree-phase over voltage possible (EF003393)
Feature valueYes
Feature nameSingle-phase over voltage possible (EF003392)
Feature valueYes
Feature nameThree-phase under voltage possible (EF003391)
Feature valueYes
Feature nameSingle-phase under voltage possible (EF003390)
Feature valueYes
Feature nameWith detachable clamps (EF003340)
Feature valueNo
Feature nameNumber of contacts as change-over contact (EF008257)
Feature value2
Feature nameNumber of contacts as normally open contact (EF008256)
Feature value0
Feature nameNumber of contacts as normally closed contact (EF008255)
Feature value0
Feature nameMin. adjustable delay-on energization time (EF008190)
Feature value4 s
Feature nameMax. permitted delay-on energization time (EF008189)
Feature value60 s
Feature nameDepth (EF000049)
Feature value80 mm
Feature nameHeight (EF000040)
Feature value96 mm
Feature nameWidth (EF000008)
Feature value96 mm

DATASHEET - PDF

Title
Size
Type
PMVF30D048 PMVF30D048 18-Monitoring-relays-18-January-2018_EN.pdf
1 Mbytes
PDF CATALOGUE LOVATO EN
99 Mbytes
