LOVATO ELECTRICIndustrial Contactors and Accessories - LOVATO ELECTRICBF3800D048 LOVATO THREE-POLE CONTACTOR, IEC OPERATING CURRENT IE (AC3) 38A, DC COIL, 48VDC

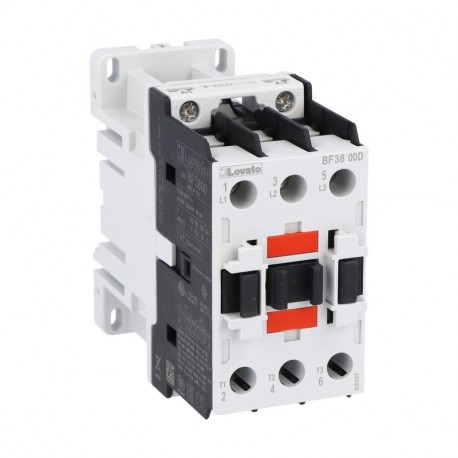

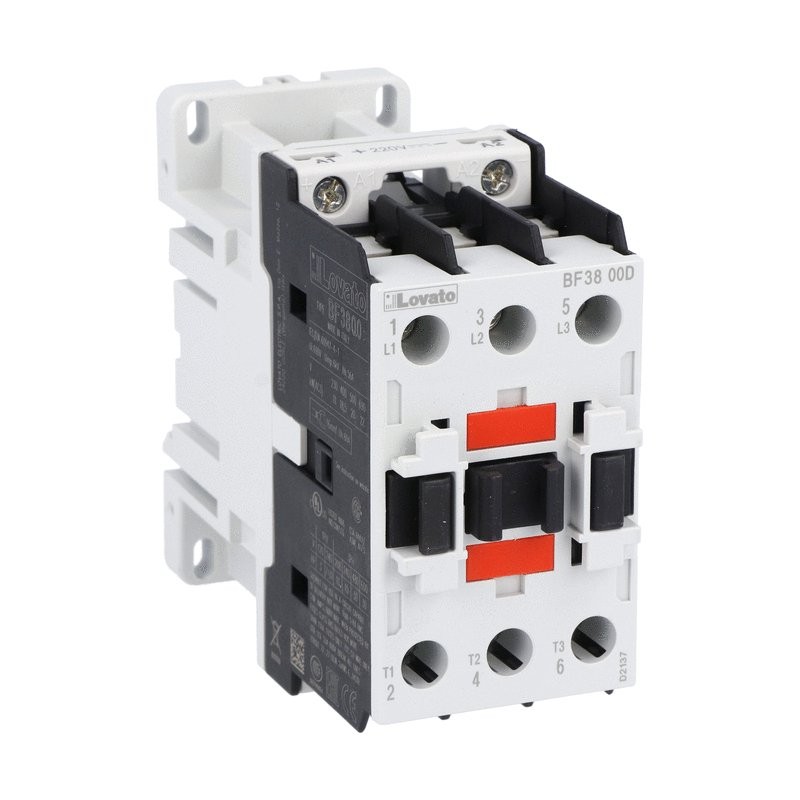

LOVATO ELECTRIC BF3800D048 BF3800D048 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

BF3800D048 LOVATO THREE-POLE CONTACTOR, IEC OPERATING CURRENT IE (AC3) 38A, DC COIL, 48VDC

Reference: BF3800D048

Manufacturer: LOVATO ELECTRIC

Description:

THREE-POLE CONTACTOR, IEC OPERATING CURRENT IE (AC3) = 38A, DC COIL, 48VDC
3P CONTACTOR 38A AC3 48VDC
Three-pole contactor, IEC operating current Ie (AC3) = 38A, DC coil, 48VDC

Categories:

  • Low-voltage industrial components > Power contactor, AC switching
  • LOVATO ELECTRIC > Industrial Contactors and Accessories - LOVATO ELECTRIC

Brand new product in its original packaging covered by the warranties and certifications provided by LOVATO ELECTRIC

  • More Info
  • ETIM
  • PDF
  • Reviews
Guarantee, repair and return.

Unit Price: 130,42 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 2 weeks.

  • These delivery times are an estimate any may vary when the item order has been processed.

MORE INFO

BF3800D048

Three-pole contactor, IEC operating current Ie (AC3) = 38A, DC coil, 48VDC

Technical specifications

Type of product:
Contactors
Number of poles:
3
Type of coil:
DC coil
Rated coil voltage [V]:
48
IEC operating current Ith (AC1) [A]:
56
IEC operating current and power Ie (AC3) 400V [A/Kw]:
38A / 18.5Kw
UL/CSA horsepower ratings 480V [HP]:
30
Type of mounting:
Screw / DIN rail 35mm
Order codeBF3800D048
Weight [g]560
Qty. per package1
Multiple qty. of packs per order1
Package dimensions [mm]093X048X110
Volume [cm³]491.04
Bar code [EAN13]8013975166697
HS Code85365080

240.47 £

ETIM for BF3800D048 Low-voltage industrial controls and switchgear (EC000066)

Feature nameVoltage type for actuating (EF008242)
Feature valueDC
Feature nameType of electrical connection of main circuit (EF006819)
Feature valueScrew connection
Feature nameRated control supply voltage DC (EF003980)
Feature value48 V
Feature nameModular version (EF001126)
Feature valueNo
Feature nameRated operation current Ie at AC-4, 400 V (EF008495)
Feature value15.5 A
Feature nameRated operation current Ie at AC-1, 400 V (EF001393)
Feature value56 A
Feature nameRated operation current Ie at AC-3, 400 V (EF001392)
Feature value38 A
Feature nameNumber of auxiliary contacts as normally closed contact (EF001377)
Feature value0
Feature nameNumber of auxiliary contacts as normally open contact (EF001376)
Feature value0
Feature nameNumber of normally closed contacts as main contact (EF001375)
Feature value0
Feature nameNumber of normally open contacts as main contact (EF001374)
Feature value3
Feature nameRated operation power at AC-3, 400 V (EF001364)
Feature value18.5 kW

DATASHEET - PDF

Title
Size
Type
BF3800D048 BF3800D048 02-Contactors-02-January-2018_EN.pdf
6 Mbytes
PDF CATALOGUE LOVATO EN
99 Mbytes
