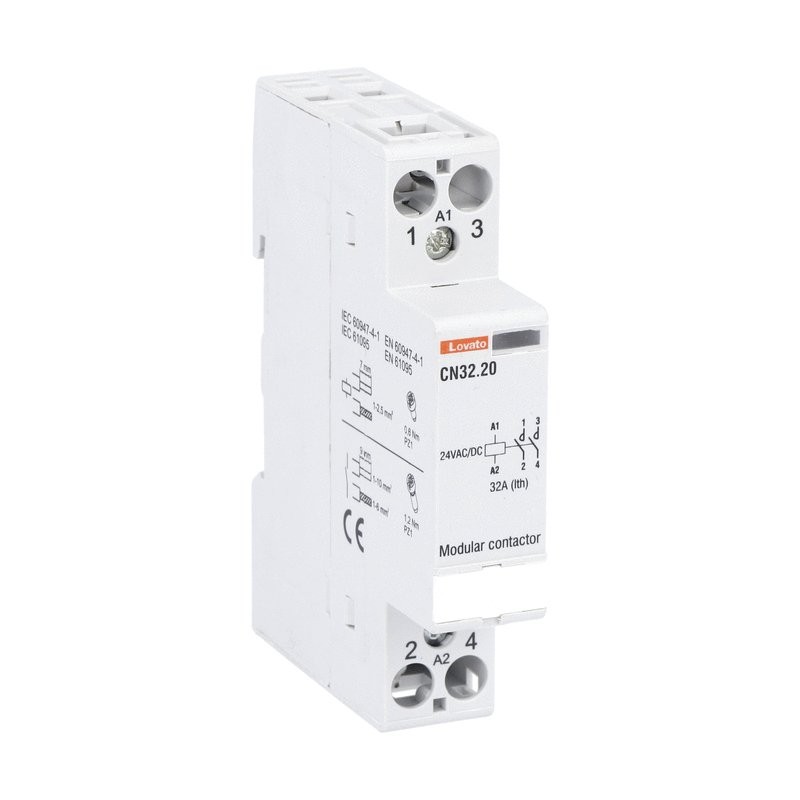

LOVATO ELECTRIC CN3220024 CN3220024 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

CN3220024 LOVATO MODULAR CONTACTOR, ONE OR TWO-POLE, 32A AC1, 24VAC/DC (2NO)

Reference: CN3220024

Manufacturer: LOVATO ELECTRIC

Description:

MODULAR CONTACTOR, ONE OR TWO-POLE, 32A AC1, 24VAC/DC (2NO)
MODULAR CONT. 1M 32A AC1 2P 24V
Modular contactor, one or two-pole, 32A AC1, 24VAC/DC (2NO)

Categories:

  • Low-voltage industrial components > Power contactor, AC switching
  • LOVATO ELECTRIC > Modular contactors - LOVATO ELECTRIC

Brand new product in its original packaging covered by the warranties and certifications provided by LOVATO ELECTRIC

  • More Info
  • ETIM
  • PDF
  • Reviews
Guarantee, repair and return.

Unit Price: 31,56 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 3 days.

  • These delivery times are an estimate any may vary when the item order has been processed.

LAST VIEWED

MORE INFO

CN3220024

Modular contactor, one or two-pole, 32A AC1, 24VAC/DC (2NO)

Technical specifications

Type of product:
Contactors
Number of DIN modules:
1
Rated supply voltage:
24VAC/DC
IEC Conventional free air thermal current Ith [A]:
32
Type of contacts:
2NO
Order codeCN3220024
Weight [g]136
Qty. per package10
Multiple qty. of packs per order10
Package dimensions [mm]178X090X072
Volume [cm³]115.344
Bar code [EAN13]8013975218112
HS Code85365080

49.07 £

ETIM for CN3220024 Low-voltage industrial controls and switchgear (EC000066)

Feature nameVoltage type for actuating (EF008242)
Feature valueAC/DC
Feature nameType of electrical connection of main circuit (EF006819)
Feature valueFrame clamp
Feature nameRated control supply voltage DC (EF003980)
Feature value24 V
Feature nameRated control supply voltage AC 60 Hz (EF003979)
Feature value24 V
Feature nameRated control supply voltage AC 50 Hz (EF003978)
Feature value24 V
Feature nameModular version (EF001126)
Feature valueYes
Feature nameRated operation current Ie at AC-1, 400 V (EF001393)
Feature value32 A
Feature nameRated operation current Ie at AC-3, 400 V (EF001392)
Feature value9 A
Feature nameNumber of auxiliary contacts as normally closed contact (EF001377)
Feature value0
Feature nameNumber of auxiliary contacts as normally open contact (EF001376)
Feature value2
Feature nameNumber of normally closed contacts as main contact (EF001375)
Feature value0
Feature nameNumber of normally open contacts as main contact (EF001374)
Feature value2
