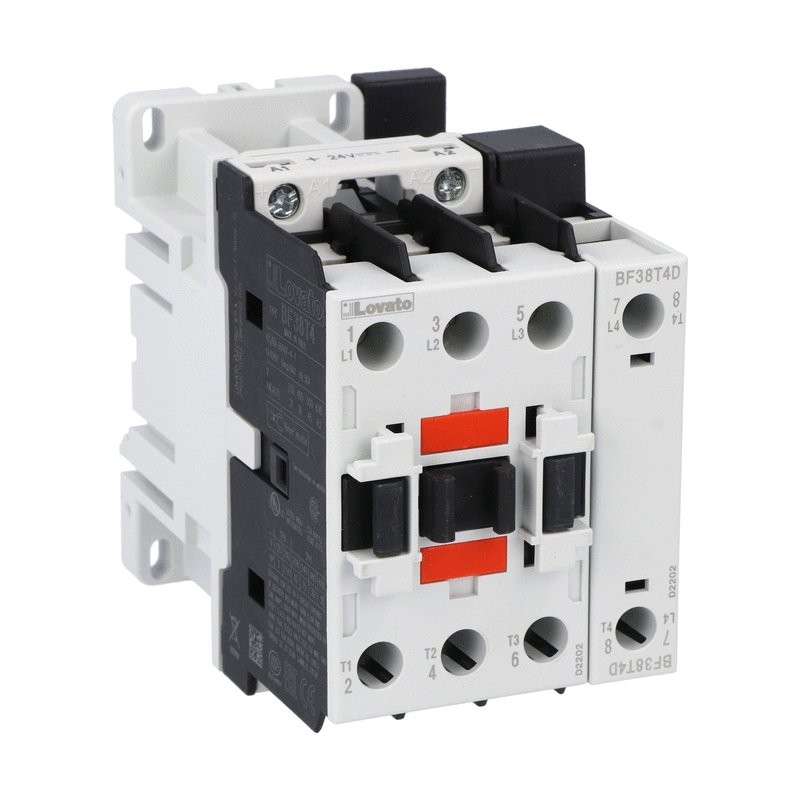

LOVATO ELECTRIC BF38T4D012 BF38T4D012 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

BF38T4D012 LOVATO FOUR-POLE CONTACTOR, IEC OPERATING CURRENT ITH (AC1) 56A, DC COIL, 12VDC

Reference: BF38T4D012

Manufacturer: LOVATO ELECTRIC

Description:

FOUR-POLE CONTACTOR, IEC OPERATING CURRENT ITH (AC1) = 56A, DC COIL, 12VDC
4P CONTACTOR NO 56A AC1 12VDC
Four-pole contactor, IEC operating current Ith (AC1) = 56A, DC coil, 12VDC

Categories:

  • Low-voltage industrial components > Power contactor, AC switching
  • LOVATO ELECTRIC > Industrial Contactors and Accessories - LOVATO ELECTRIC

Brand new product in its original packaging covered by the warranties and certifications provided by LOVATO ELECTRIC

  • More Info
  • ETIM
  • PDF
  • Reviews
Guarantee, repair and return.

Unit Price: 240,06 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 2 weeks.

  • These delivery times are an estimate any may vary when the item order has been processed.

MORE INFO

BF38T4D012

Four-pole contactor, IEC operating current Ith (AC1) = 56A, DC coil, 12VDC

Technical specifications

Type of product:
Contactors
Number of poles:
4
Type of coil:
DC coil
Rated coil voltage [V]:
12
IEC operating current Ith (AC1) [A]:
56
IEC operating current and power Ie (AC3) 400V [A/Kw]:
38A / 18.5Kw
UL/CSA horsepower ratings 480V [HP]:
30
Type of mounting:
Screw / DIN rail 35mm
Order codeBF38T4D012
Weight [g]660
Qty. per package1
Multiple qty. of packs per order1
Package dimensions [mm]100X076X115
Volume [cm³]874
Bar code [EAN13]8013975166956
HS Code85365080

355.84 £

ETIM for BF38T4D012 Low-voltage industrial controls and switchgear (EC000066)

Feature nameVoltage type for actuating (EF008242)
Feature valueDC
Feature nameType of electrical connection of main circuit (EF006819)
Feature valueScrew connection
Feature nameRated control supply voltage DC (EF003980)
Feature value12 V
Feature nameModular version (EF001126)
Feature valueNo
Feature nameRated operation current Ie at AC-4, 400 V (EF008495)
Feature value15.5 A
Feature nameRated operation current Ie at AC-1, 400 V (EF001393)
Feature value56 A
Feature nameRated operation current Ie at AC-3, 400 V (EF001392)
Feature value38 A
Feature nameNumber of auxiliary contacts as normally closed contact (EF001377)
Feature value0
Feature nameNumber of auxiliary contacts as normally open contact (EF001376)
Feature value0
Feature nameNumber of normally closed contacts as main contact (EF001375)
Feature value0
Feature nameNumber of normally open contacts as main contact (EF001374)
Feature value4
Feature nameRated operation power at AC-3, 400 V (EF001364)
Feature value18.5 kW

DATASHEET - PDF

Title
Size
Type
BF38T4D012 BF38T4D012 02-Contactors-02-January-2018_EN.pdf
6 Mbytes
PDF CATALOGUE LOVATO EN
99 Mbytes
