LOVATO ELECTRICIndustrial Contactors and Accessories - LOVATO ELECTRICBF2600D012 LOVATO THREE-POLE CONTACTOR, IEC OPERATING CURRENT IE (AC3) 26A, DC COIL, 12VDC

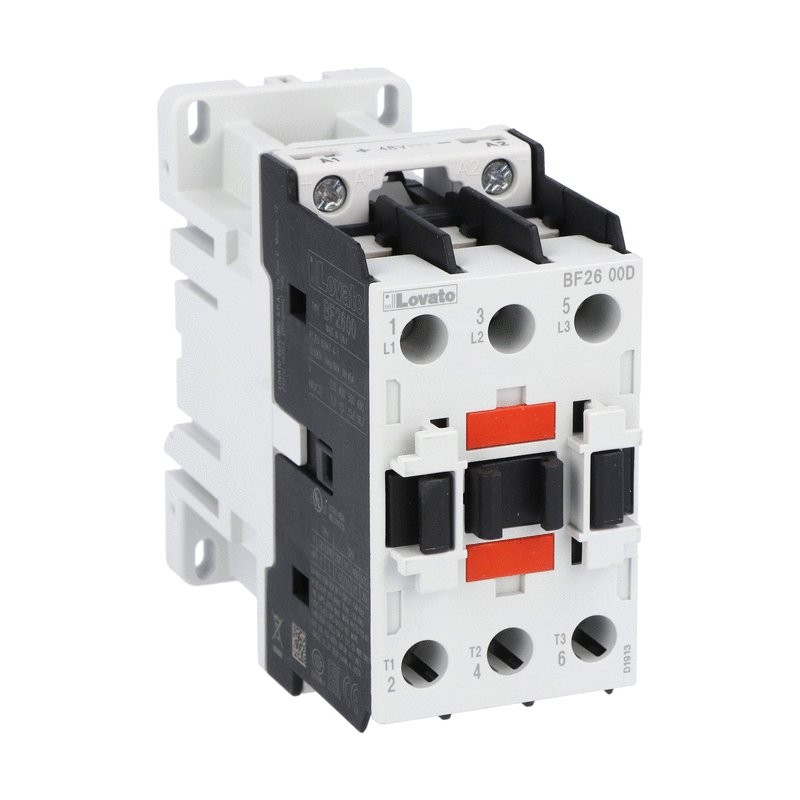

LOVATO ELECTRIC BF2600D012 BF2600D012 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

BF2600D012 LOVATO THREE-POLE CONTACTOR, IEC OPERATING CURRENT IE (AC3) 26A, DC COIL, 12VDC

Reference: BF2600D012

Manufacturer: LOVATO ELECTRIC

Description:

THREE-POLE CONTACTOR, IEC OPERATING CURRENT IE (AC3) = 26A, DC COIL, 12VDC
3P CONTACTOR 26A AC3 12VDC
Three-pole contactor, IEC operating current Ie (AC3) = 26A, DC coil, 12VDC

Categories:

  • Low-voltage industrial components > Power contactor, AC switching
  • LOVATO ELECTRIC > Industrial Contactors and Accessories - LOVATO ELECTRIC

Brand new product in its original packaging covered by the warranties and certifications provided by LOVATO ELECTRIC

  • More Info
  • ETIM
  • PDF
  • Reviews
Guarantee, repair and return.

Unit Price: 103,18 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 2 weeks.

  • These delivery times are an estimate any may vary when the item order has been processed.

MORE INFO

BF2600D012

Three-pole contactor, IEC operating current Ie (AC3) = 26A, DC coil, 12VDC

Technical specifications

Type of product:
Contactors
Number of poles:
3
Type of coil:
DC coil
Rated coil voltage [V]:
12
IEC operating current Ith (AC1) [A]:
45
IEC operating current and power Ie (AC3) 400V [A/Kw]:
26A / 13Kw
UL/CSA horsepower ratings 480V [HP]:
15
Type of mounting:
Screw / DIN rail 35mm
Order codeBF2600D012
Weight [g]560
Qty. per package1
Multiple qty. of packs per order1
Package dimensions [mm]093X048X110
Volume [cm³]491.04
Bar code [EAN13]8013975166536
HS Code85365080

165.35 £

ETIM for BF2600D012 Low-voltage industrial controls and switchgear (EC000066)

Feature nameVoltage type for actuating (EF008242)
Feature valueDC
Feature nameType of electrical connection of main circuit (EF006819)
Feature valueScrew connection
Feature nameRated control supply voltage DC (EF003980)
Feature value12 V
Feature nameModular version (EF001126)
Feature valueNo
Feature nameRated operation current Ie at AC-4, 400 V (EF008495)
Feature value11.5 A
Feature nameRated operation current Ie at AC-1, 400 V (EF001393)
Feature value45 A
Feature nameRated operation current Ie at AC-3, 400 V (EF001392)
Feature value26 A
Feature nameNumber of auxiliary contacts as normally closed contact (EF001377)
Feature value0
Feature nameNumber of auxiliary contacts as normally open contact (EF001376)
Feature value0
Feature nameNumber of normally closed contacts as main contact (EF001375)
Feature value0
Feature nameNumber of normally open contacts as main contact (EF001374)
Feature value3
Feature nameRated operation power at AC-3, 400 V (EF001364)
Feature value13 kW

DATASHEET - PDF

Title
Size
Type
BF2600D012 BF2600D012 02-Contactors-02-January-2018_EN.pdf
6 Mbytes
PDF CATALOGUE LOVATO EN
99 Mbytes
