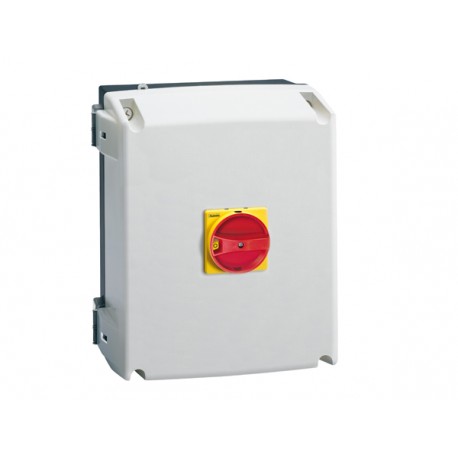

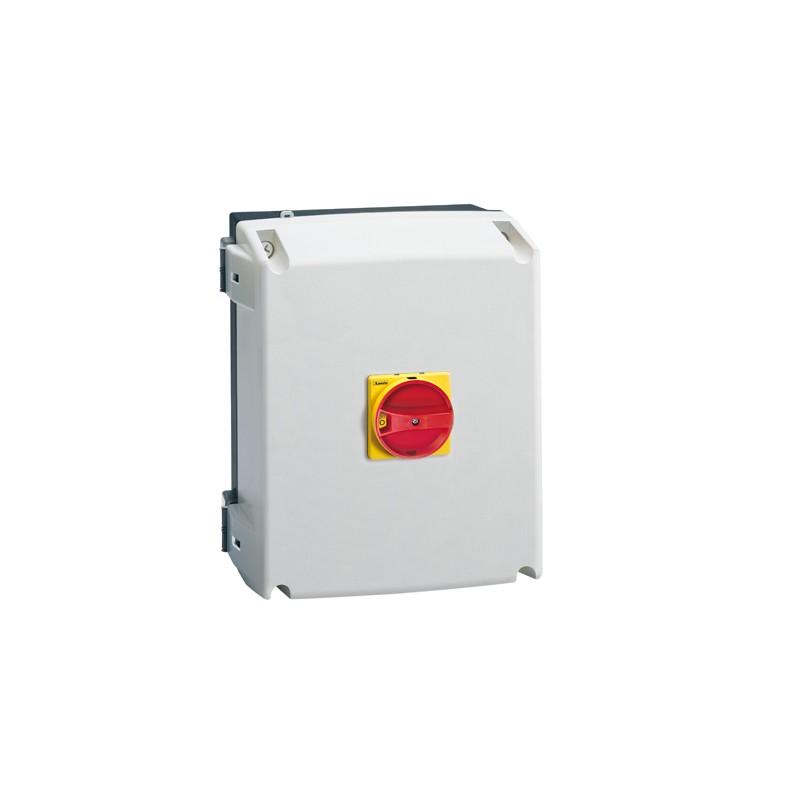

GAZ100UL LOVATO UL/CSA TYPE 4/4X NON-METALLIC ENCLOSUED SWITCH DISCONNECTOR, THREE POLE. WITH ROTATING RED/Y..

Reference: GAZ100UL

Manufacturer: LOVATO ELECTRIC

Description:

UL/CSA TYPE 4/4X NON-METALLIC ENCLOSUED SWITCH DISCONNECTOR, THREE POLE. WITH ROTATING RED/YELLOW HANDLE, 100A
3P SWITCH 100A-ENCLOS-R/Y HAND.PADLOCK
UL/CSA type 4/4X non-metallic enclosured switch disconnector, three-pole. With rotating red/yellow handle, 100A. Enclosure dimensions: 220x280x170mm/8.7x11x6.7''

Categories:

  • Low-voltage industrial components > Switch disconnector
  • LOVATO ELECTRIC > Switch disconnectors - LOVATO ELECTRIC

Brand new product in its original packaging covered by the warranties and certifications provided by LOVATO ELECTRIC

  • More Info
  • ETIM
  • PDF
  • Reviews
Guarantee, repair and return.

* This article may be obsolete. Ask for a quotation and we will check if there are any units available. If not, one of our technicians will look for an alternative solution.

Ask for a quotation and we will check if there are any units available. If not, one of our technicians will look for an alternative solution.

  • These delivery times are an estimate any may vary when the item order has been processed.

MORE INFO

GAZ100UL

UL/CSA type 4/4X non-metallic enclosured switch disconnector, three-pole. With rotating red/yellow handle, 100A. Enclosure dimensions: 220x280x170mm/8.7x11x6.7''

Technical specifications

Type of product:
Switch disconnectors
Number of poles:
3
Type of enclosure:
Plastic enclosure - Red/Yellow handle
Type of operating voltage:
AC
IEC Conventional free air thermal current Ith [A]:
100
Type of installation:
Enclosed
Order codeGAZ100UL
Weight [g]2092
Qty. per package1
Multiple qty. of packs per order1
Package dimensions [mm]295X240X225
Volume [cm³]15930
Bar code [EAN13]8013975181669
HS Code85365080

ETIM for GAZ100UL Low-voltage industrial controls and switchgear (EC000216)

Feature nameDegree of protection (NEMA) (EF011959)
Feature value4X
Feature nameDevice construction (EF008240)
Feature valueComplete device in housing
Feature nameColour control element (EF007167)
Feature valueRed
Feature nameType of control element (EF006976)
Feature valueLong turning handle
Feature nameType of electrical connection of main circuit (EF006819)
Feature valueFrame clamp
Feature nameDegree of protection (IP), front side (EF003118)
Feature valueIP65
Feature nameRated operating voltage (EF001435)
Feature value400 V
Feature nameVersion as reversing switch (EF009408)
Feature valueNo
Feature nameVoltage release optional (EF007491)
Feature valueNo
Feature nameMotor drive optional (EF007386)
Feature valueNo
Feature nameSuitable for distribution board installation (EF007262)
Feature valueNo
Feature nameSuitable for front mounting 4-hole (EF007247)
Feature valueNo
Feature nameVersion as maintenance-/service switch (EF006986)
Feature valueYes
Feature nameVersion as safety switch (EF006985)
Feature valueNo
Feature nameVersion as main switch (EF006981)
Feature valueYes
Feature nameVersion as emergency stop installation (EF006959)
Feature valueYes
Feature nameMotor drive integrated (EF006697)
Feature valueNo
Feature nameInterlockable (EF006281)
Feature valueYes
Feature nameRated permanent current at AC-23, 400 V (EF011777)
Feature value100 A
Feature nameRated permanent current at AC-21, 400 V (EF009165)
Feature value100 A
Feature nameMax. rated operation voltage Ue AC (EF007355)
Feature value690 V
Feature nameRated operation power at AC-23, 400 V (EF007027)
Feature value55 kW
Feature nameNumber of auxiliary contacts as change-over contact (EF003531)
Feature value0
Feature nameConditioned rated short-circuit current Iq (EF001444)
Feature value50 kA
Feature nameNumber of poles (EF001391)
Feature value3
Feature nameNumber of auxiliary contacts as normally closed contact (EF001377)
Feature value0
Feature nameNumber of auxiliary contacts as normally open contact (EF001376)
Feature value0
