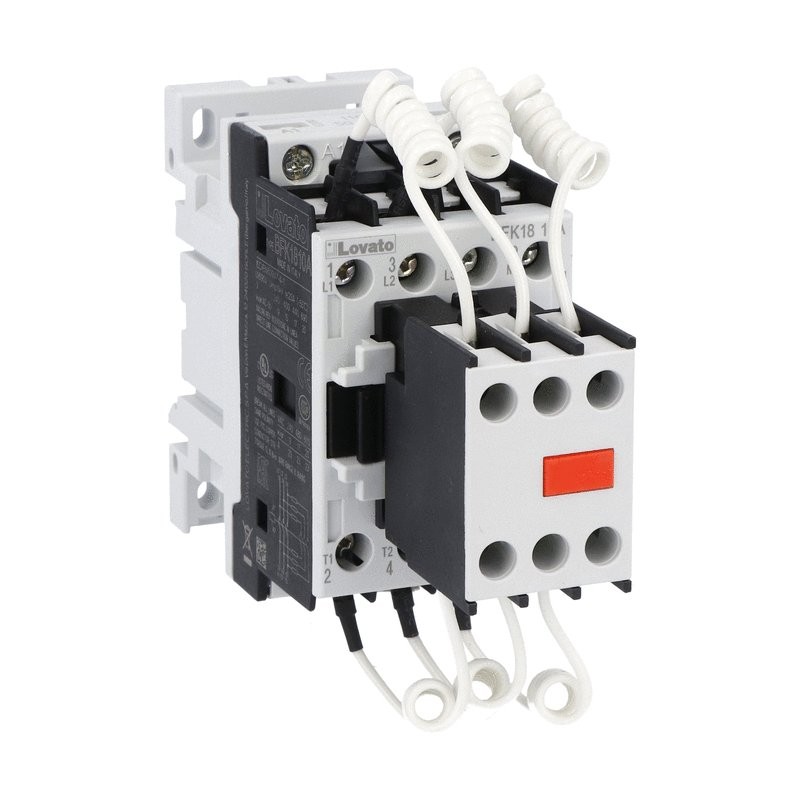

LOVATO ELECTRIC BFK1810A02460 BFK1810A02460 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

BFK1810A02460 LOVATO CONTACTOR FOR POWER FACTOR CORRECTION WITH AC CONTROL CIRCUIT, BFK TYPE (INCLUDING LIMI..

Reference: BFK1810A02460

Manufacturer: LOVATO ELECTRIC

Description:

CONTACTOR FOR POWER FACTOR CORRECTION WITH AC CONTROL CIRCUIT, BFK TYPE (INCLUDING LIMITING RESISTORS), MAXIMUM IEC OPERATIONAL POWER 400V = 15KVAR, 24VAC 60HZ
3P CONTACTOR 15KVAR 24V 60HZ
Contactor for power factor correction with AC control circuit, including limiting resistors, maximum IEC operational power 400V = 15kvar, coil 24VAC 60Hz

Categories:

  • Low-voltage industrial components > Capacitor contactor
  • LOVATO ELECTRIC > Industrial Contactors and Accessories - LOVATO ELECTRIC

Brand new product in its original packaging covered by the warranties and certifications provided by LOVATO ELECTRIC

  • More Info
  • ETIM
  • PDF
  • Reviews
Guarantee, repair and return.

* This article may be obsolete. Ask for a quotation and we will check if there are any units available. If not, one of our technicians will look for an alternative solution.

Ask for a quotation and we will check if there are any units available. If not, one of our technicians will look for an alternative solution.

  • These delivery times are an estimate any may vary when the item order has been processed.

MORE INFO

BFK1810A02460

Contactor for power factor correction with AC control circuit, including limiting resistors, maximum IEC operational power 400V = 15kvar, coil 24VAC 60Hz

Technical specifications

Type of product:
Contactors for power factor correction with AC control circuit
Number of poles:
3
Type of coil:
AC coil 60Hz
Rated coil voltage [V]:
24
IEC operational power 400V [kvar]:
15
Type of built-in auxiliary contacts:
1NO
Type of mounting:
Screw / DIN rail 35mm
Order codeBFK1810A02460
Weight [g]460
Qty. per package10
Multiple qty. of packs per order10
Package dimensions [mm]265X265X135
Volume [cm³]948.038
Bar code [EAN13]8013975163306
HS Code85365080

87.53 £

ETIM for BFK1810A02460 Low-voltage industrial controls and switchgear (EC001079)

Feature nameVoltage type for actuating (EF008242)
Feature valueAC
Feature nameType of electrical connection of main circuit (EF006819)
Feature valueScrew connection
Feature nameRated control supply voltage AC 60 Hz (EF003979)
Feature value24 V
Feature nameRated reactive power at 400 V, 50 Hz (EF007044)
Feature value15 kvar
Feature nameNumber of auxiliary contacts as normally closed contact (EF001377)
Feature value0
Feature nameNumber of auxiliary contacts as normally open contact (EF001376)
Feature value0
Feature nameNumber of normally closed contacts as main contact (EF001375)
Feature value0
Feature nameNumber of normally open contacts as main contact (EF001374)
Feature value3

DATASHEET - PDF

Title
Size
Type
BFK1810A02460 BFK1810A02460 02-Contactors-02-January-2018_EN.pdf
6 Mbytes
PDF CATALOGUE LOVATO EN
99 Mbytes
