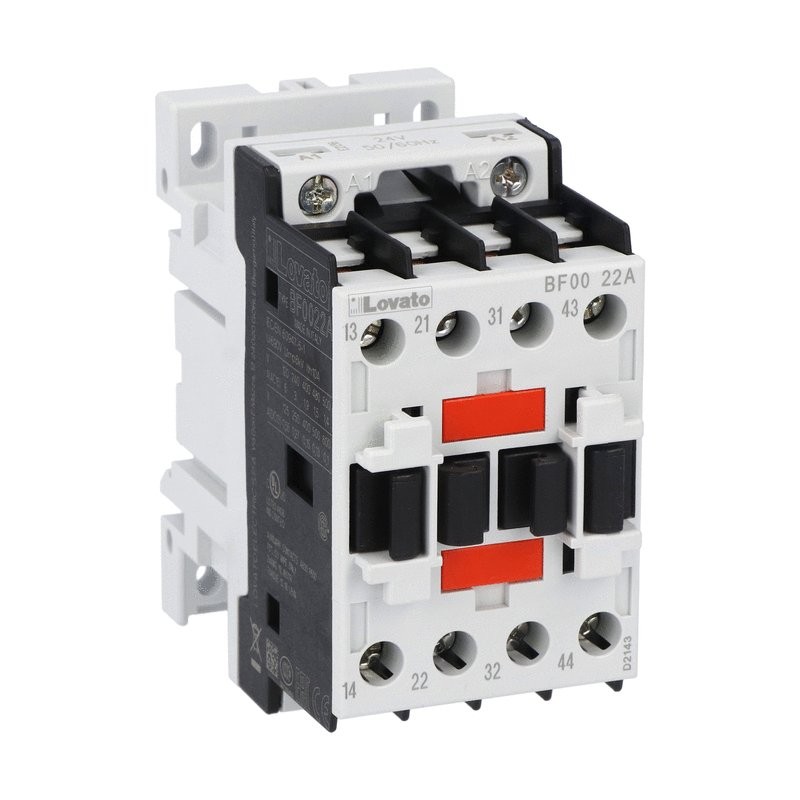

BF0022A22060 LOVATO CONTROL RELAY WITH CONTROL CIRCUIT: AC AND DC, BF00 TYPE, AC COIL 60HZ, 220VAC, 2NO AND ..

Reference: BF0022A22060

Manufacturer: LOVATO ELECTRIC

Description:

CONTROL RELAY WITH CONTROL CIRCUIT: AC AND DC, BF00 TYPE, AC COIL 60HZ, 220VAC, 2NO AND 2NC
AUXILIARY CONTACTOR 2NO+2NC 220/60
Control relay with AC coil 60Hz, 220VAC, 2NO and 2NC

Categories:

  • Low-voltage industrial components > Contactor relay
  • LOVATO ELECTRIC > Industrial Contactors and Accessories - LOVATO ELECTRIC

Brand new product in its original packaging covered by the warranties and certifications provided by LOVATO ELECTRIC

  • More Info
  • ETIM
  • PDF
  • Reviews
Guarantee, repair and return.

* This article may be obsolete. Ask for a quotation and we will check if there are any units available. If not, one of our technicians will look for an alternative solution.

Ask for a quotation and we will check if there are any units available. If not, one of our technicians will look for an alternative solution.

  • These delivery times are an estimate any may vary when the item order has been processed.

MORE INFO

BF0022A22060

Control relay with AC coil 60Hz, 220VAC, 2NO and 2NC

Technical specifications

Type of product:
Control relays with AC and DC control circuit
Number of poles:
4
Type of coil:
AC coil 60Hz
Rated coil voltage [V]:
220
Type of built-in auxiliary contacts:
2NO+2NC
Type of mounting:
Screw / DIN rail 35mm
Order codeBF0022A22060
Weight [g]350
Qty. per package1
Multiple qty. of packs per order1
Package dimensions [mm]090X047X086
Volume [cm³]363.78
Bar code [EAN13]8013975162859
HS Code85365080

52.79 £

ETIM for BF0022A22060 Low-voltage industrial controls and switchgear (EC000196)

Feature nameVoltage type for actuating (EF008242)
Feature valueAC
Feature nameConnection type auxiliary circuit (EF006820)
Feature valueScrew connection
Feature nameMounting method (EF000003)
Feature valueDIN-rail/screw
Feature nameRated control supply voltage AC 60 Hz (EF003979)
Feature value220 V
Feature nameWith LED indication (EF005950)
Feature valueNo
Feature nameSuitable for manual operation (EF002978)
Feature valueNo
Feature nameInterface (EF000594)
Feature valueNo
Feature nameNumber of auxiliary contacts as normally open contact, leading (EF007282)
Feature value0
Feature nameNumber of auxiliary contacts as normally closed contact, delayed switching (EF007281)
Feature value0
Feature nameNumber of auxiliary contacts as change-over contact (EF003531)
Feature value0
Feature nameRated operation current Ie, 400 V (EF001378)
Feature value10 A
Feature nameNumber of auxiliary contacts as normally closed contact (EF001377)
Feature value2
Feature nameNumber of auxiliary contacts as normally open contact (EF001376)
Feature value2
