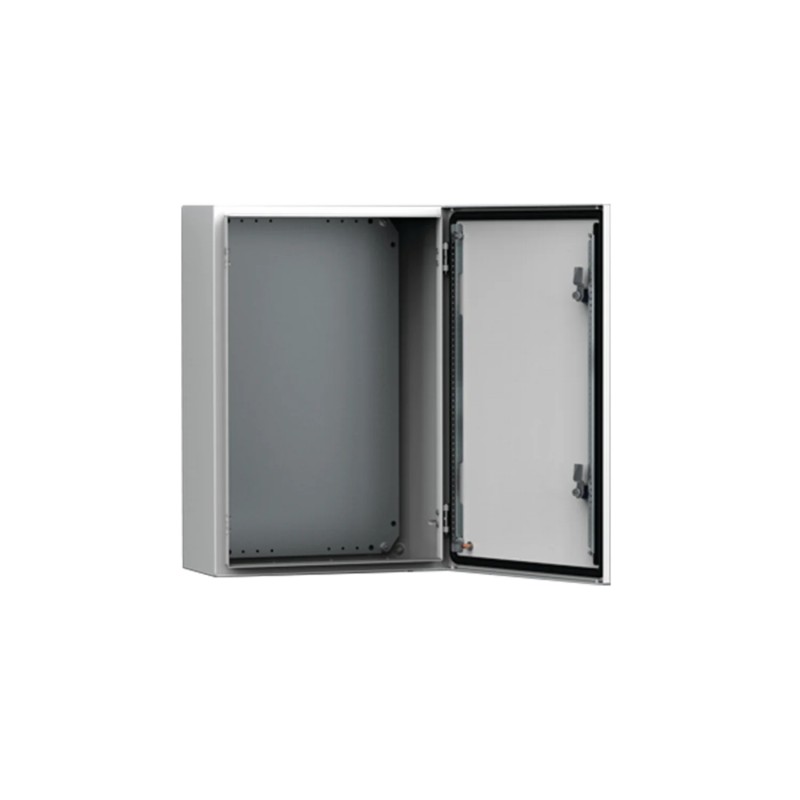

MAS0605021R5 ELDON Настенный, 600x500x210
MAS0605021R5
ELDON
Настенный, 600x500x210
Фреска, 600x500x210, компактный, 1-дверный, с МП, слабая сталь, класс защиты IP66
Настенные шкафы, 600x500x210, Компакт. корпус, 1-дверный, с MP, низкоугл.сталь, IP66
Электрические шкафы и боксы > Корпус/распределительный шкаф (пустой)
Стальные монтажные шкафы
Новый продукт в оригинальной упаковке со всеми гарантиями и сертификатами ELDON
обычно покупают вместе
▲Best sellers
▲Описание
▲Features
- Body: Folded and seam welded. Four 8.5 mm diameter holes for wall fixing, pressed out in 20.4 mm diameter × 2 mm depressions, to allow air circulation around the rear part of the enclosure.
- Gland Plate Opening: Situated at the far rear of the enclosure, to make cabling onto the mounting plate easier.
- Protection: Complies with IP 66 TYPE 4, 12 IK 10. For outdoor installation, the use of a rain Hood, ARF, and 100% polyester paint coating plus corrosion protection primer is recommended. Resistance to corrosion must be taken into consideration for outdoor and indoor applications.
- Mounting plate: The mounting plate is marked vertically at 10 mm intervals, for easy horizontal positioning of equipment. On the top and bottom there are holes to facilitate cable fixing. Fixed onto M8 press welded studs to the rear of the enclosure. All sides, from 800 mm and above, are strengthened by folded edges. By using the AMG accessory, the mounting plate position can be adjusted to any depth.
- Material: Body: 1.2 mm mild steel for enclosures with a depth of 155 mm / 1.4 mm for enclosures with a depth of 210 or 260 mm / 1.5 mm for enclosures with a depth of 300 or 400 mm, or if a height or width is 1000 mm or greater. Gland plate: 1.4 mm mild steel. Door: 1.2 mm mild steel / 1.5 mm for enclosures with a height or width of 500 mm or greater / 2 mm for enclosures with a height or width of 800 mm or greater. Mounting plate: 2 mm galvanized steel.
- Lock: nVent HOFFMAN customized double-bit 3 mm lock, with 90° movement and anti-vibration mechanism. Two locks for 600 mm high to 800 mm high enclosures. Espagnolette three point locking for 1000 mm high enclosures and above. Other inserts are available as an accessory.
- Finish: RAL 7035 structured powder coating.
- Door: Surface mounted with 130° opening. Concealed removable hinges with captive pin. Hinges can be mounted to allow left or right hand opening. Inner M6 welded studs to mount door profiles MMDP, see delivery. Sealing is ensured by an injected one piece polyurethane gasket.
- Delivery: Enclosure with door and mounting plate (not included for item numbers ending with PER5). For height 600 mm and above, two MMDP door mounting profiles. Gland plate(s) with gasket(s), plastic double-bit 3 mm key, and mounting accessories. Metallic key, for height 1000 mm and above. Earthing facilities.
| Atributo del producto | Valor |
|---|---|
| Высота мм | 600 mm |
| Ширина мм | 500 mm |
| Глубина мм | 210 mm |
| Mounting Plate Included | Yes |
| Panel Size | 570 x 450 mm |
| Максимальная установочная глубина | 192 mm |
| Latch Quantity | 2 |
| Material | Mild Steel |
| Finish | Powder Coated |
| Color | Light Gray |
| Color Code | RAL 7035 |
| Body Thickness | 1.5 mm |
| Door Thickness | 1.5 mm |
| Gland Plate Opening Width | 410 mm |
| Gland Plate Opening Depth | 96 mm |
| Gland Plate Type | 3 |
| Gland Plate Quantity | 1 |
| Weight | 17.1 kg |
| UPC | 783510488451 |
| EAN | 8713574129139 |
| Standard Packaging Quantity | 1.0000 |
| Packing Quantity | 1.0000 |
| Характеристика | Значение |
|---|---|
| Width (EF000008) | 500.00 mm |
| Height (EF000040) | 600.00 mm |
| Depth (EF000049) | 210.00 mm |
| Material (EF002169) | Steel |
| Material quality (EF001257) | Other |
| Surface finishing (EF006569) | Powder coated |
| Colour (EF000007) | Grey |
| RAL-number (EF000116) | 7035.00 |
| With mounting plate (EF000118) | Yes |
| Mounting plate depth-adjustable (EF006054) | No |
| Suitable for wall built-in (EF007536) | No |
| Pole fastening (EF009582) | No |
| Number of doors (EF000122) | 1.00 |
| Number of locks (EF000123) | 2.00 |
| Suitable for metrical mounting (EF005823) | No |
| Pitched roof (EF009278) | No |
| EMC-version (EF001062) | No |
| With glazed door (EF001089) | No |
| With ventilation door (EF006279) | No |
| With rear door (EF007381) | No |
| Impact strength (EF004293) | IK10 |
| Degree of protection (IP) (EF005474) | IP66 |
| Degree of protection (NEMA) (EF011959) | 13 |
Datasheet - PDF
▲| Заглавие: | Размер: | Тип: |
|---|---|---|
| PDF CATALOGUE NVENT EN.pdf | 140 Mbytes |
|
| MAS0605021R5 MAS0605021R5 ES_MAS0605021R5.pdf | 353 Kbytes |
|
