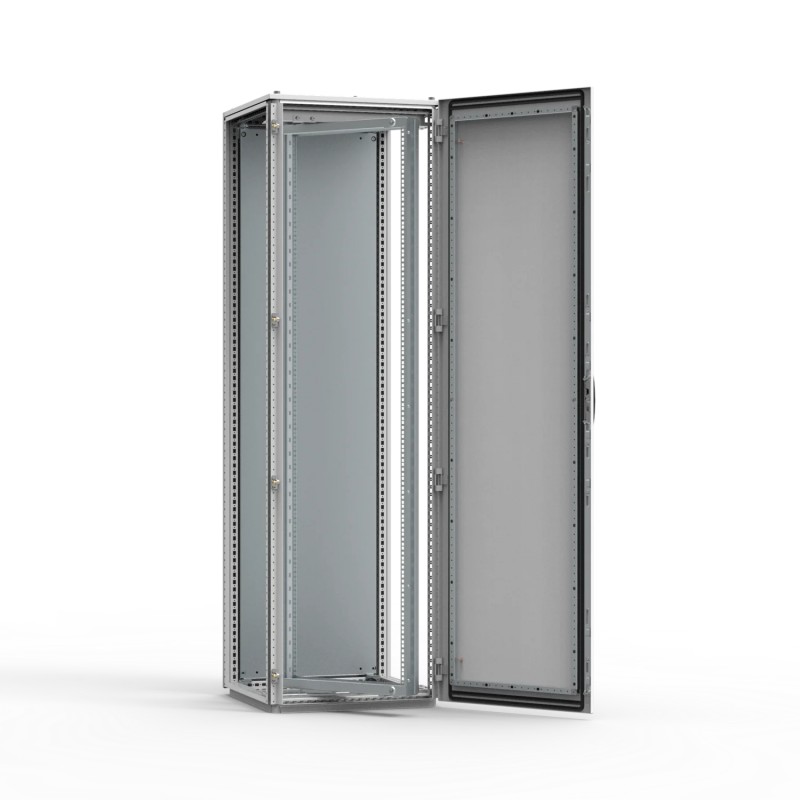

ESFC406 nVent HOFFMAN Swing frame, 2000 ESFC406

Description:

Full height swing frame for 19” components allowing left and right hand opening. Can be used in steel, combinable and compact enclosures. Hinges designed to give extra build-in depth. Adjustable top hinge for square mounting of the swing frame. Rigid W-shaped frame profile for heavy equipment. Zinc plated 19" vertical profiles for direct earthing of the mounted components. Standard equipped with 130° hinges (180° hinges not applicable for 600 mm wide enclosures). Can also be mounted on the side of 600 mm deep floor standing enclosures. For steel, combinable enclosures use transversal support bars ESFB in combination with VBD if required. Adjustable in depth by steps of 12.5 mm.

Maximum load:

1800N, supplied with a self positioning device.

Lock:

Two 3 mm double-bit locks.

Material:

19" vertical profiles 2 mm zinc plated steel. Frame: vertical profiles 2 mm and horizontal profiles 3 mm.

Pack quantity:

1 swing frame with hinges.

Mounting requirements:

ESFC for 600 mm, 800 mm, 1000 mm, 1200 mm wide steel, combinable enclosures. Add ESFB for mounting in a steel, combinable enclosure.

Feature:

Full height swing frame, for floor standing enclosures.

Advantage:

Additional surface for the installation of 19" equipment, within a hinged frame. The frame can be mounted within enclosures from 600 mm in width.

Benefit:

The frame allows customers to install equipment and components into floor standing enclosures efficiently by maximising the installation space available. Access can be gained to the front and rear of the equipment installed in the frame, as well as to the components installed behind on the mounting plate, when the frame is opened.

Comment:

The transversal support bars, ESFB, must be mounted in combination with the full height swing frame. If there is not enough useful depth for the equipment installed on the 19" swing frame, then the width of the enclosure must be increased to allow the swing frame to be opened. If the empty space surrounding the swing frame needs to be covered then the centred swing frame, ESFM, or the side mounted swing frame, ESFS, can be mounted.
