MSHSI600
ELDON
2
доступный Корабль на Cегодня
СОП. Бар входящие, 600, 1 пара. Упаковка из 2 шт.

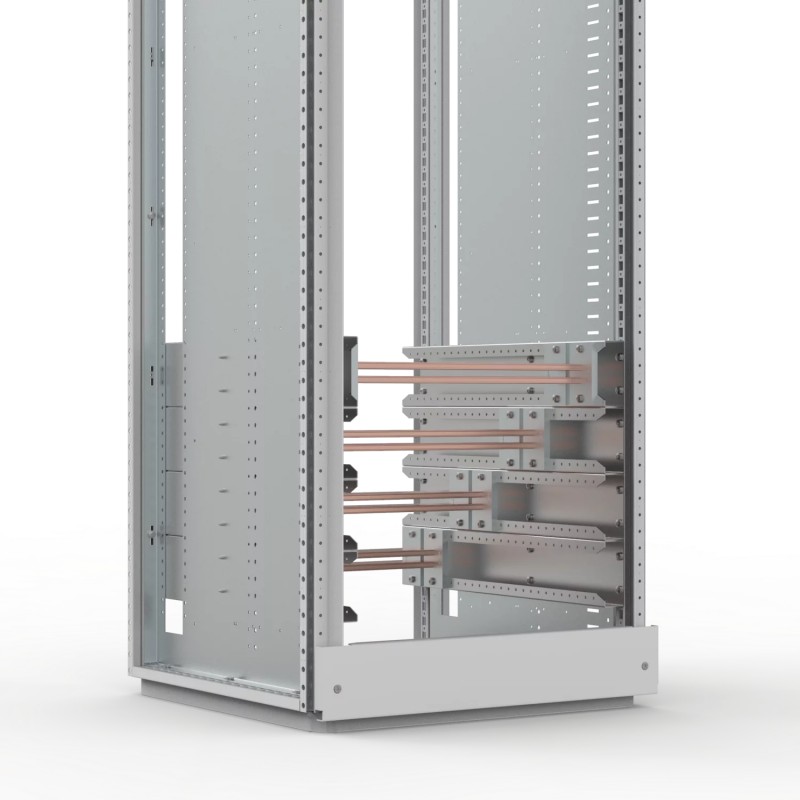

This horizontal support, MSHSI, enables mounting of the busbar support, MSHS, in a horizontal position. Horizontal copper connections for incoming or outgoing cables can then be made easily.
Силовые и распределительные шкафы
* Новый продукт в оригинальной упаковке со всеми гарантиями и сертификатами ELDON
Спасибо за Ваш интерес к нашим продуктам. Надеемся, что предложенные сроки окажутся приемлемыми для Вас.
Во время оформления заказа можете выбрать наиболее приемлимый для Вас вид доставки: Aéreo Express 24hrs, Terrestre Standard 48/72hrs, и т.д.
Description: | Support to be mounted horizontally in the enclosure. Is mounted to the internal side panels, MSPS, and the enclosure frame. Makes it possible to mount the MSHS busbar support in depth in a horizontal position. Ideal when there are many incoming/outgoing cables and need a horizontal connection. |
Material: | 1.5 mm galvanized steel. |
Delivery: | 2 pcs. of Horizontal support. |
Feature: | The support makes it possible to mount the MSHS busbar support in depth in a horizontal "staircase" solution and in that way create an easy connection for cables. |
Advantage: | The support is suitable for creating an infeed for incoming/outgoing cables. By using the nVent HOFFMAN standard support, MSHS, solutions with two bars up to 120 x 10 mm per phase can be created. |
Benefit: | A flexible and reliable solution. The installation can be done efficiently, which means the labour time required is reduced. |
Comment: | A busbar holder, MSHS, is required to mount the copper busbars. (Copper busbars are not provided by nVent HOFFMAN). |
Заглавие: | Размер: | Тип: |
---|---|---|
MSHSI600 MSHSI600 ES_MSHSI600.pdf | 105 Kbytes |
