MPA04R
ELDON
4
Задние кронштейны МП. Упаковка из 4 шт.

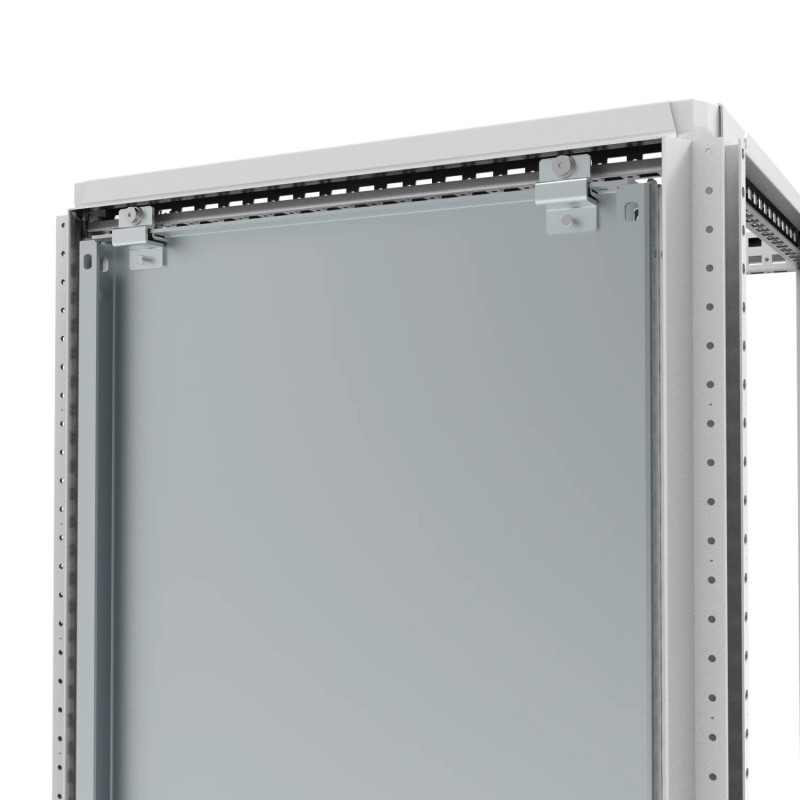

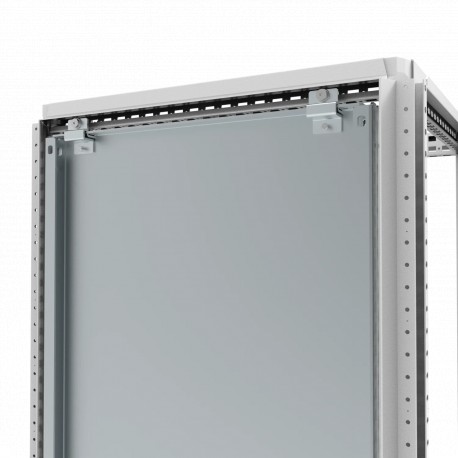

This mounting plate fixation kit allows for mounting of a mounting plate from the rear. It can be positioned flush with the enclosure frame or set back behind the enclosure frame with an extra of +20 mm, increasing the useful depth of the enclosure.
Стальные напольные корпуса
* Новый продукт в оригинальной упаковке со всеми гарантиями и сертификатами ELDON
Спасибо за Ваш интерес к нашим продуктам. Надеемся, что предложенные сроки окажутся приемлемыми для Вас.
Во время оформления заказа можете выбрать наиболее приемлимый для Вас вид доставки: Aéreo Express 24hrs, Terrestre Standard 48/72hrs, и т.д.
Description: | To fix mounting plates to the enclosure from rear. The kit includes brackets for fixing the mounting plate flush with the enclosure frame or set back behind the enclosure frame, adding +20mm of useful depth for mounting components. These brackets are needed when rear fixation is required or when the enclosure is ordered without the mounting plate (PE) as an alternative to MPA06/MPA04. Unmounting from both the front and rear is possible. |
Material: | 3 mm zinc plated steel. |
Pack quantity: | 2 top brackets, 2 bottom brackets, 2 brackets for flushing the mounting plate with the frame and 2 brackets for setting the mounting plate back behind the frame with mounting accessories. |
Feature: | Mounting plate fixation kit including brackets that can be mounted in different depths. |
Advantage: | The brackets allows for different positions of the mounting plate by moving it forward or backwards. |
Benefit: | The mounting plate can be positioned to support any configuration such as back-to-back mounting plate, or aligning the components with the inner door. |
Comment: | These brackets should only be purchased if the mounting plate is purchased as an accessory. For depth adjustment of a mounting plate that is delivered with an enclosure, select MPD. |
