ELDONSteel Floor Standing EnclosuresMPA04R ELDON MP rear supports pack of 4
ELDON MPA04R MPA04R - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

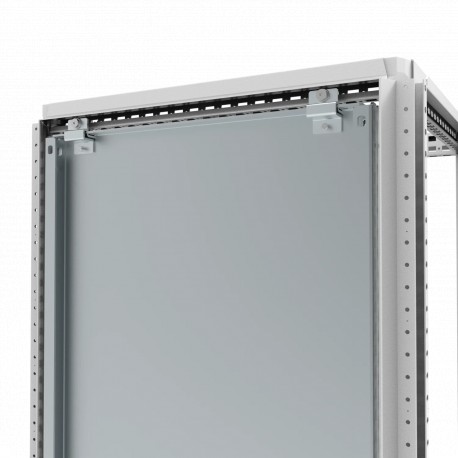

MPA04R ELDON MP rear supports pack of 4

Reference: MPA04R

Manufacturer: ELDON

Description:

MP rear supports pack of 4
Rear brackets MP. Pack of 4 units.
Mounting Plate Brackets For Rear Mounting, MPA-R, 50x50x38mm, Zinc Plated, Steel

Categories:

  • Cabinet enclosures > Mounting accessories (switchgear cabinet)
  • ELDON > Steel Floor Standing Enclosures

Brand new product in its original packaging covered by the warranties and certifications provided by ELDON

  • More Info
  • ETIM
  • PDF
  • Reviews
Guarantee, repair and return.

Unit Price: 55,01 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 10 days.

  • These delivery times are an estimate any may vary when the item order has been processed.

MORE INFO

Features

  • Description: To fix mounting plates to the enclosure from rear. The kit includes brackets for fixing the mounting plate flush with the enclosure frame or set back behind the enclosure frame, adding +20mm of useful depth for mounting components. These brackets are needed when rear fixation is required or when the enclosure is ordered without the mounting plate (PE) as an alternative to MPA06/MPA04. Unmounting from both the front and rear is possible.
  • Material: 3 mm zinc plated steel.
  • Pack quantity: 2 top brackets, 2 bottom brackets, 2 brackets for flushing the mounting plate with the frame and 2 brackets for setting the mounting plate back behind the frame with mounting accessories.
Atributo del producto Valor
Height50mm
Width50mm
Depth38mm
MaterialMild Steel
FinishZinc Plated
Thickness3mm
Package Quantity2
Enclosure MaterialMild Steel
UPC783510509583
EAN8713574234130
Standard Packaging Quantity1
Packing Quantity4

ETIM for MPA04R Cabinets and enclosures (EC002625)

Feature nameMaterial (EF002169)
Feature valueSteel

DATASHEET - PDF

Title
Size
Type
MPA04R MPA04R EN_MPA04R.pdf
117 Kbytes
PDF CATALOGUE NVENT EN
140 Mbytes
