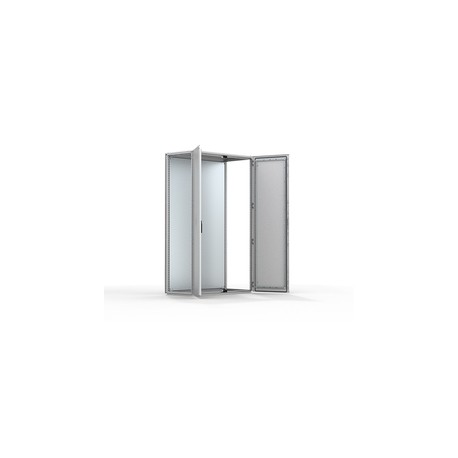

MCD18164R5 ELDON Напольный, 1800x1600x400
MCD18164R5
ELDON
Напольный, 1800x1600x400
Самонесущий, 1800x1600x400, комбинируемый, 2-дверный, с МП, слабая сталь, класс защиты IP55
Напольные шкафы, 1800x1600x400, Комбинируемый корпус, 2-дверный, с MP, низкоугл.сталь, IP55
Модульная двойная дверь, MCD, 1800x1600x400 мм, светло-серый, низкоуглеродистая сталь
Электрические шкафы и боксы > Корпус/распределительный шкаф (пустой)
Стальные напольные корпуса
Новый продукт в оригинальной упаковке со всеми гарантиями и сертификатами ELDON
Related products
▲обычно покупают вместе
▲Best sellers
▲Описание
▲Features
- Material: Frame: 1.5 mm painted steel. Doors: 2 mm painted steel. Rear, roof and side panels: 1.5 mm painted steel. Mounting plate: 3 mm galvanized steel. Bottom plates: 1 mm galvanized steel.
- Frame: Seam welded reversed open profiles with 25 mm hole pattern, according to DIN 43660. Including integrated external hole pattern.
- Doors: Mounted with four hinges. Including door frame with 25 mm hole pattern. Doors cannot be reversed. Separate doors to be ordered for left hand door locking.
- Rear panel: Fitted by M6 torx screws. Standard facilities for rear doors mounting. Split rear panels in 1600 mm wide enclosures. RD version comes with rear door instead of rear panel.
- Side panels: Supplied as an accessory.
- Roof panel: Removable.
- Lock: Espagnolette 4-point locking system in the main door and 2-point locking system in the slave door. Standard double-bit lock with 3 mm insert. Standard inserts, cylinders, lift handles and T-handles are available as accessories.
- Bottom plates: Consists of three or four (D>600) pieces.
- Mounting plate: Double folded and slides into position. Adjustable in depth by steps of 25 mm, with the MPD02 accessory. Supplied, attached on the outside of the enclosure packaging.
- Earthing: All panels are earthed through their fittings and equipped with a separate earthing stud.
- Finish: RAL 7035 structured powder coating.
- Protection: Complies with IP55 TYPE 12 IK 10.
- Mounting requirements: Standard delivery ready for combined installation. For stand-alone installation add side panels.
- Delivery: Frame with fitted doors, rear panel, roof panel, bottom plates, mounting plate and door frame (not included for PER5 version). For enclosures 2200 mm height, delivery includes two CMB profiles mounted in depth. Delivery also includes earthing bolts. Delivered on a pallet which is identical to the width of the enclosure to allow baying without removal. Packing material is recyclable.
| Atributo del producto | Valor |
|---|---|
| Mounting Plate Included | Yes |
| Mounting Plate Height | 1694 mm |
| Mounting Plate Width | 1494 mm |
| Дверь/задняя стенка | Rear panel |
| Material | Mild Steel |
| Finish | Powder Coated |
| Color | Light Gray |
| Color Code | RAL 7035 |
| Body Thickness | 1.5 mm |
| Door Thickness | 2 mm |
| Weight | 265.6 kg |
| Максимальная установочная глубина | 359 mm |
| Panel Size | 1432x310 mm |
| UPC | 783510490928 |
| EAN | 8713574130357 |
| Standard Packaging Quantity | 1.0000 |
| Packing Quantity | 1.0000 |
| Характеристика | Значение |
|---|---|
| Width (EF000008) | 1600.00 mm |
| Height (EF000040) | 1800.00 mm |
| Depth (EF000049) | 400.00 mm |
| Material (EF002169) | Steel |
| Material quality (EF001257) | Other |
| Surface finishing (EF006569) | Powder coated |
| Colour (EF000007) | Grey |
| RAL-number (EF000116) | 7035.00 |
| With mounting plate (EF000118) | Yes |
| Mounting plate depth-adjustable (EF006054) | Yes |
| Suitable for wall built-in (EF007536) | No |
| Pole fastening (EF009582) | No |
| Number of doors (EF000122) | 2.00 |
| Number of locks (EF000123) | 1.00 |
| Suitable for metrical mounting (EF005823) | No |
| Pitched roof (EF009278) | No |
| EMC-version (EF001062) | No |
| With glazed door (EF001089) | No |
| With ventilation door (EF006279) | No |
| With rear door (EF007381) | No |
| Impact strength (EF004293) | IK10 |
| Degree of protection (IP) (EF005474) | IP55 |
| Degree of protection (NEMA) (EF011959) | 13 |
Datasheet - PDF
▲| Заглавие: | Размер: | Тип: |
|---|---|---|
| PDF CATALOGUE NVENT EN.pdf | 140 Mbytes |
|
| MCD18164R5 MCD18164R5 RU_MCD18085PER5.pdf | 1 Mbytes |
|
