OIDES305205
ELDON
1
доступный Корабль на Cегодня

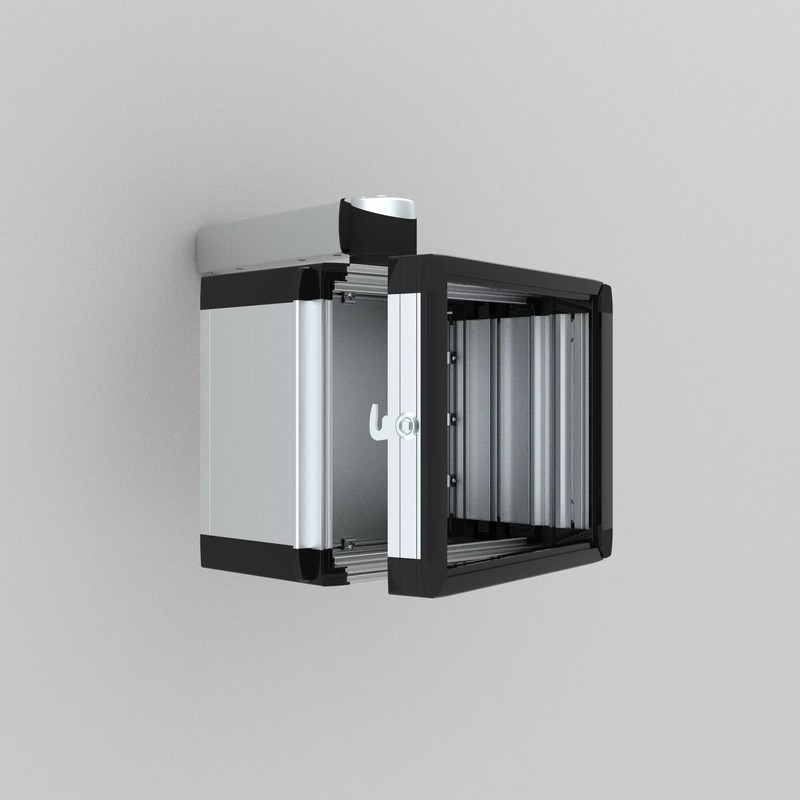

Extended HMI, 309x525x55 OIDES305205
Чми продлен, 309x525x55
The aluminium operator interface control enclosure with a hinged extension frame, OIDES, has a pre-machined hole pattern to allow for the desired fixation to a swing arm, plus a removable front plate at a IP 65 protection degree. The extension frame increases the panel depth by 55 mm. Components can be easily fitted thanks to the removable front plate, but will also be easily accessible by opening the hinged front extension frame. Side handles on the enclosure allow for easy movement of the enclosure into the desired working position. The aluminium body will dissipate more heat than a mild steel body, which may eliminate the need for additional ventilation.
Электрические шкафы и боксы > Дверь / оперативная панель распределительного шкафа
Общие Аксессуары
* Новый продукт в оригинальной упаковке со всеми гарантиями и сертификатами ELDON
Спасибо за Ваш интерес к нашим продуктам. Надеемся, что предложенные сроки окажутся приемлемыми для Вас.
Во время оформления заказа можете выбрать наиболее приемлимый для Вас вид доставки: Aéreo Express 24hrs, Terrestre Standard 48/72hrs, и т.д.
Description: | OICP panel with hinged door extension profile. It increases the OICP panel depth in 55 mm. It has grid profiles in the door extension profile sides. |
Material: | Body and door extension profile: Al Mg Si05. Rear plate: Al Mg. Corners: Al Si12. |
Protection: | Complies with IP 65. |
Finish: | Body, door extension profile and rear plate: anodised aluminium. Corners: RAL 7016. |
Pack quantity: | OICP panel with rear plate, door extension profile, external hinges, and locking system. |
Feature: | Aluminium operator interface control panel, with a pre-machined hole pattern to mount onto a swing arm system, hinged extension frame, removable aluminium front plate accessory and a IP 65 protection degree. |
Advantage: | Components can be installed easily because of the removable front panel (supplied as an accessory). Installed components are easily accessible due to the removable rear panel and hinged extension frame which also increases the panels depth by 55 mm. The enclosure's pre-machined cut-out allows the panel to be quickly mounted to the swing arm system in the field. The pre-mounted enclosure side handles allow customers to manipulate the enclosure easily when performing operations. The aluminium body will dissipate a larger amount of heat, that has been generated from the installed components. |
Benefit: | The enclosure reduces customer's labour cost and allows ergonomic use in the field, due to the pre-installed handles. The internal temperature of the control panel is kept low which may remove the requirement for ventilation. The depth extension frame allows customers to install larger components, if required. |
Comment: | The aluminium front plate (OIFP), must be ordered separately. |
Заглавие: | Размер: | Тип: |
---|---|---|
OIDES305205 OIDES305205 RU_OIDES305205.pdf | 146 Kbytes |
