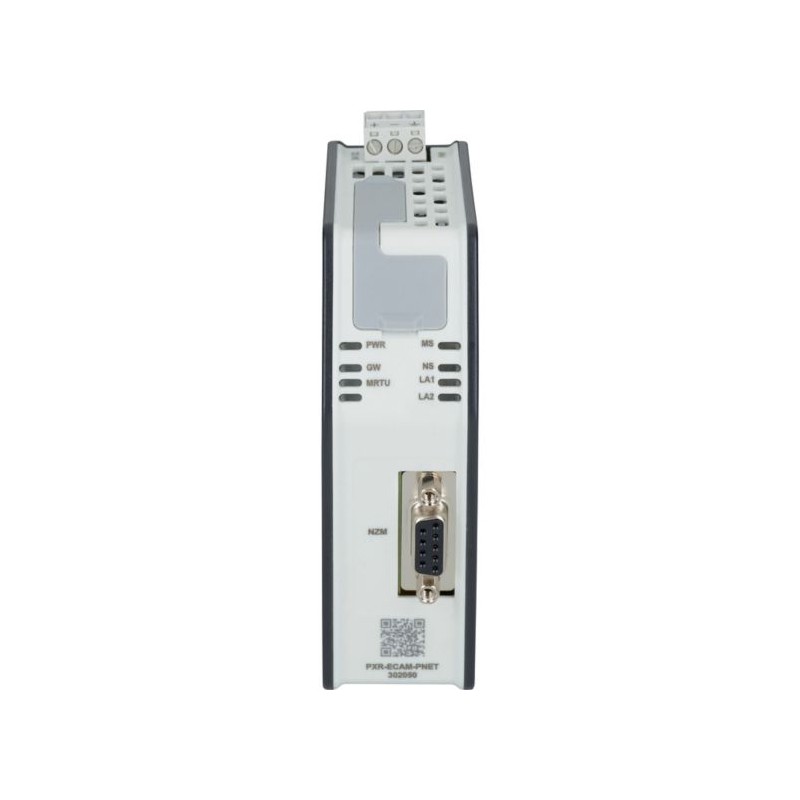

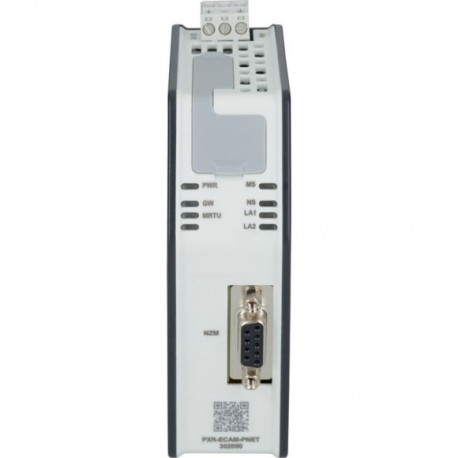

Product name
Eaton Moeller series NZM electronic accessory
Product Length/Depth
123 millimetre
Product height
101 millimetre
Product width
35 millimetre
Product weight
0.155 kilogram
Compliances
RoHS conform
IEC
Product Sub Type
Electronic accessory
Type
Communications module
Accessory/spare part type
Communications module
Communication and measuring function
Accessory
Special features
For fieldbus connection to NZM circuit breakers.The module is mounted externally near the circuit breaker.For connection to Profinet IO.Cannot be used with the PXR10 NZM-AX electronic trip.
Frame
NZM…2(3)(4)-MX(VX)(PX)(PMX)…
Used with
NZM2(3)(4)(-4)-VX(MX)(PX)(PMX)
Technical Data - Electrical
Technical Data - Communication
Fieldbus type
RJ45 Ethernet cable Cat6
Interface type (fieldbus)
Profinet IO
Technical Data - Mechanical
Connection type
Pre-wired connection (communication, NZM connection)
With bolt connection
Special features
For fieldbus connection to NZM circuit breakers.The module is mounted externally near the circuit breaker.For connection to Profinet IO.Cannot be used with the PXR10 NZM-AX electronic trip.
Technical Data - Mechanical - Terminals
Terminal capacity (stranded cable)
0.5 mm² - 2.5 mm² (1x) at supply connection (uninsulated ferrule according to DIN46224 / 1)
0.5 mm² - 2.5 mm² (1x) at supply connection (insulated ferrule according to DIN46228 / 4)
0.5 mm² - 2.5 mm² (1x)
20 - 14 AWG (1x) at supply connection
Terminal capacity (solid cable)
0.5 mm² - 2.5 mm² (1x)
Design verification as per IEC/EN 61439 - technical data
Ambient operating temperature - min
-20 °C
Ambient operating temperature - max
50 °C
Ambient storage temperature - min
-40 °C
Ambient storage temperature - max
85 °C
Design verification as per IEC/EN 61439
10.2.2 Corrosion resistance
Meets the product standard's requirements.
10.2.3.1 Verification of thermal stability of enclosures
Meets the product standard's requirements.
10.2.3.2 Verification of resistance of insulating materials to normal heat
Meets the product standard's requirements.
10.2.3.3 Resist. of insul. mat. to abnormal heat/fire by internal elect. effects
Meets the product standard's requirements.
10.2.4 Resistance to ultra-violet (UV) radiation
Meets the product standard's requirements.
10.2.5 Lifting
Does not apply, since the entire switchgear needs to be evaluated.
10.2.6 Mechanical impact
Does not apply, since the entire switchgear needs to be evaluated.
10.2.7 Inscriptions
Meets the product standard's requirements.
10.3 Degree of protection of assemblies
Does not apply, since the entire switchgear needs to be evaluated.
10.4 Clearances and creepage distances
Meets the product standard's requirements.
10.5 Protection against electric shock
Does not apply, since the entire switchgear needs to be evaluated.
10.6 Incorporation of switching devices and components
Does not apply, since the entire switchgear needs to be evaluated.
10.7 Internal electrical circuits and connections
Is the panel builder's responsibility.
10.8 Connections for external conductors
Is the panel builder's responsibility.
10.9.2 Power-frequency electric strength
Is the panel builder's responsibility.
10.9.3 Impulse withstand voltage
Is the panel builder's responsibility.
10.9.4 Testing of enclosures made of insulating material
Is the panel builder's responsibility.
10.10 Temperature rise
The panel builder is responsible for the temperature rise calculation. Eaton will provide heat dissipation data for the devices.
10.11 Short-circuit rating
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.12 Electromagnetic compatibility
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.13 Mechanical function
The device meets the requirements, provided the information in the instruction leaflet (IL) is observed.
