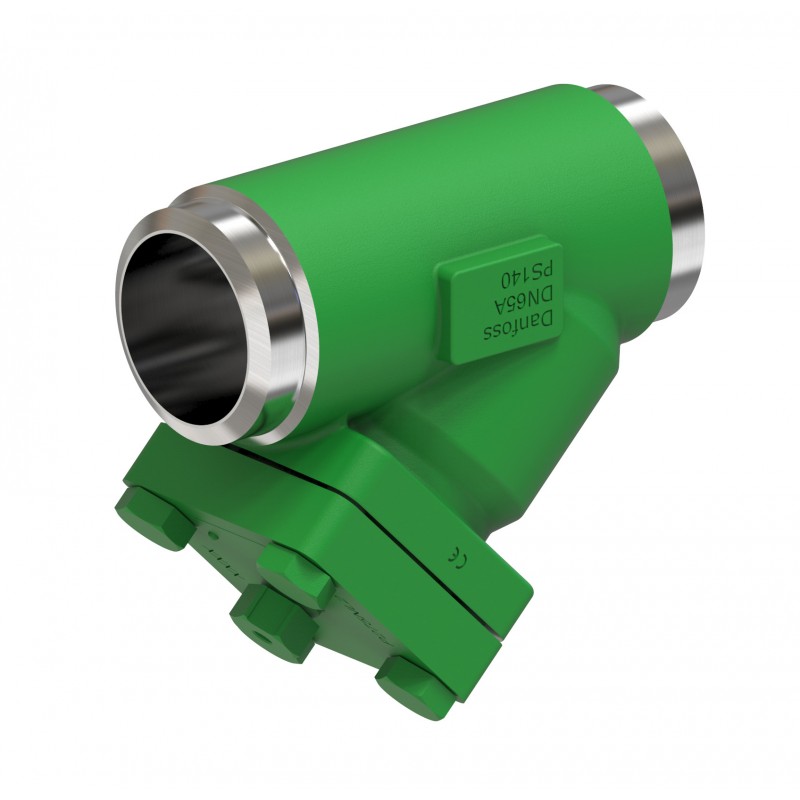

148B6848 DANFOSS REFRIGERATION Корпус фильтра FIA-140B 65 SD STR.
148B6848
DANFOSS REFRIGERATION
Корпус фильтра FIA-140B 65 SD STR.
Strainers, FIA-140B 65
Home > DANFOSS REFRIGERATION
Новый продукт в оригинальной упаковке со всеми гарантиями и сертификатами DANFOSS REFRIGERATION
Best sellers
▲Описание
▲Connection material: Steel, Inlet connection type: Brazed, Max. Working Pressure [bar]: 140.0
Product details
| Gross weight | 6.52 Kg |
| Net weight | 5.91 Kg |
| Volume | 7.259 Liter |
| EAN | 5702424590680 |
| Gross weight | 6.52 Kg |
| Net weight | 5.91 Kg |
| Volume | 7.259 Liter |
| EAN | 5702424590680 |
| Approval | CE EAC UKCA |
| Brand | SVL Flexline |
| Colour Paint | Green |
| Connection material | Steel |
| Connection standard | EN 1254-5 |
| Cv value [gal/min] 100 plain | 188.88 gal/min |
| Cv value [gal/min] 100 pleated | 247 gal/min |
| Cv value [gal/min] 38 plain | 203.41 gal/min |
| Cv value [gal/min] 38 pleated | 265.93 gal/min |
| Cv value [gal/min] 72 plain | 194.61 gal/min |
| Cv value [gal/min] 72 pleated | 254.49 gal/min |
| Direction | Straightway |
| Equipment | Cover |
| Flow direction indicator | Embossed 1-way arrow |
| Fluid Group | 2 |
| Inlet connection size [mm] | 64 mm |
| Inlet connection type | Brazed |
| Kv value [m3/h] µ150 plain | 42.9 m³/h |
| Kv value [m3/h] µ150 pleated | 56.1 m³/h |
| Kv value [m3/h] µ250 plain | 44.2 m³/h |
| Kv value [m3/h] µ250 pleated | 57.8 m³/h |
| Kv value [m3/h] µ500 plain | 46.2 m³/h |
| Kv value [m3/h] µ500 pleated | 60.4 m³/h |
| Max. Working Pressure [bar] | 140 bar |
| Max. Working Pressure [psig] | 2030 psig |
| Outlet connection size [mm] | 64 mm |
| Outlet connection type | Brazed |
| Packing format | Single pack |
| PED category | I |
| Product accessories | SVL Flexline accessories |
| Product description | Filter housing |
| Product group | Strainers |
| Product Name Description | Strainer housing |
| Quantity per packing format | 1 pc |
| Refrigerants | R744 |
| Serviceable | SVL Flexline spare parts |
| Temperature range [°C] [max] | 150 °C |
| Temperature range [°C] [min] | -40 °C |
| Temperature range [°F] [max] | 302 °F |
| Temperature range [°F] [min] | -40 °F |
| Type | FIA-140B 65 |
| Valve version | Standard version |
| Approval | CE EAC UKCA |
| Brand | SVL Flexline |
| Colour Paint | Green |
| Connection material | Steel |
| Connection standard | EN 1254-5 |
| Cv value [gal/min] 100 plain | 188.88 gal/min |
| Cv value [gal/min] 100 pleated | 247 gal/min |
| Cv value [gal/min] 38 plain | 203.41 gal/min |
| Cv value [gal/min] 38 pleated | 265.93 gal/min |
| Cv value [gal/min] 72 plain | 194.61 gal/min |
| Cv value [gal/min] 72 pleated | 254.49 gal/min |
| Direction | Straightway |
| Equipment | Cover |
| Flow direction indicator | Embossed 1-way arrow |
| Fluid Group | 2 |
| Inlet connection size [mm] | 64 mm |
| Inlet connection type | Brazed |
| Kv value [m3/h] µ150 plain | 42.9 m³/h |
| Kv value [m3/h] µ150 pleated | 56.1 m³/h |
| Kv value [m3/h] µ250 plain | 44.2 m³/h |
| Kv value [m3/h] µ250 pleated | 57.8 m³/h |
| Kv value [m3/h] µ500 plain | 46.2 m³/h |
| Kv value [m3/h] µ500 pleated | 60.4 m³/h |
| Max. Working Pressure [bar] | 140 bar |
| Max. Working Pressure [psig] | 2030 psig |
| Outlet connection size [mm] | 64 mm |
| Outlet connection type | Brazed |
| Packing format | Single pack |
| PED category | I |
| Product accessories | SVL Flexline accessories |
| Product description | Filter housing |
| Product group | Strainers |
| Product Name Description | Strainer housing |
| Quantity per packing format | 1 pc |
| Refrigerants | R744 |
| Serviceable | SVL Flexline spare parts |
| Temperature range [°C] [max] | 150 °C |
| Temperature range [°C] [min] | -40 °C |
| Temperature range [°F] [max] | 302 °F |
| Temperature range [°F] [min] | -40 °F |
| Type | FIA-140B 65 |
| Valve version | Standard version |
Datasheet - PDF
▲| Заглавие: | Размер: | Тип: |
|---|---|---|
| PDF CATALOGUE DANFOSS REFRIGERATION AND AIRCONDITIONING EN.pdf | 11 Mbytes |
|
