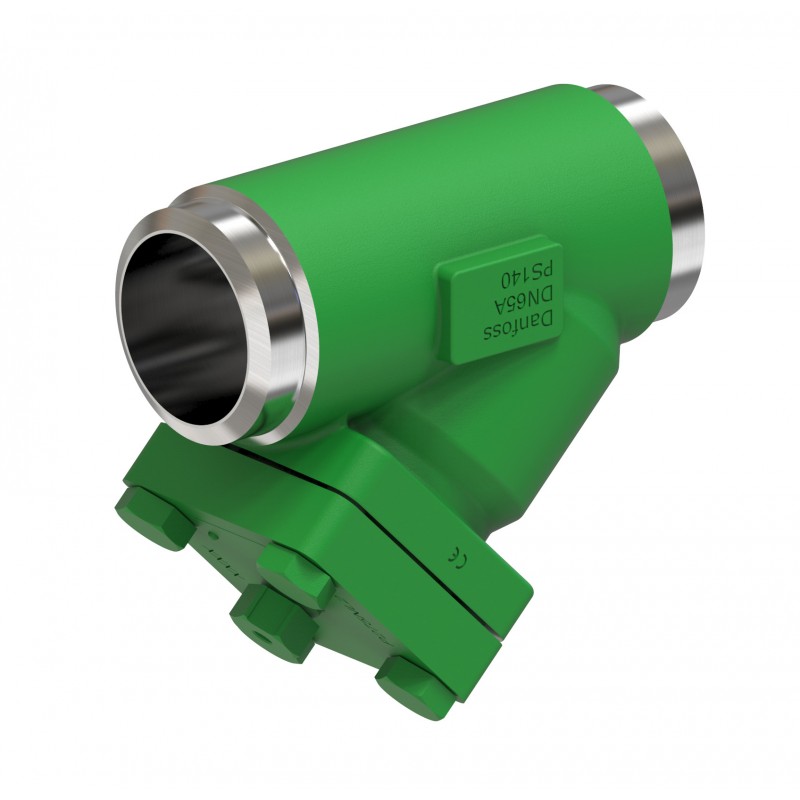

DANFOSS REFRIGERATION 148B6848 148B6848 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

148B6848 DANFOSS REFRIGERATION FIA-140B Filter Housing 65 SD STR.

Reference: 148B6848

Manufacturer: DANFOSS REFRIGERATION

Description:

FIA-140B Filter Housing 65 SD STR.
Strainers, FIA-140B 65

Categories:

  • DANFOSS REFRIGERATION

Brand new product in its original packaging covered by the warranties and certifications provided by DANFOSS REFRIGERATION

  • More Info
  • PDF
  • Reviews
Guarantee, repair and return.

* This article may be obsolete. Ask for a quotation and we will check if there are any units available. If not, one of our technicians will look for an alternative solution.

Ask for a quotation and we will check if there are any units available. If not, one of our technicians will look for an alternative solution.

LAST VIEWED

MORE INFO

Connection material: Steel, Inlet connection type: Brazed, Max. Working Pressure [bar]: 140

Product details

Gross weight6.52 Kilogram
Net weight5.91 Kilogram
Volume7.259 Liter
EAN5702424590680
TypeFIA-140B 65
Product groupStrainers
Product Name DescriptionStrainer housing
Gross weight6.52 Kilogram
Net weight5.91 Kilogram
Volume7.259 Liter
EAN5702424590680
TypeFIA-140B 65
Product groupStrainers
Product Name DescriptionStrainer housing

ApprovalCE
EAC
UKCA
C UL US LISTED
BrandSVL Flexline
CE markYes
China RoHS complianceYes
China RoHS exemption clauseNo
Colour PaintGreen
Connection materialSteel
Connection standardEN 1254-5
Contains batteriesNo
Cv value [gal/min] 100 plain188.88 gal/min
Cv value [gal/min] 100 pleated247 gal/min
Cv value [gal/min] 38 plain203.41 gal/min
Cv value [gal/min] 38 pleated265.93 gal/min
Cv value [gal/min] 72 plain194.61 gal/min
Cv value [gal/min] 72 pleated254.49 gal/min
DirectionStraightway
EquipmentCover
EU RoHS complianceYes
EU RoHS exemption clauseNo
Flow direction indicatorEmbossed 1-way arrow
Fluid Group2
Inlet connection size [mm]64 mm
Inlet connection typeBrazed
Kv value [m3/h] µ150 plain42.9 m³/h
Kv value [m3/h] µ150 pleated56.1 m³/h
Kv value [m3/h] µ250 plain44.2 m³/h
Kv value [m3/h] µ250 pleated57.8 m³/h
Kv value [m3/h] µ500 plain46.2 m³/h
Kv value [m3/h] µ500 pleated60.4 m³/h
Max. Working Pressure [bar]140 bar
Max. Working Pressure [psig]2030 psig
Outlet connection size [mm]64 mm
Outlet connection typeBrazed
Packing formatSingle pack
PED categoryI
Product accessoriesSVL Flexline accessories
Product descriptionFilter housing
Quantity per packing format1 pc
REACH Candidate List substancesNo
RefrigerantsR744
ServiceableSVL Flexline spare parts
Temperature range [°C] [max]150 °C
Temperature range [°C] [min]-40 °C
Temperature range [°F] [max]302 °F
Temperature range [°F] [min]-40 °F
Valve versionStandard version
ApprovalCE
EAC
UKCA
C UL US LISTED
BrandSVL Flexline
CE markYes
China RoHS complianceYes
China RoHS exemption clauseNo
Colour PaintGreen
Connection materialSteel
Connection standardEN 1254-5
Contains batteriesNo
Cv value [gal/min] 100 plain188.88 gal/min
Cv value [gal/min] 100 pleated247 gal/min
Cv value [gal/min] 38 plain203.41 gal/min
Cv value [gal/min] 38 pleated265.93 gal/min
Cv value [gal/min] 72 plain194.61 gal/min
Cv value [gal/min] 72 pleated254.49 gal/min
DirectionStraightway
EquipmentCover
EU RoHS complianceYes
EU RoHS exemption clauseNo
Flow direction indicatorEmbossed 1-way arrow
Fluid Group2
Inlet connection size [mm]64 mm
Inlet connection typeBrazed
Kv value [m3/h] µ150 plain42.9 m³/h
Kv value [m3/h] µ150 pleated56.1 m³/h
Kv value [m3/h] µ250 plain44.2 m³/h
Kv value [m3/h] µ250 pleated57.8 m³/h
Kv value [m3/h] µ500 plain46.2 m³/h
Kv value [m3/h] µ500 pleated60.4 m³/h
Max. Working Pressure [bar]140 bar
Max. Working Pressure [psig]2030 psig
Outlet connection size [mm]64 mm
Outlet connection typeBrazed
Packing formatSingle pack
PED categoryI
Product accessoriesSVL Flexline accessories
Product descriptionFilter housing
Quantity per packing format1 pc
REACH Candidate List substancesNo
RefrigerantsR744
ServiceableSVL Flexline spare parts
Temperature range [°C] [max]150 °C
Temperature range [°C] [min]-40 °C
Temperature range [°F] [max]302 °F
Temperature range [°F] [min]-40 °F
Valve versionStandard version
