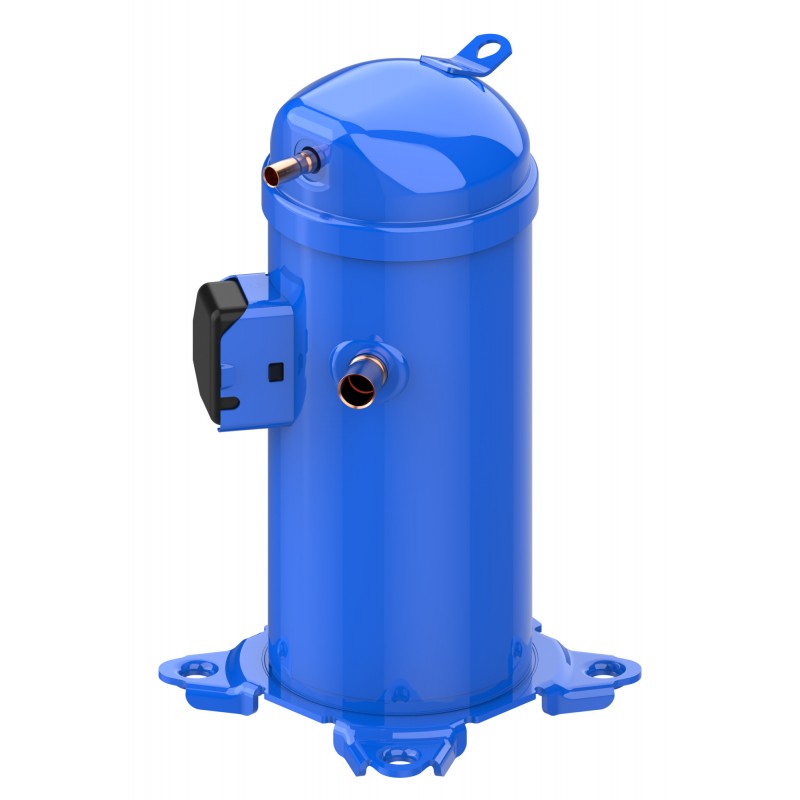

121L1756 DANFOSS REFRIGERATION Компрессор прокрутки, HLP072T4LC6
121L1756
DANFOSS REFRIGERATION
Компрессор прокрутки, HLP072T4LC6
Scroll compressor, HLP072T4LC6
Home > DANFOSS REFRIGERATION
Новый продукт в оригинальной упаковке со всеми гарантиями и сертификатами DANFOSS REFRIGERATION
Best sellers
▲Описание
▲Refrigerant: R407C, Segment usage: Air conditioning, Compressor power supply [V/Ph/Hz]: 380-415/3/50 460/3/60
Product details
| Gross weight | 41.5 kg |
| Net weight | 37 kg |
| EAN | 5702428405935 |
| Gross weight | 41.5 kg |
| Net weight | 37 kg |
| EAN | 5702428405935 |
| Approval standard | CCC CE |
| Brand technique | Scroll compressor |
| Capacity control | Fixed speed |
| Colour | Blue |
| Compressor power supply [V/Ph/Hz] | 380-415/3/50 460/3/60 |
| Configuration code | Single |
| Connection type | Brazed |
| Description | HLP072T4 |
| Diameter [mm] | 184 mm |
| Discharge connection height [mm] | 422 mm |
| Discharge connection pipe size [in] | 1/2 in |
| Discharge connection size [in] | 1/2 in |
| Drawing number | 0XR6089B-1 |
| Economizer | No |
| Fitting standard | ODF |
| Frequency [Hz] | 50/60 |
| Gauge port HP | None |
| Gauge port LP | None |
| Gaz equalization | None |
| Glass mounting | None |
| High side max pressure (Ps) | 31.1 bar |
| High value of nominal voltage at 50Hz [V] | 415 V |
| High value of nominal voltage at 60Hz [V] | 460 V |
| High value of voltage range at 50Hz [V] | 457 V |
| High value of voltage range at 60Hz [V] | 506 V |
| IP protection class | IP22 |
| Length [mm] | 239 mm |
| Low side max pressure (Ps) | 26.2 bar |
| Low value of nominal voltage at 50Hz [V] | 380 V |
| Low value of nominal voltage at 60Hz [V] | 460 V |
| Low value of voltage range at 50Hz [V] | 342 V |
| Low value of voltage range at 60Hz [V] | 414 V |
| LRA | 87 A |
| MCC | 15 A |
| Model number | HLP072T4LC6 |
| Motor protection | Internal overload protector |
| Nominal cooling capacity 60 kBTU/h | 68.06 kBtu/h |
| Nominal cooling capacity at 50Hz | 15.2 kW |
| Nominal cooling capacity at 60Hz | 19.9 kW |
| Nominal heating capacity at 50Hz | 9.8 kW |
| Number of starts per hour [Max] | 12 |
| Oil charge [L] | 1.57 L |
| Oil equalization | None |
| Oil reference | 320HV |
| Oil type | PVE |
| Packing format | Single pack |
| Packing quantity | 1 |
| Phase | 3 |
| Power connections | Screw connectors 10-32 UNF x 9.5 |
| Refrigerant | R407C |
| Refrigerant charge [kg] [Max] | 5.44 kg |
| Relief valve | Yes |
| RLA | 9.6 A |
| Rotational speed at 50Hz [rpm] | 2900 rpm |
| Rotational speed at 60Hz [rpm] | 3500 rpm |
| Segment usage | Air conditioning |
| Shipped instructions | Installation instructions |
| Shipped mounting | Mounting kit with grommets and sleeves |
| Shipped oil | Initial oil charge |
| Suction connection height [mm] | 280 mm |
| Suction connection pipe size [in] | 7/8 in |
| Suction connection size [in] | 7/8 in |
| Swept volume [cm3] | 98.65 cm³ |
| Technology | Scroll |
| Torque earth [Nm] | 2 Nm |
| Torque power [Nm] | 3 Nm |
| Total height [mm] | 455 mm |
| Type | HLP |
| Type designation | Compressor |
| Viscosity [cP] | 68 cP |
| Width [mm] | 239 mm |
| Winding resistance 1-2 [Ohm] | 1.85 Ohm |
| Winding resistance 1-3 [Ohm] | 1.83 Ohm |
| Winding resistance 2-3 [Ohm] | 1.87 Ohm |
| Approval standard | CCC CE |
| Brand technique | Scroll compressor |
| Capacity control | Fixed speed |
| Colour | Blue |
| Compressor power supply [V/Ph/Hz] | 380-415/3/50 460/3/60 |
| Configuration code | Single |
| Connection type | Brazed |
| Description | HLP072T4 |
| Diameter [mm] | 184 mm |
| Discharge connection height [mm] | 422 mm |
| Discharge connection pipe size [in] | 1/2 in |
| Discharge connection size [in] | 1/2 in |
| Drawing number | 0XR6089B-1 |
| Economizer | No |
| Fitting standard | ODF |
| Frequency [Hz] | 50/60 |
| Gauge port HP | None |
| Gauge port LP | None |
| Gaz equalization | None |
| Glass mounting | None |
| High side max pressure (Ps) | 31.1 bar |
| High value of nominal voltage at 50Hz [V] | 415 V |
| High value of nominal voltage at 60Hz [V] | 460 V |
| High value of voltage range at 50Hz [V] | 457 V |
| High value of voltage range at 60Hz [V] | 506 V |
| IP protection class | IP22 |
| Length [mm] | 239 mm |
| Low side max pressure (Ps) | 26.2 bar |
| Low value of nominal voltage at 50Hz [V] | 380 V |
| Low value of nominal voltage at 60Hz [V] | 460 V |
| Low value of voltage range at 50Hz [V] | 342 V |
| Low value of voltage range at 60Hz [V] | 414 V |
| LRA | 87 A |
| MCC | 15 A |
| Model number | HLP072T4LC6 |
| Motor protection | Internal overload protector |
| Nominal cooling capacity 60 kBTU/h | 68.06 kBtu/h |
| Nominal cooling capacity at 50Hz | 15.2 kW |
| Nominal cooling capacity at 60Hz | 19.9 kW |
| Nominal heating capacity at 50Hz | 9.8 kW |
| Number of starts per hour [Max] | 12 |
| Oil charge [L] | 1.57 L |
| Oil equalization | None |
| Oil reference | 320HV |
| Oil type | PVE |
| Packing format | Single pack |
| Packing quantity | 1 |
| Phase | 3 |
| Power connections | Screw connectors 10-32 UNF x 9.5 |
| Refrigerant | R407C |
| Refrigerant charge [kg] [Max] | 5.44 kg |
| Relief valve | Yes |
| RLA | 9.6 A |
| Rotational speed at 50Hz [rpm] | 2900 rpm |
| Rotational speed at 60Hz [rpm] | 3500 rpm |
| Segment usage | Air conditioning |
| Shipped instructions | Installation instructions |
| Shipped mounting | Mounting kit with grommets and sleeves |
| Shipped oil | Initial oil charge |
| Suction connection height [mm] | 280 mm |
| Suction connection pipe size [in] | 7/8 in |
| Suction connection size [in] | 7/8 in |
| Swept volume [cm3] | 98.65 cm³ |
| Technology | Scroll |
| Torque earth [Nm] | 2 Nm |
| Torque power [Nm] | 3 Nm |
| Total height [mm] | 455 mm |
| Type | HLP |
| Type designation | Compressor |
| Viscosity [cP] | 68 cP |
| Width [mm] | 239 mm |
| Winding resistance 1-2 [Ohm] | 1.85 Ohm |
| Winding resistance 1-3 [Ohm] | 1.83 Ohm |
| Winding resistance 2-3 [Ohm] | 1.87 Ohm |
Datasheet - PDF
▲| Заглавие: | Размер: | Тип: |
|---|---|---|
| PDF CATALOGUE DANFOSS REFRIGERATION AND AIRCONDITIONING EN.pdf | 11 Mbytes |
|
