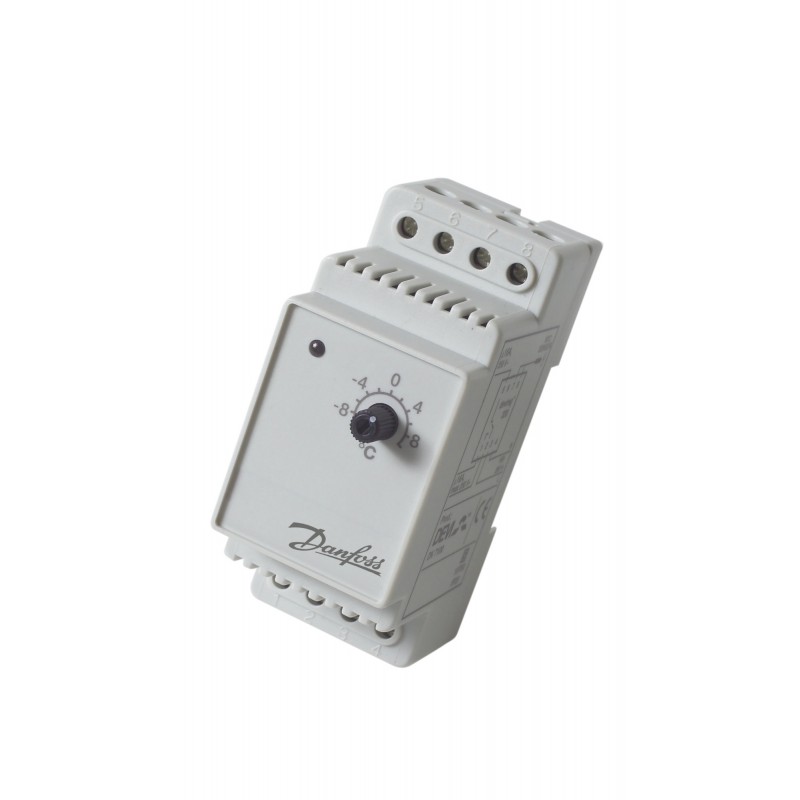

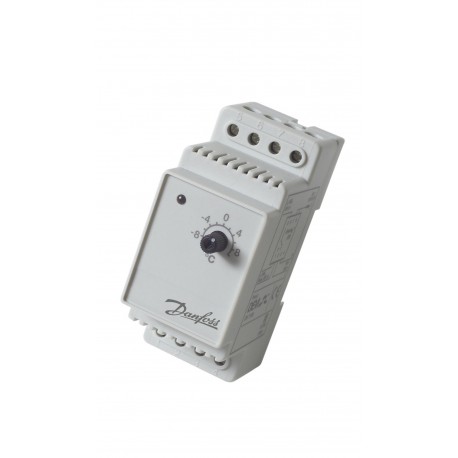

088L0444 DANFOSS HEATING EFET-330, -10 C-+10 CDINrail, сенсорная кабина
088L0444
DANFOSS HEATING
EFET-330, -10>C-+10>CDINrail, сенсорная кабина
Thermostats, ECtemp 330, Sensor type: Wire, 16 A
Home > DANFOSS HEATING
Новый продукт в оригинальной упаковке со всеми гарантиями и сертификатами DANFOSS HEATING
Best sellers
▲Описание
▲Temperature setting range [°C]: -10 - 10, Display type: No display, Application: Asphalt ice and snow melting; Roof frost protection; Vineyard frost protection; Cold store; Ground ice and snow melting; Pipe / tank frost protection; Sport fields
Product details
| Gross weight | 0.3 Kg |
| Net weight | 0.18 Kg |
| Volume | 0.761 Liter |
| EAN | 5703466130346 |
| Gross weight | 0.3 Kg |
| Net weight | 0.18 Kg |
| Volume | 0.761 Liter |
| EAN | 5703466130346 |
| 2-pole switch | No |
| Ambient temperature [°C] [max] | 50 °C |
| Ambient temperature [°C] [min] | -10 °C |
| Application | Pipe / tank frost protection Asphalt ice and snow melting Cold store Ground ice and snow melting Roof frost protection Sport fields Vineyard frost protection |
| Approval | CE |
| Ball pressure test temperature [°C] | 75 °C |
| Certification company | NEMKO |
| Colour | White RAL 9010 |
| Depth [mm] | 58 mm |
| Description | ECtemp 330 -10+10° |
| DIN mounting | Yes |
| Display type | No display |
| Element IP Class | 20 |
| Height [mm] | 86 mm |
| Hysteresis (+/-) | 0.2 |
| In scope of WEEE and contain batteries | No |
| Indicator type | LED |
| Inductive load | cos φ= 0.3 max 1A |
| Package depth [mm] | 140 mm |
| Package height [mm] | 85 mm |
| Package width [mm] | 95 mm |
| Pollution degree | 2 |
| Product description | ECtemp 330 |
| Product group | Thermostats |
| REACH Candidate List substances | No |
| Regulation type | Hysteresis |
| Relay switch | 1-pole |
| Resistive load max [A] | 16 A |
| Scale Setting | -10 +10ºC |
| Sensor definition point [Ohm/°C] | 15kΩ / 25°C |
| Sensor type | Wire |
| Standby power consumption [W] [Max] | 0.25 W |
| Storage temperature [°C] [Max] | 65 °C |
| Storage temperature [°C] [Min] | -20 °C |
| Supply voltage [V] AC | 230 V |
| Supply voltage [V] AC [max] | 240 V |
| Supply voltage [V] AC [min] | 220 V |
| Temperature setting range [°C] [Max] | 10 °C |
| Temperature setting range [°C] [Min] | -10 °C |
| Terminal cable size max [mm²] | 2 x 2.5 |
| Type | ECtemp 330 series |
| UNSPSC CODE | 41112209 |
| Warranty [Year] | 2 |
| Warranty type | 2-year product warranty |
| Width [mm] | 36 mm |
| 2-pole switch | No |
| Ambient temperature [°C] [max] | 50 °C |
| Ambient temperature [°C] [min] | -10 °C |
| Application | Pipe / tank frost protection Asphalt ice and snow melting Cold store Ground ice and snow melting Roof frost protection Sport fields Vineyard frost protection |
| Approval | CE |
| Ball pressure test temperature [°C] | 75 °C |
| Certification company | NEMKO |
| Colour | White RAL 9010 |
| Depth [mm] | 58 mm |
| Description | ECtemp 330 -10+10° |
| DIN mounting | Yes |
| Display type | No display |
| Element IP Class | 20 |
| Height [mm] | 86 mm |
| Hysteresis (+/-) | 0.2 |
| In scope of WEEE and contain batteries | No |
| Indicator type | LED |
| Inductive load | cos φ= 0.3 max 1A |
| Package depth [mm] | 140 mm |
| Package height [mm] | 85 mm |
| Package width [mm] | 95 mm |
| Pollution degree | 2 |
| Product description | ECtemp 330 |
| Product group | Thermostats |
| REACH Candidate List substances | No |
| Regulation type | Hysteresis |
| Relay switch | 1-pole |
| Resistive load max [A] | 16 A |
| Scale Setting | -10 +10ºC |
| Sensor definition point [Ohm/°C] | 15kΩ / 25°C |
| Sensor type | Wire |
| Standby power consumption [W] [Max] | 0.25 W |
| Storage temperature [°C] [Max] | 65 °C |
| Storage temperature [°C] [Min] | -20 °C |
| Supply voltage [V] AC | 230 V |
| Supply voltage [V] AC [max] | 240 V |
| Supply voltage [V] AC [min] | 220 V |
| Temperature setting range [°C] [Max] | 10 °C |
| Temperature setting range [°C] [Min] | -10 °C |
| Terminal cable size max [mm²] | 2 x 2.5 |
| Type | ECtemp 330 series |
| UNSPSC CODE | 41112209 |
| Warranty [Year] | 2 |
| Warranty type | 2-year product warranty |
| Width [mm] | 36 mm |
Datasheet - PDF
