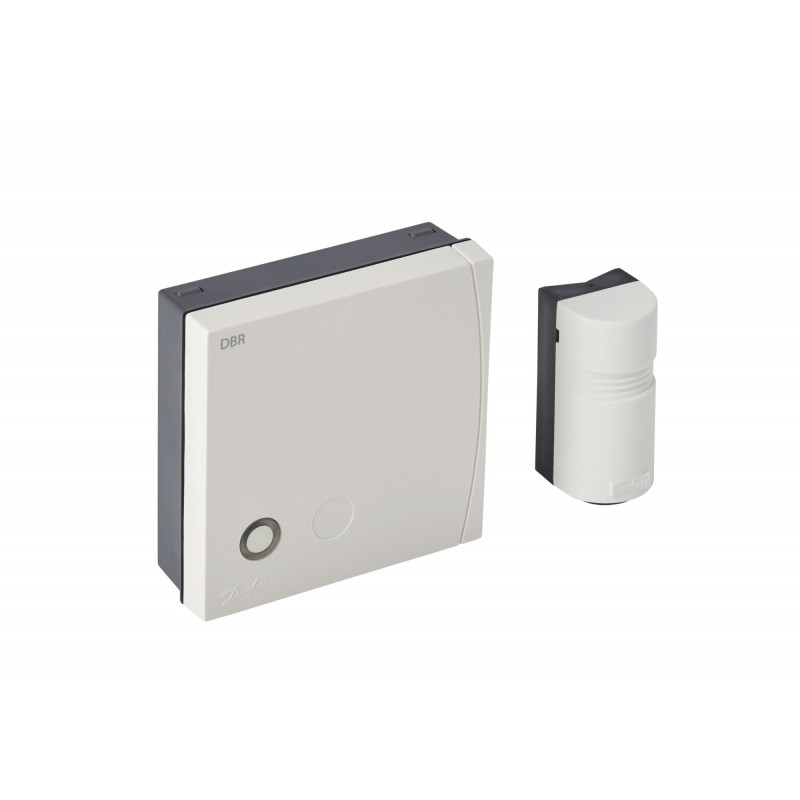

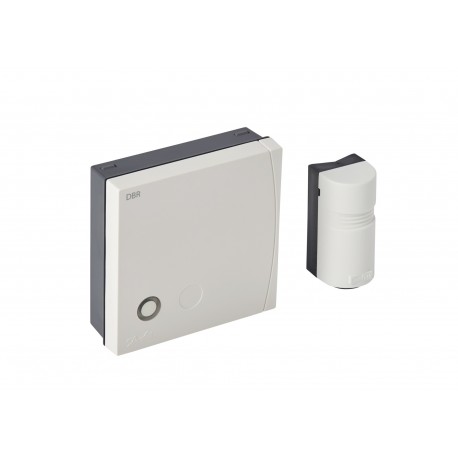

014G0279 DANFOSS HEATING Динамическое реле котла
014G0279
DANFOSS HEATING
Динамическое реле котла
Dynamic Boiler Relay for Danfoss Link, 868.42 MHz
Home > DANFOSS HEATING
Новый продукт в оригинальной упаковке со всеми гарантиями и сертификатами DANFOSS HEATING
Best sellers
▲Описание
▲Dynamic Boiler Relay for Danfoss Link
Product details
| Gross weight | 0.235 Kg |
| Net weight | 0.195 Kg |
| Volume | 1.08 Liter |
| EAN | 5702425145124 |
| Gross weight | 0.235 Kg |
| Net weight | 0.195 Kg |
| Volume | 1.08 Liter |
| EAN | 5702425145124 |
| Adapter type | N/A |
| Ambient temperature [°C] [max] | 45 °C |
| Ambient temperature [°C] [min] | 0 °C |
| Application | Residential (pollution degree 2) |
| Approval | Z-Wave CE |
| Approval standard | CE marking |
| Approvals | Z-Wave CE |
| Ball pressure test temperature [°C] | 75 °C |
| Colour | RAL 9016 |
| Description | Dynamic Boiler Relay for Danfoss Link |
| Height [mm] | 84 mm |
| Length [mm] | 84 mm |
| Pollution degree | 2 |
| Power consumption (standby) [W] | 1.6 W |
| Product group | Danfoss Link™ |
| Rated impulse voltage [kV] | 2.5 kV |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) |
| Regulation type | On/Off |
| Resistive load [A] | 3 A |
| Software class | A |
| Supply voltage [V] AC | 230 V |
| Supply voltage frequency [Hz] | 50 Hz |
| Switch type | 1B |
| System integration | Danfoss Link™ |
| Thermostat IP Class | 40 |
| Transmission [m] [Max] | 30 m |
| Transmission frequency [MHz] | 868.42 MHz |
| Transmission power [mW] [Max] | 1 mW |
| Type | Boiler relay |
| Width [mm] | 30 mm |
| Wireless standard | Z-wave |
| Adapter type | N/A |
| Ambient temperature [°C] [max] | 45 °C |
| Ambient temperature [°C] [min] | 0 °C |
| Application | Residential (pollution degree 2) |
| Approval | Z-Wave CE |
| Approval standard | CE marking |
| Approvals | Z-Wave CE |
| Ball pressure test temperature [°C] | 75 °C |
| Colour | RAL 9016 |
| Description | Dynamic Boiler Relay for Danfoss Link |
| Height [mm] | 84 mm |
| Length [mm] | 84 mm |
| Pollution degree | 2 |
| Power consumption (standby) [W] | 1.6 W |
| Product group | Danfoss Link™ |
| Rated impulse voltage [kV] | 2.5 kV |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) |
| Regulation type | On/Off |
| Resistive load [A] | 3 A |
| Software class | A |
| Supply voltage [V] AC | 230 V |
| Supply voltage frequency [Hz] | 50 Hz |
| Switch type | 1B |
| System integration | Danfoss Link™ |
| Thermostat IP Class | 40 |
| Transmission [m] [Max] | 30 m |
| Transmission frequency [MHz] | 868.42 MHz |
| Transmission power [mW] [Max] | 1 mW |
| Type | Boiler relay |
| Width [mm] | 30 mm |
| Wireless standard | Z-wave |
Datasheet - PDF
▲| Заглавие: | Размер: | Тип: |
|---|---|---|
| PDF CATALOGUE DANFOSS HEATING EN .pdf | 11 Mbytes |
|
