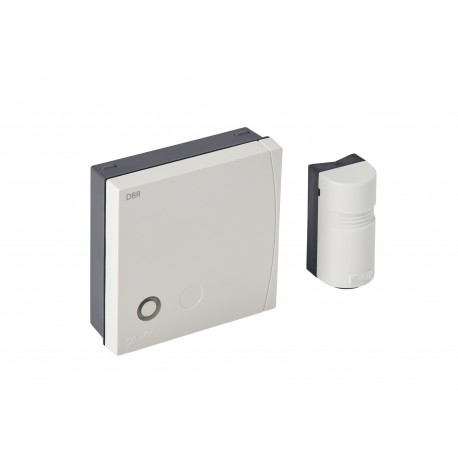

014G0279 DANFOSS HEATING Dynamic Boiler Relay
Reference: 014G0279
Manufacturer: DANFOSS HEATING
Description:
Dynamic Boiler Relay
Dynamic Boiler Relay for Danfoss Link, 868.42 MHz
Categories:
- DANFOSS HEATING
Brand new product in its original packaging covered by the warranties and certifications provided by DANFOSS HEATING
- More Info
- Reviews
* This article may be obsolete. Ask for a quotation and we will check if there are any units available. If not, one of our technicians will look for an alternative solution.
Go to successor article:014G2479014G2479
Ask for a quotation and we will check if there are any units available. If not, one of our technicians will look for an alternative solution.
- These delivery times are an estimate any may vary when the item order has been processed.
MORE INFO
Dynamic Boiler Relay for Danfoss Link, Z-wave
Product details
| Gross weight | 0.235 Kilogram |
| Net weight | 0.195 Kilogram |
| Volume | 1.08 Liter |
| EAN | 5702425145124 |
| Type | Boiler relay |
| Product group | Danfoss Link™ |
| Gross weight | 0.235 Kilogram |
| Net weight | 0.195 Kilogram |
| Volume | 1.08 Liter |
| EAN | 5702425145124 |
| Type | Boiler relay |
| Product group | Danfoss Link™ |
| Adapter type | N/A |
| Ambient temperature [°C] [max] | 45 °C |
| Ambient temperature [°C] [min] | 0 °C |
| Application | Residential (pollution degree 2) |
| Approval | Z-Wave CE |
| Approval standard | CE marking |
| Ball pressure test temperature [°C] | 75 °C |
| CE evaluated | Yes |
| Colour | RAL 9016 |
| Contains batteries | No |
| Description | Dynamic Boiler Relay for Danfoss Link |
| EEE category | 5 small equipment (any external dimension < 50 cm) |
| Height [mm] | 84 mm |
| In scope of WEEE | Yes |
| Length [mm] | 84 mm |
| Pollution degree | 2 |
| Power consumption (standby) [W] | 1.6 W |
| Rated impulse voltage [kV] | 2.5 kV |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) |
| Regulation type | On/Off |
| Resistive load [A] | 3 A |
| Software class | A |
| Supply voltage [V] AC | 230 V |
| Supply voltage frequency [Hz] | 50 Hz |
| System integration | Danfoss Link™ |
| Thermostat IP Class | 40 |
| Transmission [m] [Max] | 30 m |
| Transmission frequency [MHz] | 868.42 MHz |
| Transmission power [mW] [Max] | 1 mW |
| Width [mm] | 30 mm |
| Wireless standard | Z-wave |
| Adapter type | N/A |
| Ambient temperature [°C] [max] | 45 °C |
| Ambient temperature [°C] [min] | 0 °C |
| Application | Residential (pollution degree 2) |
| Approval | Z-Wave CE |
| Approval standard | CE marking |
| Ball pressure test temperature [°C] | 75 °C |
| CE evaluated | Yes |
| Colour | RAL 9016 |
| Contains batteries | No |
| Description | Dynamic Boiler Relay for Danfoss Link |
| EEE category | 5 small equipment (any external dimension < 50 cm) |
| Height [mm] | 84 mm |
| In scope of WEEE | Yes |
| Length [mm] | 84 mm |
| Pollution degree | 2 |
| Power consumption (standby) [W] | 1.6 W |
| Rated impulse voltage [kV] | 2.5 kV |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) |
| Regulation type | On/Off |
| Resistive load [A] | 3 A |
| Software class | A |
| Supply voltage [V] AC | 230 V |
| Supply voltage frequency [Hz] | 50 Hz |
| System integration | Danfoss Link™ |
| Thermostat IP Class | 40 |
| Transmission [m] [Max] | 30 m |
| Transmission frequency [MHz] | 868.42 MHz |
| Transmission power [mW] [Max] | 1 mW |
| Width [mm] | 30 mm |
| Wireless standard | Z-wave |
