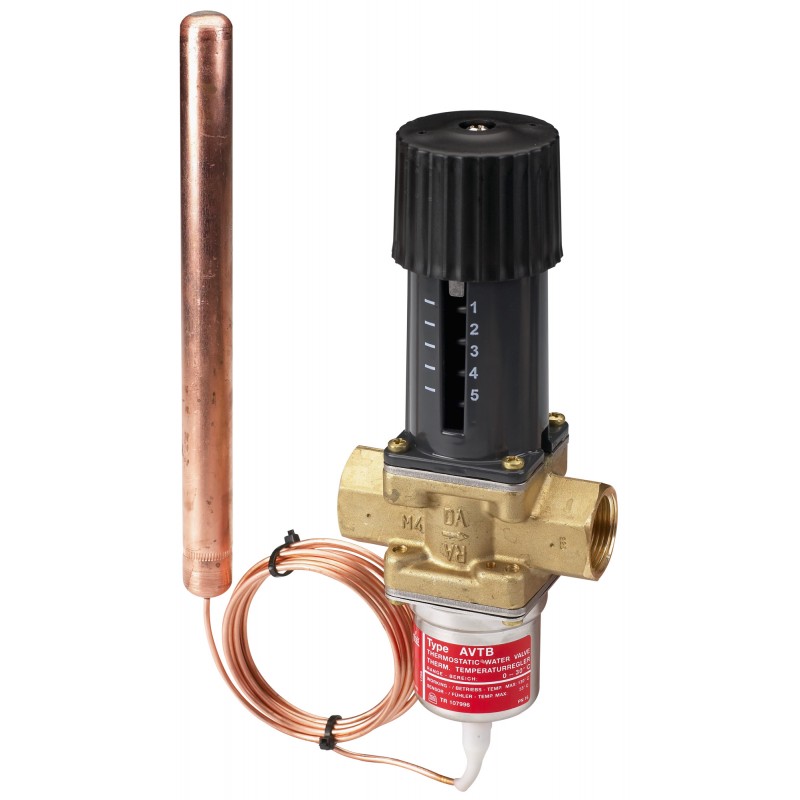

003N5102 DANFOSS HEATING АВТБ 20, Квс3.4, 0-30С
003N5102
DANFOSS HEATING
АВТБ 20, Квс3.4, 0-30С
AVTB, PN 16, 3.40 m³/h, 0 °C - 30 °C, 2.0 m, External Thread
Home > DANFOSS HEATING
Новый продукт в оригинальной упаковке со всеми гарантиями и сертификатами DANFOSS HEATING
Best sellers
▲Описание
▲AVTB 20 Thermostatic valve 0-30#C
Product details
| Gross weight | 1.706 Kg |
| Net weight | 1.621 Kg |
| Volume | 4.059 Liter |
| EAN | 5702421100417 |
| Gross weight | 1.706 Kg |
| Net weight | 1.621 Kg |
| Volume | 4.059 Liter |
| EAN | 5702421100417 |
| Ambient temperature [°C] [max] | 70 °C |
| Ambient temperature [°C] [min] | 0 °C |
| Approval standard | ETA VA 1.54/18952 |
| Capillary tube length [m] | 2 m |
| Cavitation factor | 0.4 |
| Cone /seat sealing material | NBR / DZR brass BS 2872 / CZ132 |
| Connection size | G 1 A |
| Connection standard | ISO 228/1 |
| Connection types | External Thread |
| Description | AVTB 20 Thermostatic valve 0-30#C |
| Diameter [mm] | 20 mm |
| Differential pressure range [bar] [Max] | 10 bar |
| Flow characteristic | Linear |
| Flow control | No |
| Function | Temp. controller |
| Function VSP - P | No |
| Function VSP - Q | No |
| Function VSP - T | Yes |
| Impulse tube material | Copper mat. No 2.0090 |
| In scope of WEEE and contain batteries | No |
| Kvs values [m³/h] | 3.4 m³/h |
| Media pH [Max] | 10 |
| Media pH [Min] | 7 |
| Media temperature [°C] [Max] | 130 °C |
| Media temperature [°C] [Min] | 2 °C |
| Media temperature at sensor [°C] [Max] | 55 °C |
| Medium alternative | Glycolic water up to 30% |
| Mounting version | Free |
| Number of ports | 2 |
| Permissible media | District heating/cooling circulation water |
| PN alternative VSP | 10 |
| Pressure class | PN 16 |
| Pressure nominal [bar] | 16 bar |
| Product group | Temperature controllers |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) |
| Rection time close [sec] | 15 " |
| Rection time open [sec] | 3 " |
| Return limiter function | No |
| Sensor connection | M22x1 / R3/4 ext thread acc. DIN 2999 |
| Temperature control | Yes |
| Temperature sensor diameter [mm] | 18 mm |
| Temperature sensor length [mm] | 210 mm |
| Temperature sensor material | Copper mat. No 2.0090 |
| Temperature setting range [°C] [Max] | 30 °C |
| Temperature setting range [°C] [Min] | 0 °C |
| Time constant [sec] | 3 " |
| Transport temperature [°C] [Max] | 50 °C |
| Transport temperature [°C] [Min] | -20 °C |
| Type | AVTB |
| Valve body material | DZR brass BS 2872/CZ132 |
| Valve cone material | NBR rubber |
| Valve seat material | Cr Ni steel W.no 1.4301 |
| Ambient temperature [°C] [max] | 70 °C |
| Ambient temperature [°C] [min] | 0 °C |
| Approval standard | ETA VA 1.54/18952 |
| Capillary tube length [m] | 2 m |
| Cavitation factor | 0.4 |
| Cone /seat sealing material | NBR / DZR brass BS 2872 / CZ132 |
| Connection size | G 1 A |
| Connection standard | ISO 228/1 |
| Connection types | External Thread |
| Description | AVTB 20 Thermostatic valve 0-30#C |
| Diameter [mm] | 20 mm |
| Differential pressure range [bar] [Max] | 10 bar |
| Flow characteristic | Linear |
| Flow control | No |
| Function | Temp. controller |
| Function VSP - P | No |
| Function VSP - Q | No |
| Function VSP - T | Yes |
| Impulse tube material | Copper mat. No 2.0090 |
| In scope of WEEE and contain batteries | No |
| Kvs values [m³/h] | 3.4 m³/h |
| Media pH [Max] | 10 |
| Media pH [Min] | 7 |
| Media temperature [°C] [Max] | 130 °C |
| Media temperature [°C] [Min] | 2 °C |
| Media temperature at sensor [°C] [Max] | 55 °C |
| Medium alternative | Glycolic water up to 30% |
| Mounting version | Free |
| Number of ports | 2 |
| Permissible media | District heating/cooling circulation water |
| PN alternative VSP | 10 |
| Pressure class | PN 16 |
| Pressure nominal [bar] | 16 bar |
| Product group | Temperature controllers |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) |
| Rection time close [sec] | 15 " |
| Rection time open [sec] | 3 " |
| Return limiter function | No |
| Sensor connection | M22x1 / R3/4 ext thread acc. DIN 2999 |
| Temperature control | Yes |
| Temperature sensor diameter [mm] | 18 mm |
| Temperature sensor length [mm] | 210 mm |
| Temperature sensor material | Copper mat. No 2.0090 |
| Temperature setting range [°C] [Max] | 30 °C |
| Temperature setting range [°C] [Min] | 0 °C |
| Time constant [sec] | 3 " |
| Transport temperature [°C] [Max] | 50 °C |
| Transport temperature [°C] [Min] | -20 °C |
| Type | AVTB |
| Valve body material | DZR brass BS 2872/CZ132 |
| Valve cone material | NBR rubber |
| Valve seat material | Cr Ni steel W.no 1.4301 |
Datasheet - PDF
