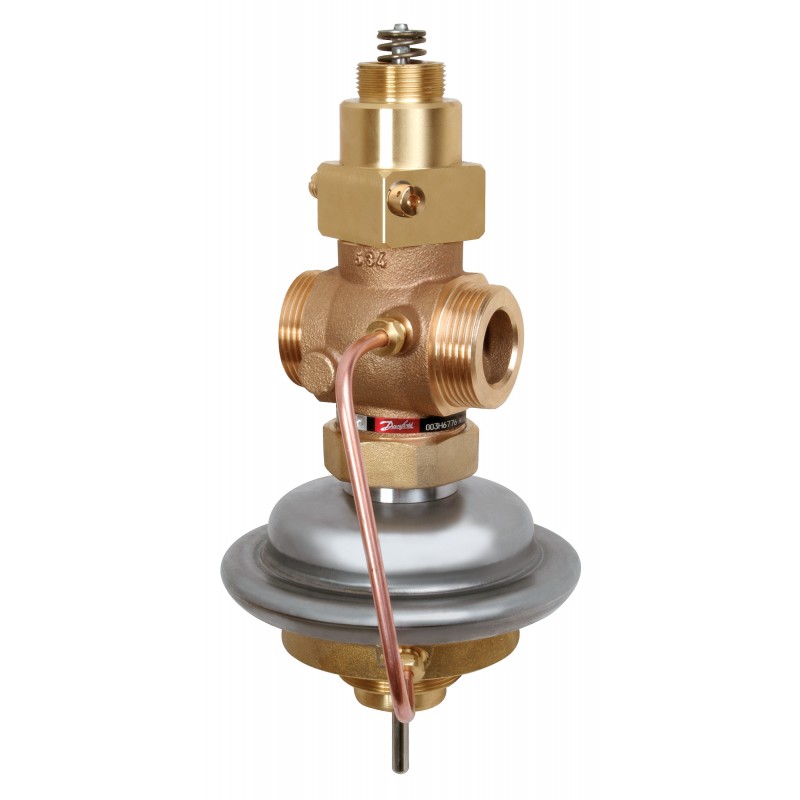

003H6781 DANFOSS HEATING AVQMT PN25 40/20 /0,2 поток фланца / ret
003H6781
DANFOSS HEATING
AVQMT PN25 40/20 /0,2 поток фланца / ret
AVQMT, PN 25, DN 40, Flow rate [m³/h]: 0.80 - 12.00, Flange, Mounting version: Free
Home > DANFOSS HEATING
Новый продукт в оригинальной упаковке со всеми гарантиями и сертификатами DANFOSS HEATING
Best sellers
▲Описание
▲AVQMT PN25 40/20 /0,2 flange flow/ret
Product details
| Gross weight | 12.458 Kg |
| Net weight | 12.458 Kg |
| Volume | 26.197 Liter |
| EAN | 5702421543023 |
| Gross weight | 12.458 Kg |
| Net weight | 12.458 Kg |
| Volume | 26.197 Liter |
| EAN | 5702421543023 |
| Actuator diaphragm material | EPDM |
| Application | District Heating |
| Cavitation factor | 0.6 |
| Connection types | Flange |
| Description | AVQMT PN25 40/20 /0,2 flange flow/ret |
| Diameter [mm] | 40 mm |
| Differential pressure range [bar] [Max] | 16 bar |
| Flow control | Yes |
| Flow limitation | Yes |
| Flow rate [m³/h] | 12 m³/h |
| Flow rate [m³/h] [Max] | 12 m³/h |
| Flow rate [m³/h] [Min] | 0.8 m³/h |
| Flow restrictor diff.pressure - dpb [bar] | 0.2 bar |
| Function | Flow and temp. contr. with int. contr. valve |
| Function VSP - P | No |
| Function VSP - Q | No |
| Function VSP - T | No |
| In scope of WEEE and contain batteries | No |
| Kvs values [m³/h] | 20 m³/h |
| Leakage rate [% Kvs] | 0.05 |
| Media pH [Max] | 10 |
| Media pH [Min] | 7 |
| Media temperature [°C] [Max] | 150 °C |
| Media temperature [°C] [Min] | 2 °C |
| Medium alternative | Glycolic water up to 30% |
| Mounting version | Free |
| Number of ports | 2 |
| Permissible media | District heating/cooling circulation water |
| PN alternative VSP | 16 |
| Pressure class | PN 25 |
| Pressure controller | No |
| Pressure nominal [bar] | 25 bar |
| Pressure relieve system control valve insert | Piston |
| Product group | Pressure flow controllers |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) |
| Sealing CV material | EPDM |
| Sealing DP material | EPDM |
| Setting Type | None |
| Stem position | Normally open |
| Stroke [mm] | 10 mm |
| Type | AVQMT |
| Valve body material | Ductile iron EN-GJS-400-18-LT (GGG 40.3) |
| Valve cone CV material | Dezincing free brass CuZn36Pb2As |
| Valve cone DP material | Dezincing free brass CuZn36Pb2As |
| Valve seat material | Stainless steel, mat. No. 1.4571 |
| Valve size | DN 40 |
| Actuator diaphragm material | EPDM |
| Application | District Heating |
| Cavitation factor | 0.6 |
| Connection types | Flange |
| Description | AVQMT PN25 40/20 /0,2 flange flow/ret |
| Diameter [mm] | 40 mm |
| Differential pressure range [bar] [Max] | 16 bar |
| Flow control | Yes |
| Flow limitation | Yes |
| Flow rate [m³/h] | 12 m³/h |
| Flow rate [m³/h] [Max] | 12 m³/h |
| Flow rate [m³/h] [Min] | 0.8 m³/h |
| Flow restrictor diff.pressure - dpb [bar] | 0.2 bar |
| Function | Flow and temp. contr. with int. contr. valve |
| Function VSP - P | No |
| Function VSP - Q | No |
| Function VSP - T | No |
| In scope of WEEE and contain batteries | No |
| Kvs values [m³/h] | 20 m³/h |
| Leakage rate [% Kvs] | 0.05 |
| Media pH [Max] | 10 |
| Media pH [Min] | 7 |
| Media temperature [°C] [Max] | 150 °C |
| Media temperature [°C] [Min] | 2 °C |
| Medium alternative | Glycolic water up to 30% |
| Mounting version | Free |
| Number of ports | 2 |
| Permissible media | District heating/cooling circulation water |
| PN alternative VSP | 16 |
| Pressure class | PN 25 |
| Pressure controller | No |
| Pressure nominal [bar] | 25 bar |
| Pressure relieve system control valve insert | Piston |
| Product group | Pressure flow controllers |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) |
| Sealing CV material | EPDM |
| Sealing DP material | EPDM |
| Setting Type | None |
| Stem position | Normally open |
| Stroke [mm] | 10 mm |
| Type | AVQMT |
| Valve body material | Ductile iron EN-GJS-400-18-LT (GGG 40.3) |
| Valve cone CV material | Dezincing free brass CuZn36Pb2As |
| Valve cone DP material | Dezincing free brass CuZn36Pb2As |
| Valve seat material | Stainless steel, mat. No. 1.4571 |
| Valve size | DN 40 |
