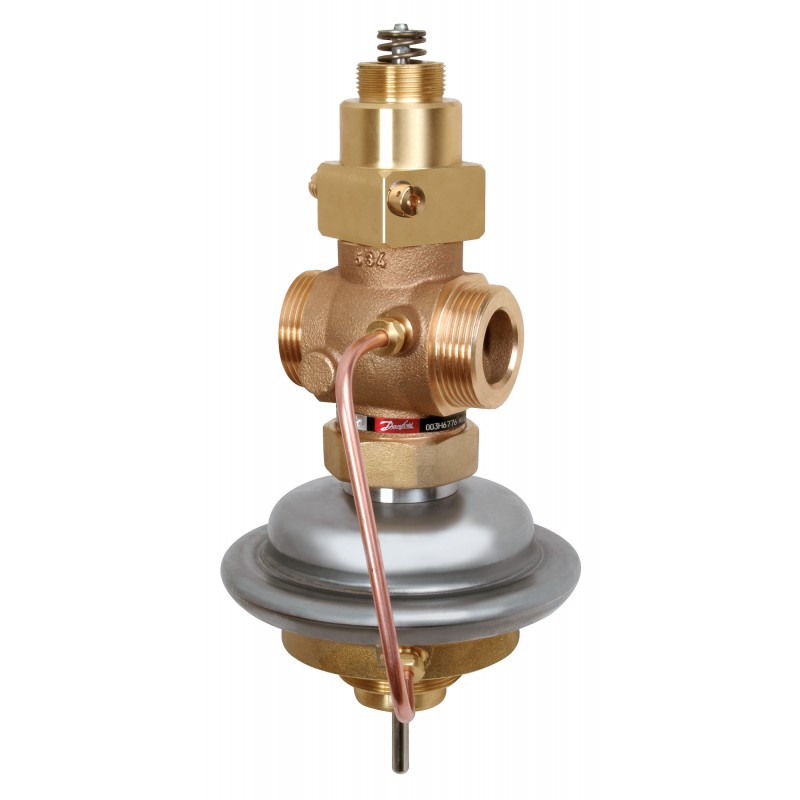

DANFOSS HEATING 003H6781 003H6781 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

003H6781 DANFOSS HEATING AVQMT PN25 40/20 /0,2 flange flow/ret

Reference: 003H6781

Manufacturer: DANFOSS HEATING

Description:

AVQMT PN25 40/20 /0,2 flange flow/ret
AVQMT, PN 25, DN 40, Flow rate [m³/h]: 0.80 - 12.00, Flange, Mounting version: Free

Categories:

  • DANFOSS HEATING

Brand new product in its original packaging covered by the warranties and certifications provided by DANFOSS HEATING

  • More Info
  • PDF
  • Reviews
Guarantee, repair and return.

Unit Price: 3.183,89 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 10 days.

  • These delivery times are an estimate any may vary when the item order has been processed.

LAST VIEWED

MORE INFO

AVQMT PN25 40/20 /0,2 flange flow/ret

Product details

Gross weight12.458 Kilogram
Net weight12.458 Kilogram
Volume26.197 Liter
EAN5702421543023
Gross weight12.458 Kilogram
Net weight12.458 Kilogram
Volume26.197 Liter
EAN5702421543023

Actuator diaphragm materialEPDM
ApplicationDistrict Heating
Cavitation factor0.6
Cavitation factor 100%0.34
Cavitation factor 25%0.58
Cavitation factor 50%0.52
Cavitation factor 75%0.5
China RoHS complianceOut of scope
Connection typesFlange
DescriptionAVQMT PN25 40/20 /0,2 flange flow/ret
Diameter [mm]40 mm
Differential pressure range [bar] [Max]16 bar
EU RoHS complianceYes with exemptions
Flow controlYes
Flow limitationYes
Flow rate [m³/h]12 m³/h
Flow rate [m³/h] [Max]12 m³/h
Flow rate [m³/h] [Min]0.8 m³/h
Flow restrictor diff.pressure - dpb [bar]0.2 bar
FunctionFlow and temp. contr. with int. contr. valve
Function VSP - PNo
Function VSP - QNo
Function VSP - TNo
In scope of WEEE and contain batteriesNo
Kvs values [m³/h]20 m³/h
Leakage rate [% Kvs]0.05
Media pH [Max]10
Media pH [Min]7
Media temperature [°C] [Max]150 °C
Media temperature [°C] [Min]2 °C
Medium alternativeGlycolic water up to 30%
Mounting versionFree
Number of ports2
Permissible mediaDistrict heating/cooling circulation water
PN alternative VSP16
Pressure classPN 25
Pressure controllerNo
Pressure nominal [bar]25 bar
Pressure relieve system control valve insertPiston
Product groupPressure flow controllers
REACH Candidate List substancesLead (CAS no. 7439-92-1)
Sealing CV materialEPDM
Sealing DP materialEPDM
Select if the Shock valve should be with a Fixed pressure or AdjustablepressureNone
Stem positionNormally open
Stroke [mm]10 mm
TypeAVQMT
UK RoHS complianceOut of scope
Valve body materialDuctile iron EN-GJS-400-18-LT (GGG 40.3)
Valve cone CV materialDezincing free brass CuZn36Pb2As
Valve cone DP materialDezincing free brass CuZn36Pb2As
Valve seat materialStainless steel, mat. No. 1.4571
Valve sizeDN 40
Actuator diaphragm materialEPDM
ApplicationDistrict Heating
Cavitation factor0.6
Cavitation factor 100%0.34
Cavitation factor 25%0.58
Cavitation factor 50%0.52
Cavitation factor 75%0.5
China RoHS complianceOut of scope
Connection typesFlange
DescriptionAVQMT PN25 40/20 /0,2 flange flow/ret
Diameter [mm]40 mm
Differential pressure range [bar] [Max]16 bar
EU RoHS complianceYes with exemptions
Flow controlYes
Flow limitationYes
Flow rate [m³/h]12 m³/h
Flow rate [m³/h] [Max]12 m³/h
Flow rate [m³/h] [Min]0.8 m³/h
Flow restrictor diff.pressure - dpb [bar]0.2 bar
FunctionFlow and temp. contr. with int. contr. valve
Function VSP - PNo
Function VSP - QNo
Function VSP - TNo
In scope of WEEE and contain batteriesNo
Kvs values [m³/h]20 m³/h
Leakage rate [% Kvs]0.05
Media pH [Max]10
Media pH [Min]7
Media temperature [°C] [Max]150 °C
Media temperature [°C] [Min]2 °C
Medium alternativeGlycolic water up to 30%
Mounting versionFree
Number of ports2
Permissible mediaDistrict heating/cooling circulation water
PN alternative VSP16
Pressure classPN 25
Pressure controllerNo
Pressure nominal [bar]25 bar
Pressure relieve system control valve insertPiston
Product groupPressure flow controllers
REACH Candidate List substancesLead (CAS no. 7439-92-1)
Sealing CV materialEPDM
Sealing DP materialEPDM
Select if the Shock valve should be with a Fixed pressure or AdjustablepressureNone
Stem positionNormally open
Stroke [mm]10 mm
TypeAVQMT
UK RoHS complianceOut of scope
Valve body materialDuctile iron EN-GJS-400-18-LT (GGG 40.3)
Valve cone CV materialDezincing free brass CuZn36Pb2As
Valve cone DP materialDezincing free brass CuZn36Pb2As
Valve seat materialStainless steel, mat. No. 1.4571
Valve sizeDN 40
