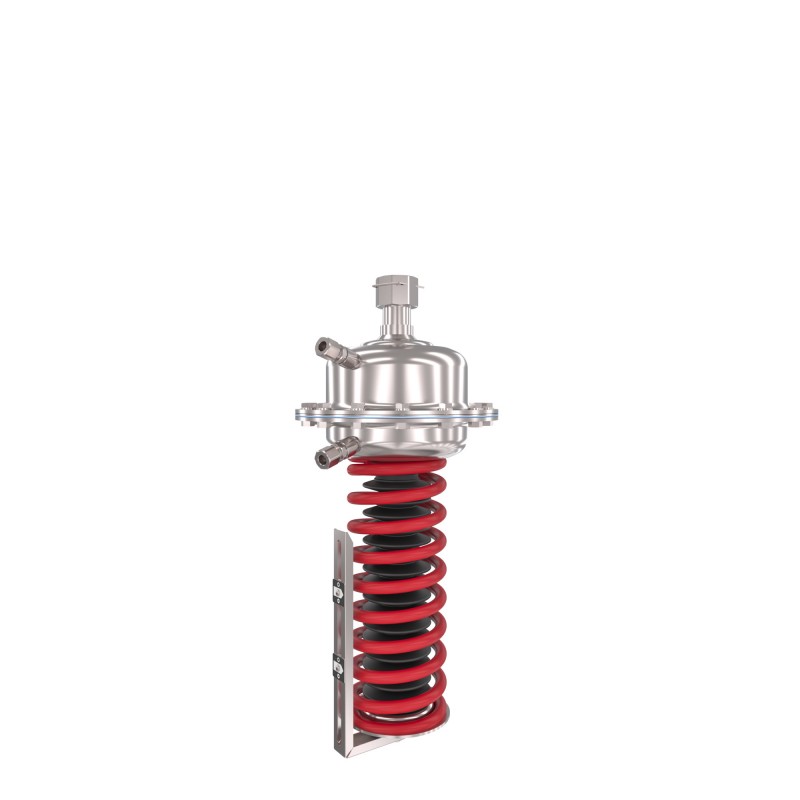

003G5634 DANFOSS HEATING AFD 2 PN40 8-16 32см2 черный
003G5634
DANFOSS HEATING
AFD 2 PN40 8-16 32см2 черный
AFD 2, 8.00 bar - 16.00 bar, 32 cm²
Home > DANFOSS HEATING
Новый продукт в оригинальной упаковке со всеми гарантиями и сертификатами DANFOSS HEATING
Best sellers
▲Описание
▲Pressure reduction actuator
Product details
| Gross weight | 13.5 Kg |
| Net weight | 12.3 Kg |
| Volume | 52.2 Liter |
| EAN | 5710104523200 |
| Gross weight | 13.5 Kg |
| Net weight | 12.3 Kg |
| Volume | 52.2 Liter |
| EAN | 5710104523200 |
| Actuator diaphragm material | EPDM (Rolling, fibre enforced) |
| Actuator size [cm²] | 32 cm² |
| Application | District heating and cooling |
| Body material | Steel, mat. No. 1.0345, zinc plated |
| Description | Pressure reduction actuator |
| Diameter [mm] [Max] | 125 mm |
| Diameter [mm] [Min] | 65 mm |
| Differential pressure setting [bar] [Max] | 16 bar |
| Differential pressure setting [bar] [Min] | 8 bar |
| Flow control | No |
| Flow limitation | No |
| Function | Press. reduction controller |
| In scope of WEEE and contain batteries | No |
| Media pH [Max] | 10 |
| Media pH [Min] | 7 |
| Media temperature [°C] [Max] | 150 °C |
| Media temperature [°C] [Min] | 2 °C |
| Medium alternative | Glycolic water up to 30% |
| Mounting version | Flow |
| Operating pressure [bar] [Max] | 40 bar |
| Permissible media | District heating/cooling circulation water |
| Pressure controller | Press. reduction controller |
| Pressure nominal [bar] | 40 bar |
| Pressure setting range [bar] [Max] | 16 bar |
| Pressure setting range [bar] [Min] | 8 bar |
| Product group | Actuators - Pressure Flow |
| Setting Type | Adjustable |
| Type | AFD 2 |
| Actuator diaphragm material | EPDM (Rolling, fibre enforced) |
| Actuator size [cm²] | 32 cm² |
| Application | District heating and cooling |
| Body material | Steel, mat. No. 1.0345, zinc plated |
| Description | Pressure reduction actuator |
| Diameter [mm] [Max] | 125 mm |
| Diameter [mm] [Min] | 65 mm |
| Differential pressure setting [bar] [Max] | 16 bar |
| Differential pressure setting [bar] [Min] | 8 bar |
| Flow control | No |
| Flow limitation | No |
| Function | Press. reduction controller |
| In scope of WEEE and contain batteries | No |
| Media pH [Max] | 10 |
| Media pH [Min] | 7 |
| Media temperature [°C] [Max] | 150 °C |
| Media temperature [°C] [Min] | 2 °C |
| Medium alternative | Glycolic water up to 30% |
| Mounting version | Flow |
| Operating pressure [bar] [Max] | 40 bar |
| Permissible media | District heating/cooling circulation water |
| Pressure controller | Press. reduction controller |
| Pressure nominal [bar] | 40 bar |
| Pressure setting range [bar] [Max] | 16 bar |
| Pressure setting range [bar] [Min] | 8 bar |
| Product group | Actuators - Pressure Flow |
| Setting Type | Adjustable |
| Type | AFD 2 |
Datasheet - PDF
